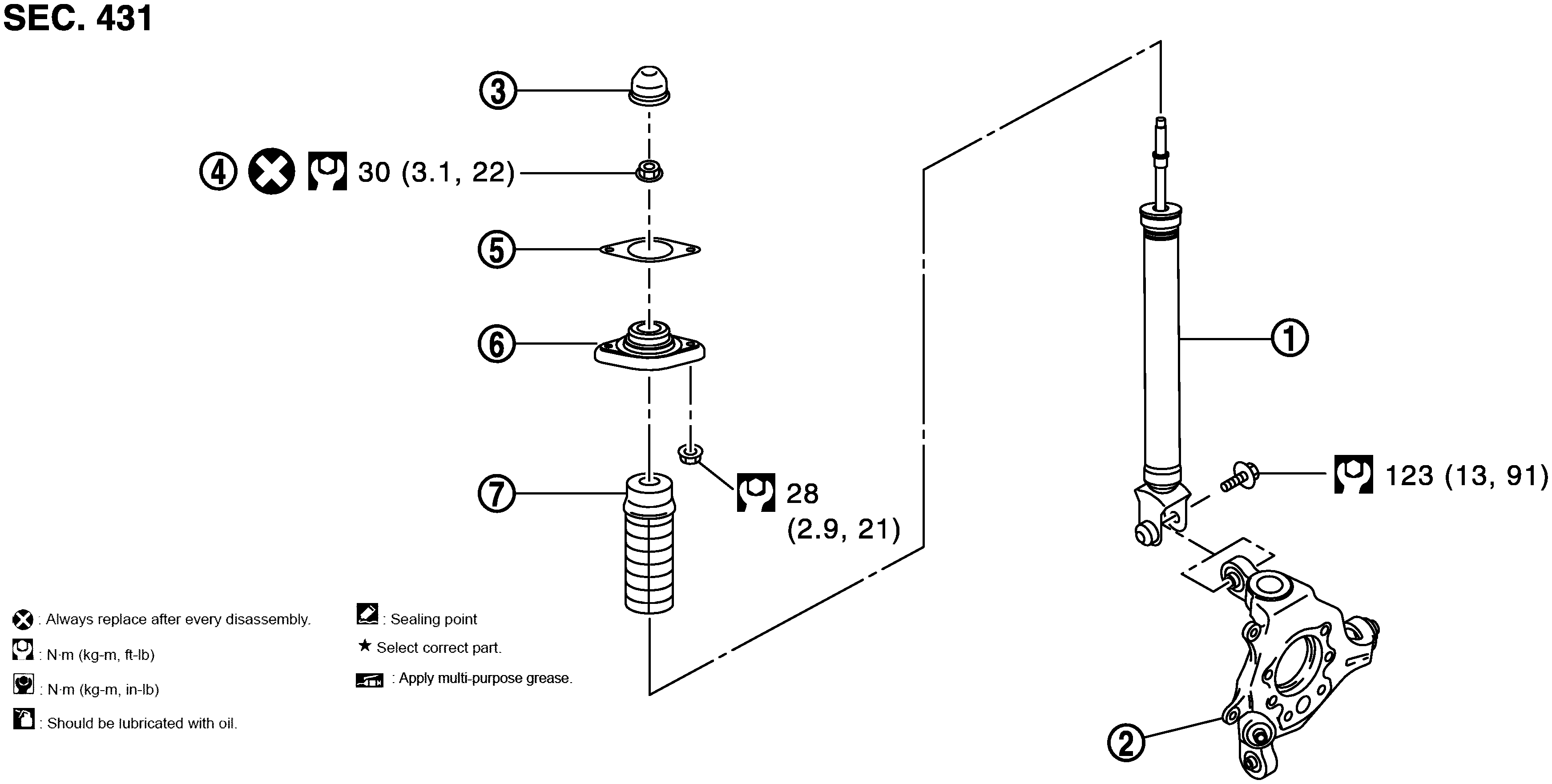

REAR SHOCK ABSORBER : Exploded View

Fig 1: Rear Shock Absorber With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Shock absorber	2.	Axle housing	3.	Cap
4.	Piston rod lock nut	5.	Mounting seal	6.	Shock absorber mounting bracket
7.	Bound bumper cover
Refer to HOW TO USE THIS INFORMATION : Repair Information . for symbols in the figure.
