RADIUS ROD : Exploded View

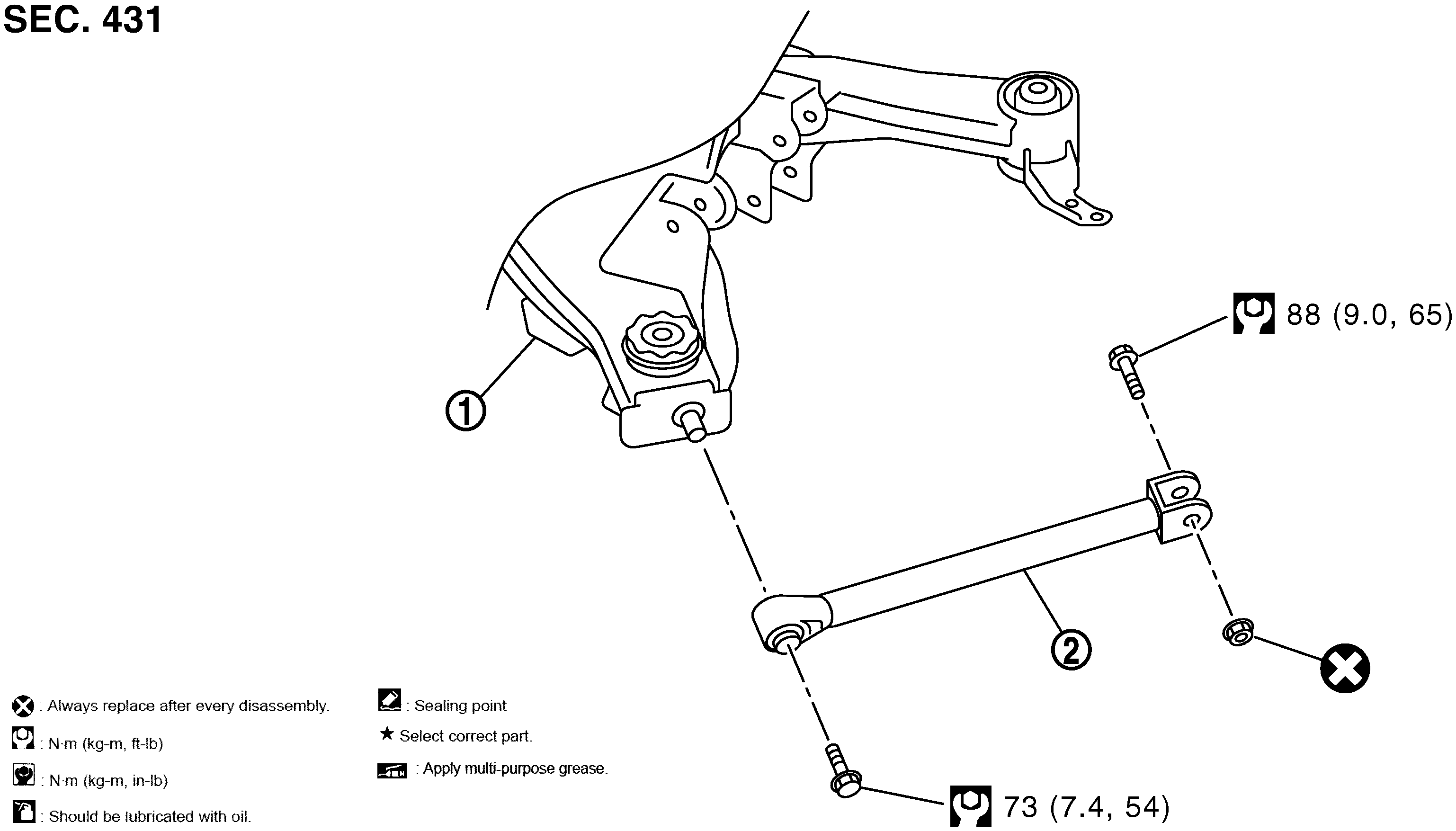

Fig 1: Radius Rod With Torque Specifications
GNSJPEIB0092GB-092Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rear suspension member

2.

Radius rod

Refer to HOW TO USE THIS INFORMATION : Repair Information . for symbols in the figure.
