FRONT LOWER LINK : Exploded View

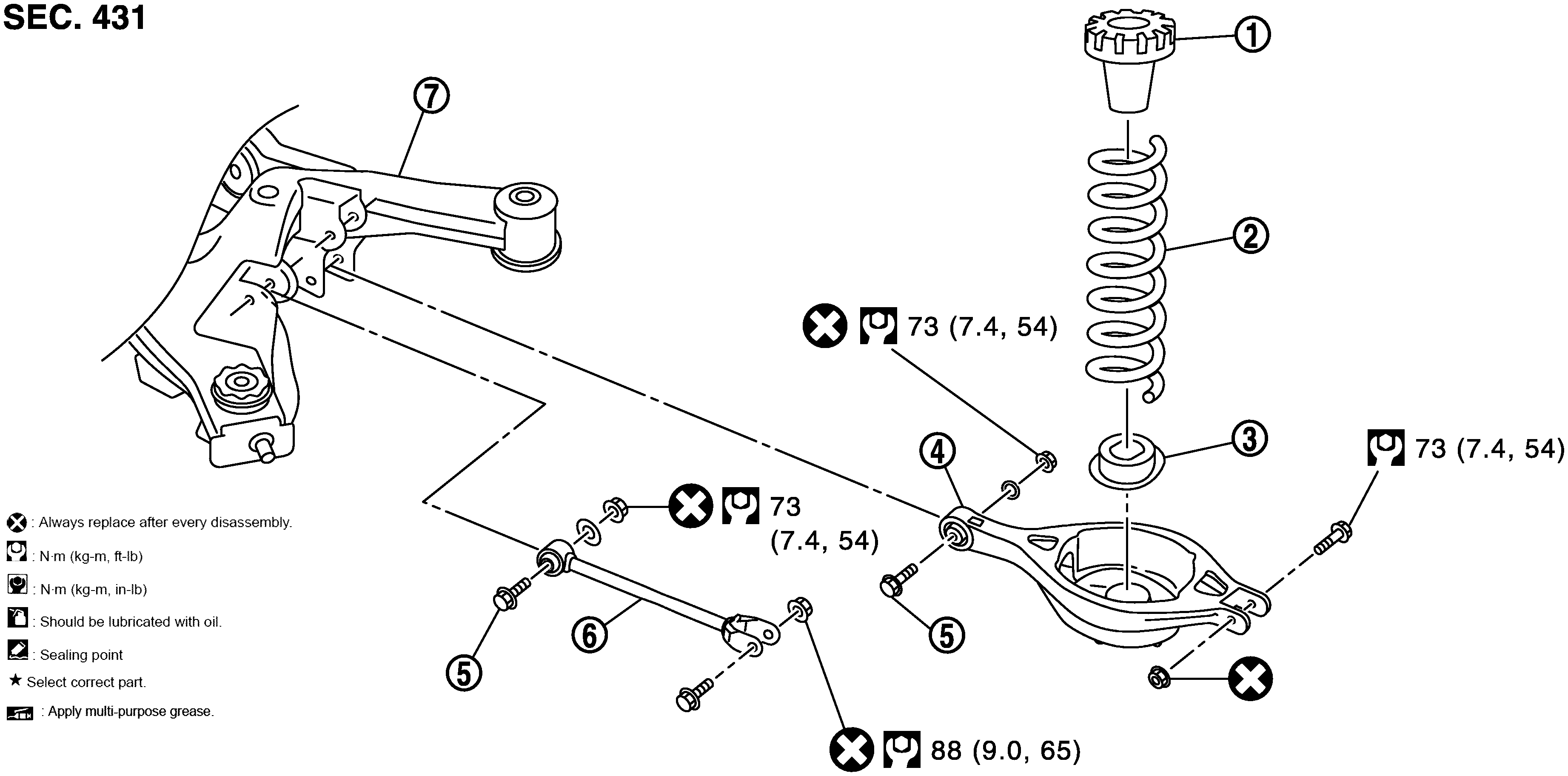

Fig 1: Front Lower Link With Torque Specifications
GNSJPEIB0150GB-150Courtesy of NISSAN NORTH AMERICA, INC.

1.

Upper seat

2.

Coil spring

3.

Rubber seat

4.

Rear lower link

5.

Adjusting bolt

6.

Front lower link

7.

Rear suspension member

Refer to HOW TO USE THIS INFORMATION : Repair Information . for symbols in the figure.
