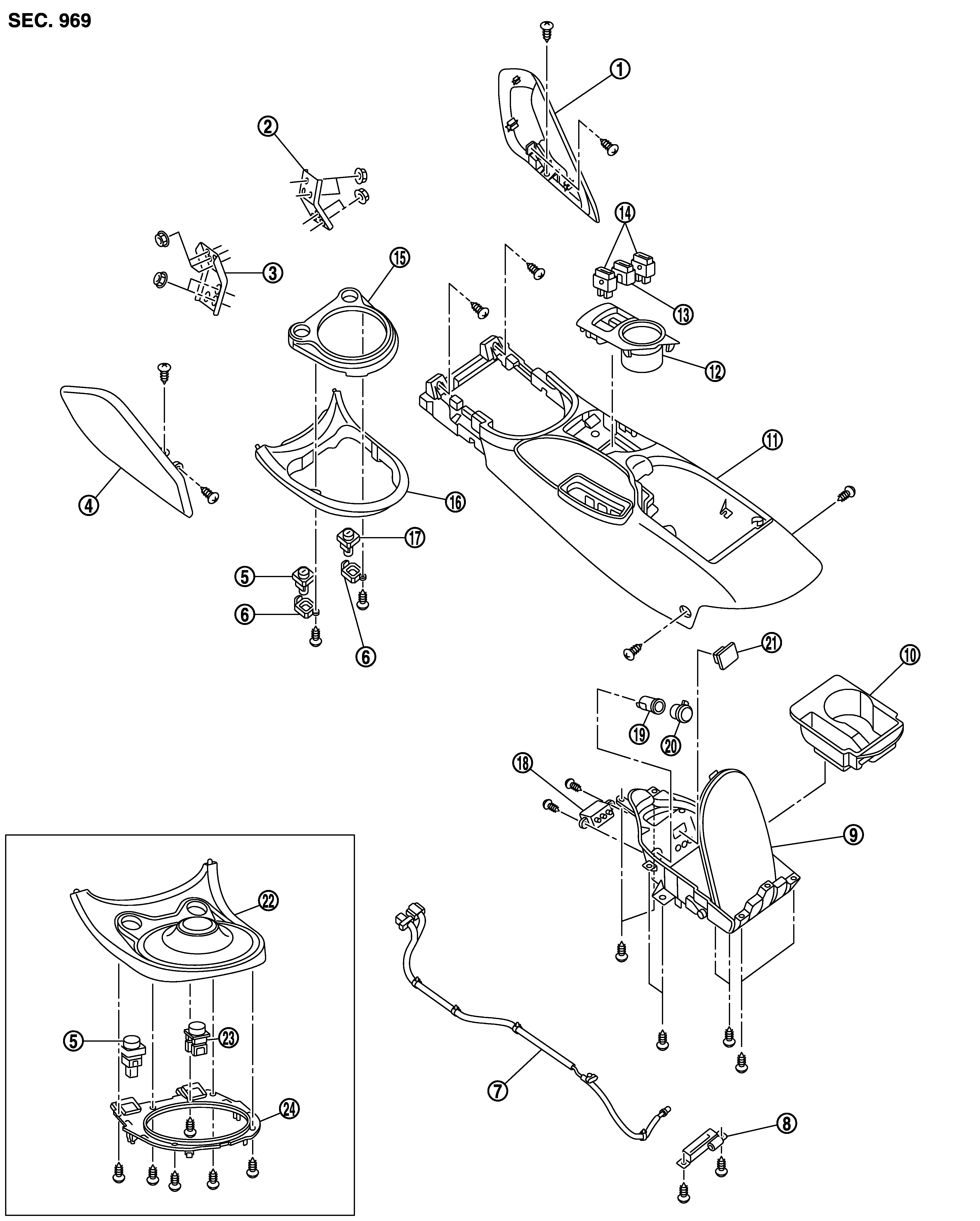

CENTER CONSOLE ASSEMBLY : Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Console panel RH	2.	Instrument stay RH	3.	Instrument stay LH
4.	Console panel LH	5.	Hazard switch	6.	Switch bracket
7.	Console sub-harness	8.	Inside key antenna	9.	Console pocket assembly
10.	Console tray assembly	11.	Center console assembly	12.	Cup holder assembly
13.	Switch hole mask	14.	Heated seat switch	15.	Console finisher ring (A/T models)
16.	Console finisher assembly (A/T models)	17.	Switch hole mask	18.	Auxiliary input jacks
19.	Power socket inner case	20.	Power socket cap	21.	USB connector
22.	Console finisher assembly (M/T models)	23.	Switch hole mask or S-MODE switch	24.	Console finisher bracket
