Removal and Installation: Removal

  1. Remove the instrument side finisher LH (1) using a suitable tool.
    GNSDB122739Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove the hood and fuel filler handle assembly from the instrument lower panel LH. Refer to Removal and Installation .

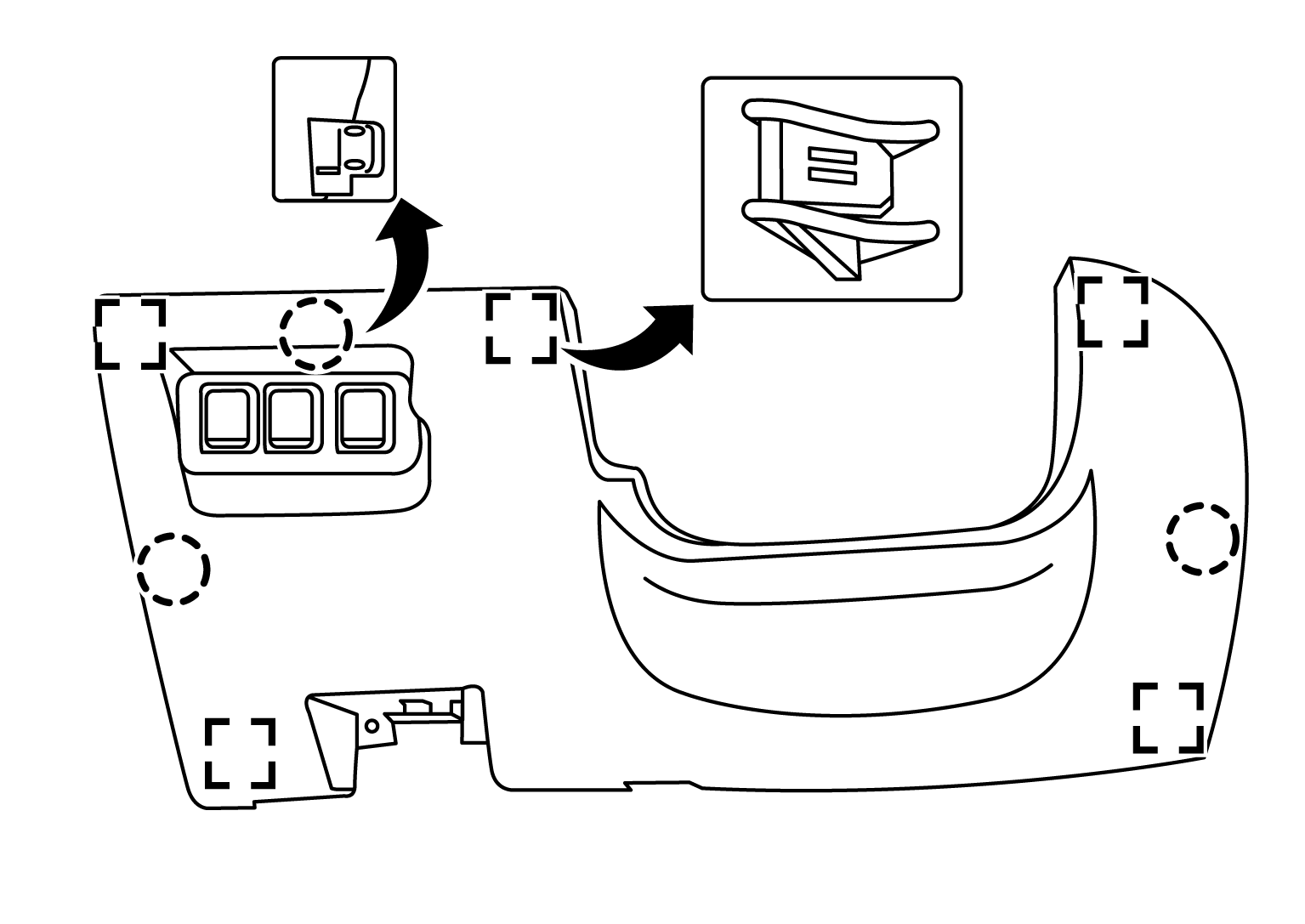

  3. Release the instrument lower panel LH clips and pawls using a suitable tool.
    GNSALJIA1048Z-048Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

    SYMBOL : Pawl

  4. Disconnect the harness connectors from the instrument lower panel LH and remove.
