Removal and Installation: Removal

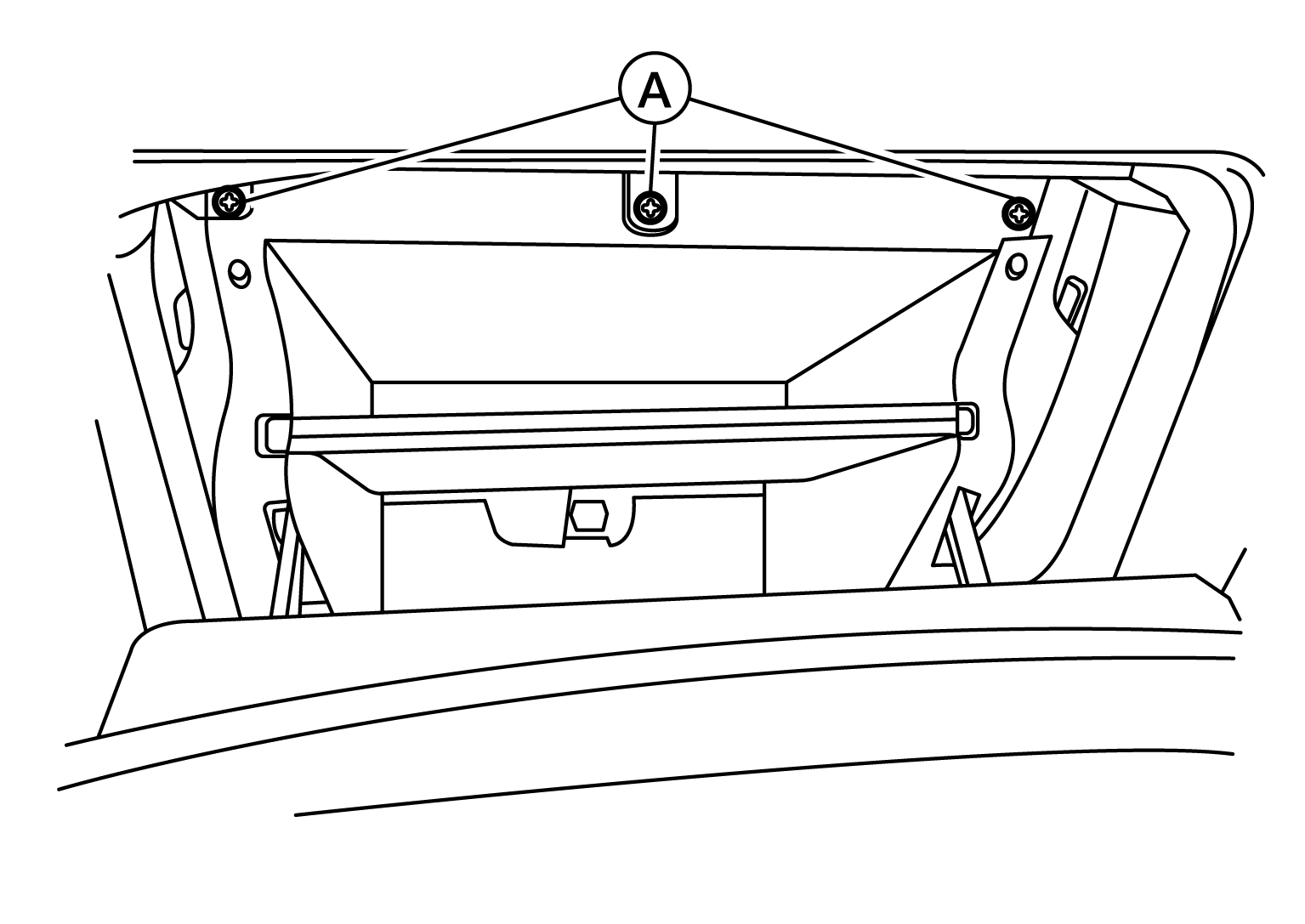

  1. Remove the glove box assembly upper screws (A).
    GNSALJIA1049Z-049Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove the instrument lower panel RH (1).
    GNSDB121570Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove the instrument lower panel RH screw (A).
    2. Release the metal clips (B) using a suitable tool, then remove the instrument lower panel RH.

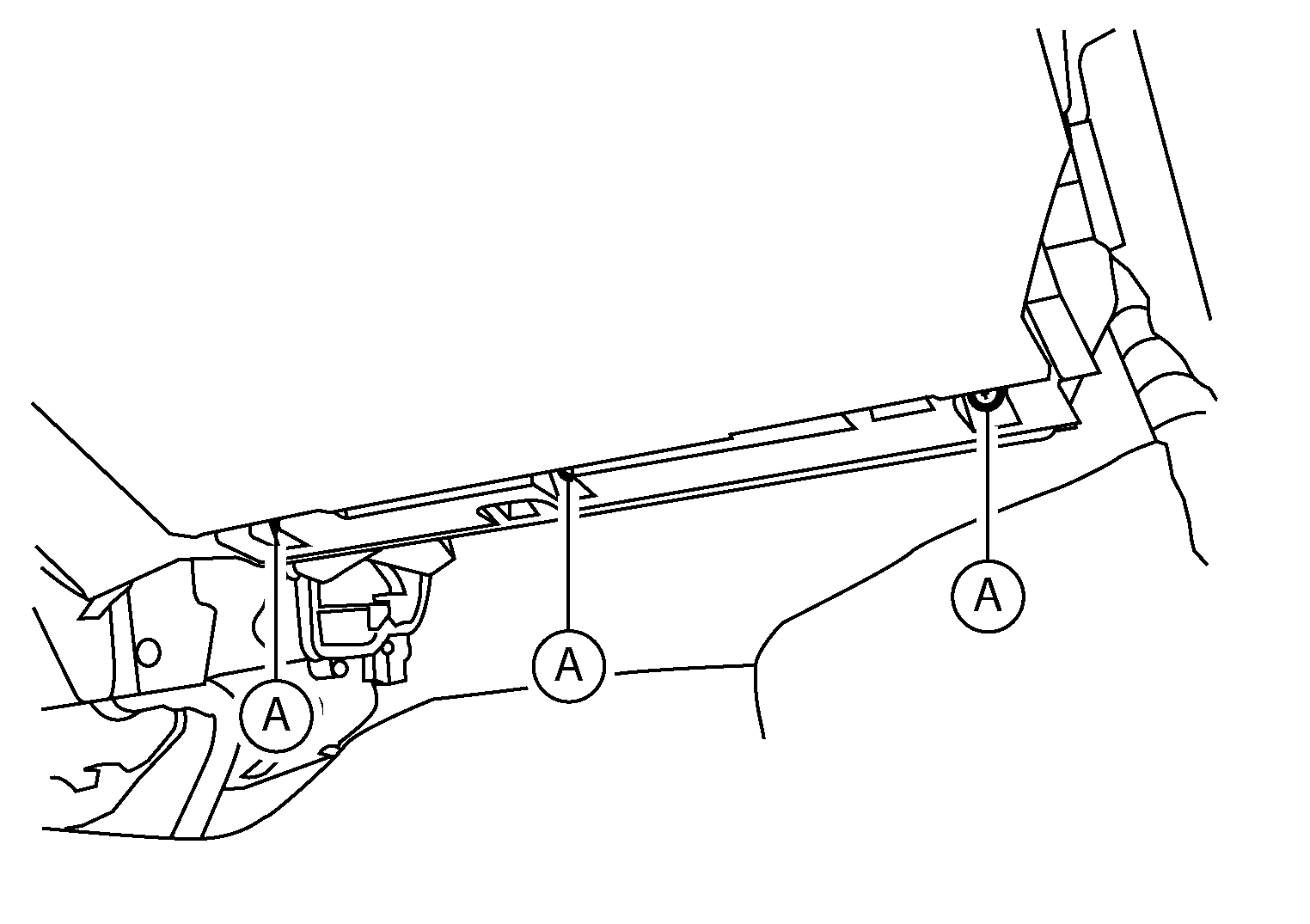

  3. Remove the glove box assembly lower screws (A).
    GNSALJIA0021Z-021Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the glove box assembly.
