Removal and Installation: Removal

  1. Remove the instrument lower panel LH. Refer to Removal and Installation .
  2. Release cluster lid A clips and pawls using a suitable tool.

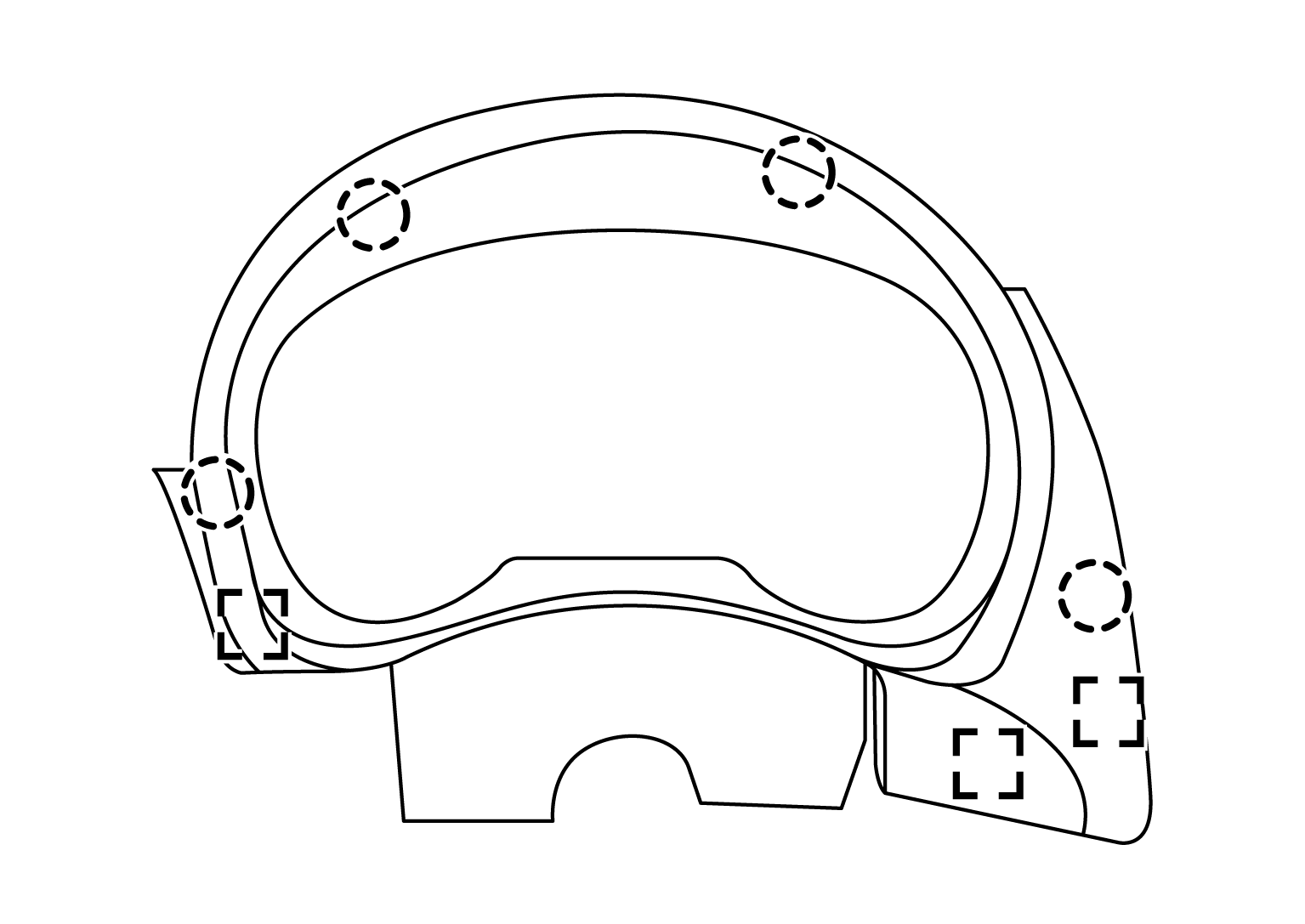

    GNSDB124323Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

    SYMBOL : Metal clip

  3. Remove cluster lid A.
