Removal and Installation: Removal

  1. Remove the center console side finishers (1) (LH/RH).

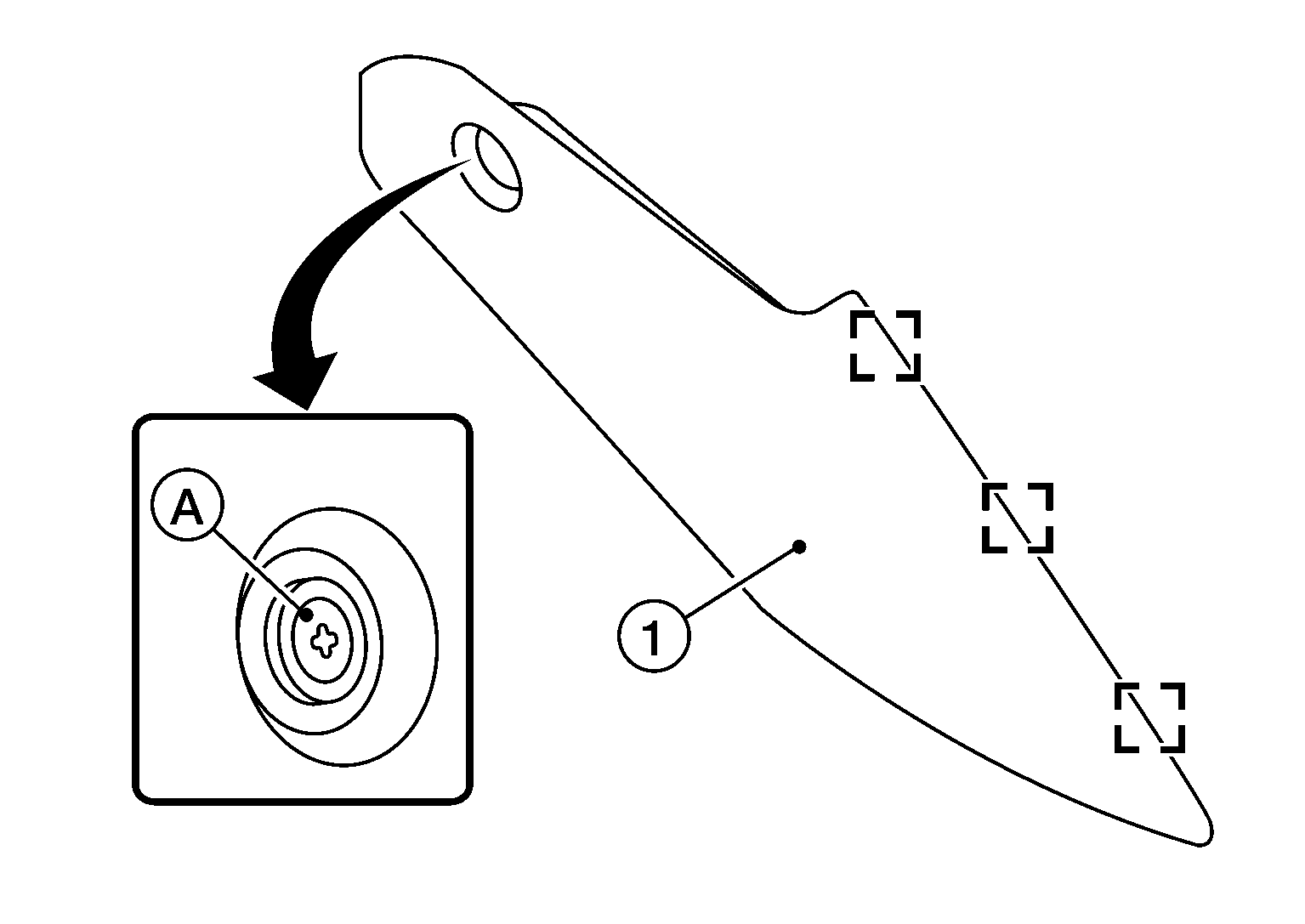

    1. Remove the center console side finisher screw cover.
    2. Remove the center console side finisher screw (A) (LH/RH).
      GNSALJIA1037Z-037Courtesy of NISSAN NORTH AMERICA, INC.
    3. Release the clips using a suitable tool, then remove the center console side finisher.

      SYMBOL : Metal clip

  2. Remove shift selector finisher using the following steps;
    • For CVT models.
      • Slide the knob cover (1) down.
        GNSJSDIA3654Z-654Courtesy of NISSAN NORTH AMERICA, INC.
      • Pull out the lock pin (2).
      • Pull the shift selector knob (3) and knob cover upwards to remove.
      • Remove cluster lid C lower. Refer to Removal and Installation .

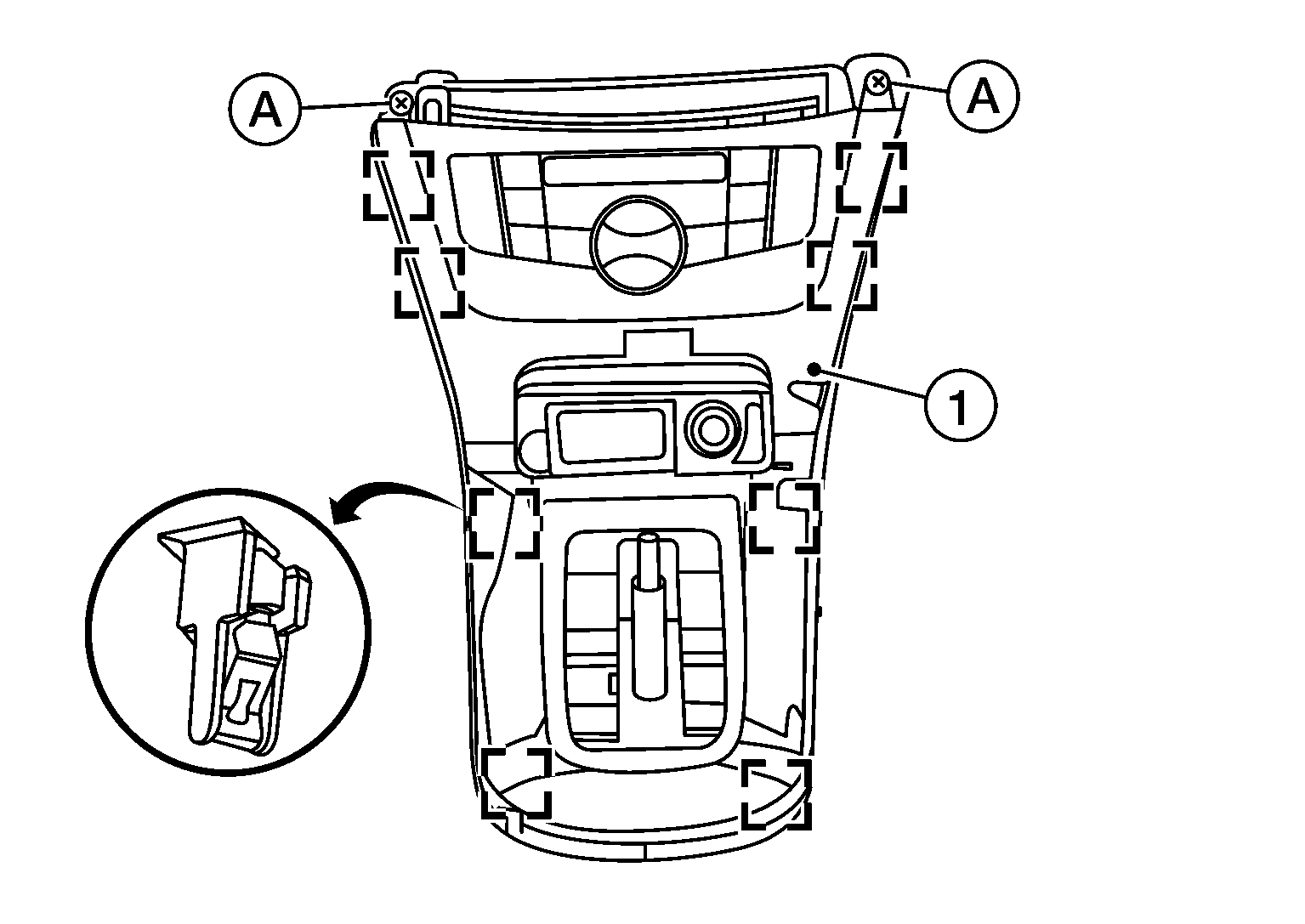

      • Remove the shift selector finisher {CVT (1)] screws (A).
        GNSALJIA1038Z-038Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL : Metal clip

      • Release the clips using a suitable tool, then remove the shift selector finisher (CVT).
    • For M/T models.
      • Remove shift selector knob by pulling straight up.
        CAUTION:
        • Do not rotate shift selector knob while removing or damage will occur.
        • Do not reuse shift selector knob.

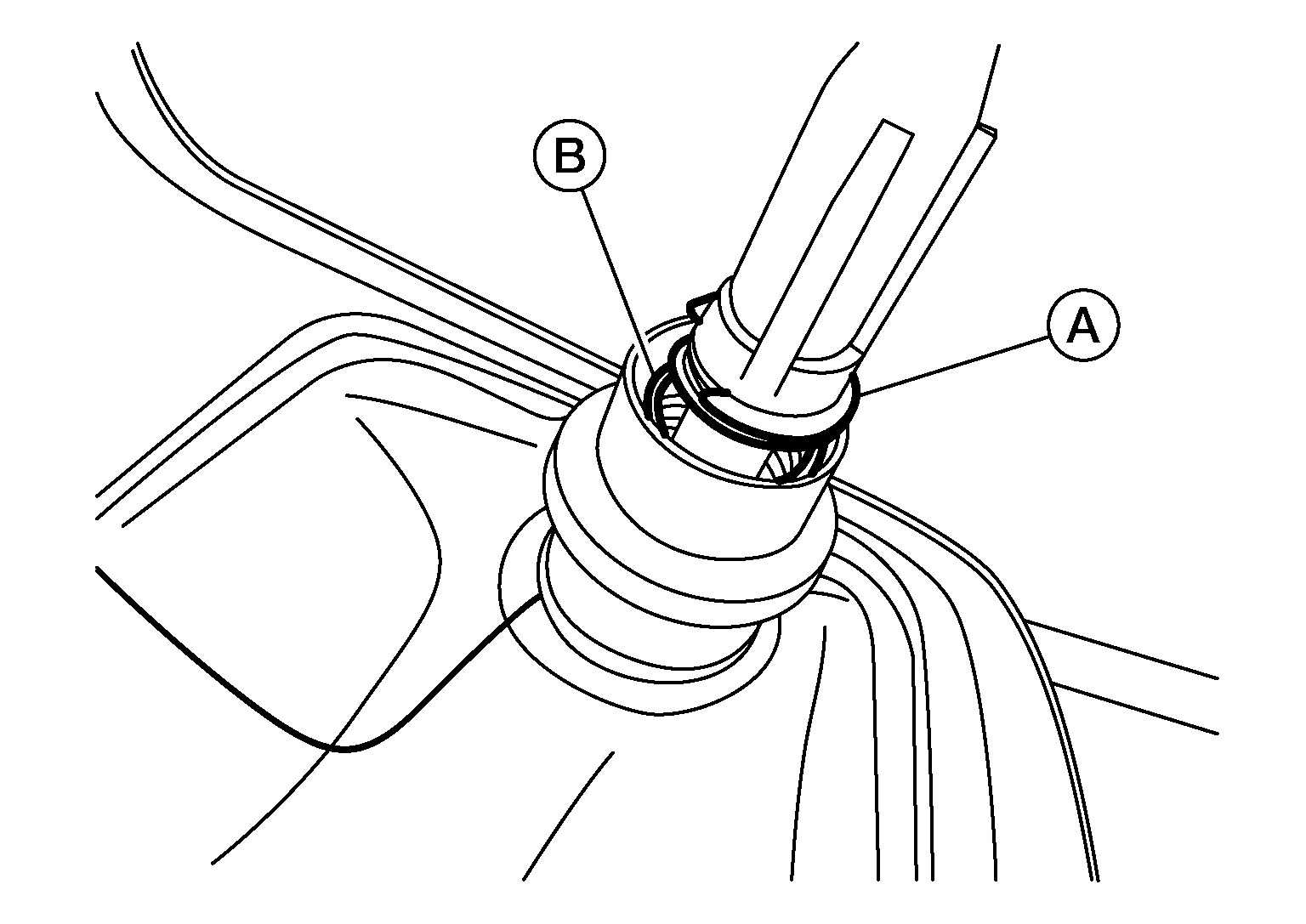

      • Remove clip (A) and then remove spring (B) from shift selector assembly.
        GNSALDIA0214Z-214Courtesy of NISSAN NORTH AMERICA, INC.
        WARNING:
        • Wear eye protection while removing clip and spring.
        • Be careful while removing clip and spring as spring is under tension.
      • Remove cluster lid C. Refer to Removal and Installation .

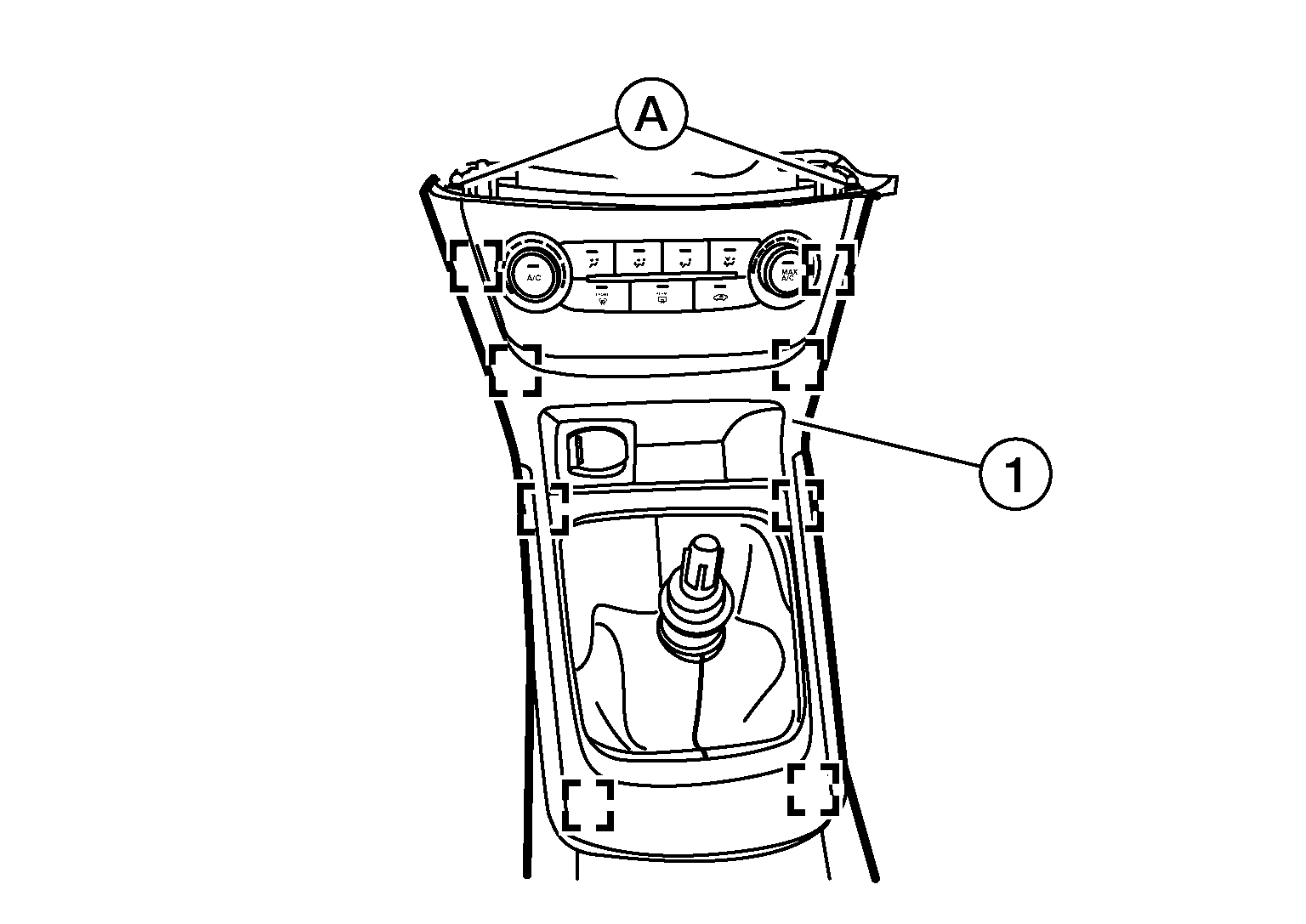

      • Remove the shift selector finisher [Manual (1)] screws (A).
        GNSALDIA0215Z-215Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL : Metal clip

      • Release the clips using a suitable tool, then remove the shift selector finisher (Manual).

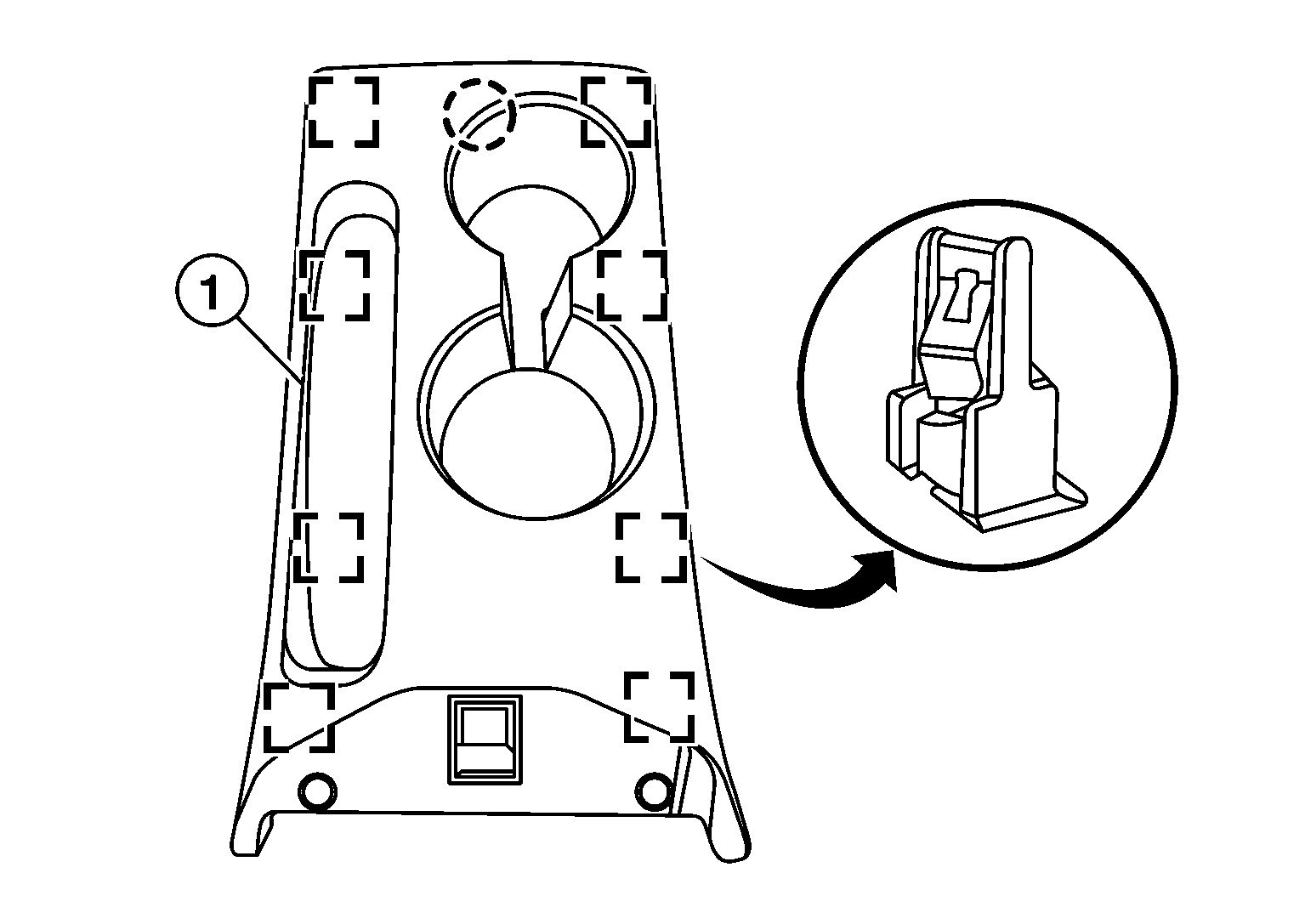

  3. Release the center console cup holder finisher clips and pawl, then remove the center console cup holder finisher (1).
    GNSAWJIA1280Z-280Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

    SYMBOL : Metal clip

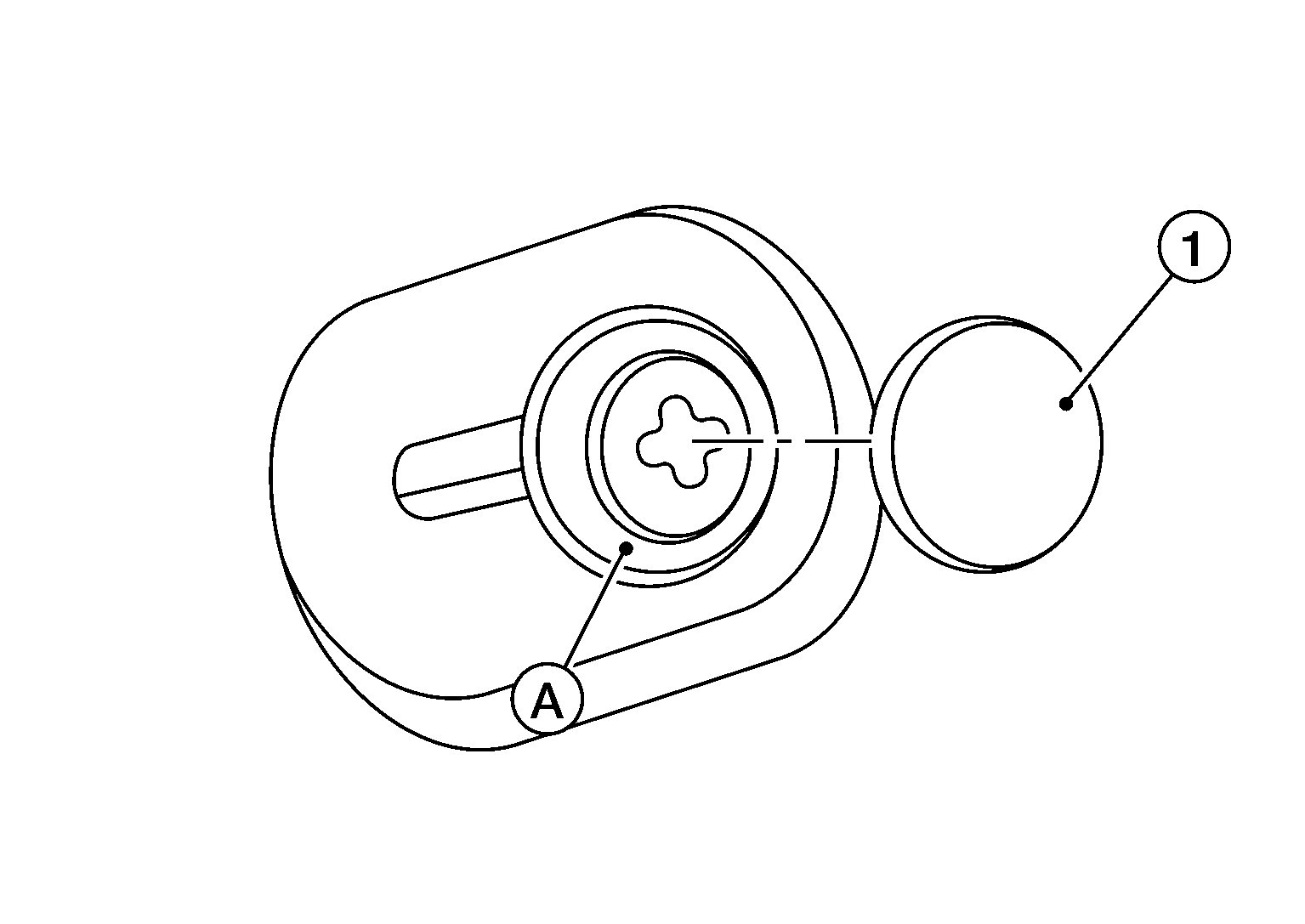

  4. Remove the center console screw cover (1) using a suitable tool and the center console screws (A) (LH/RH).
    GNSDB113490Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove the console rear finisher.
    1. Release the center console rear finisher cover pawls using a suitable tool, then remove the center console rear finisher cover (1).
      GNSAWJIA0099Z-099Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL : Pawl

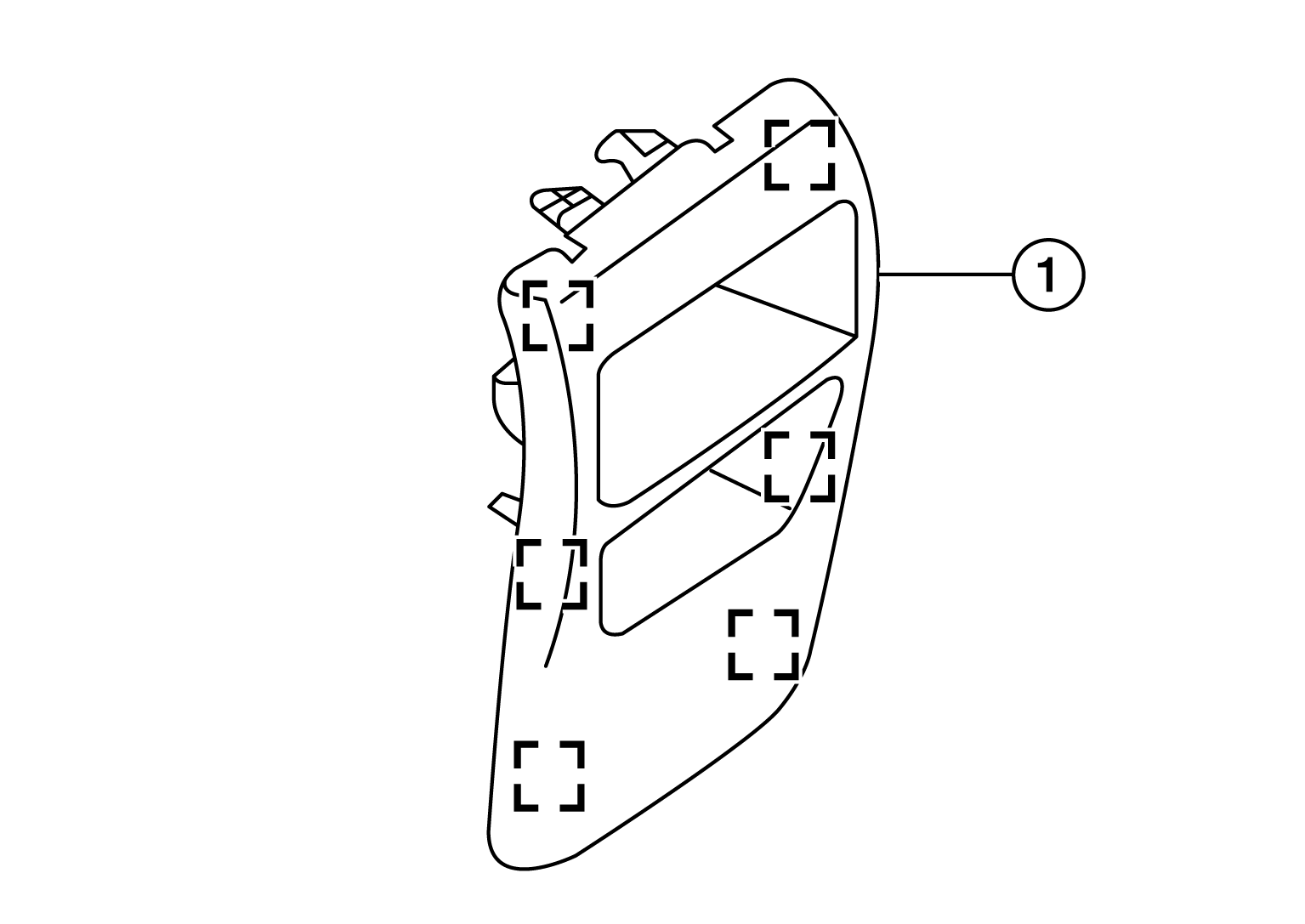

    2. Release the center console rear finisher clips using a suitable tool, then remove the center finisher (1).
      GNSALJIA1042Z-042Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL : Metal clip

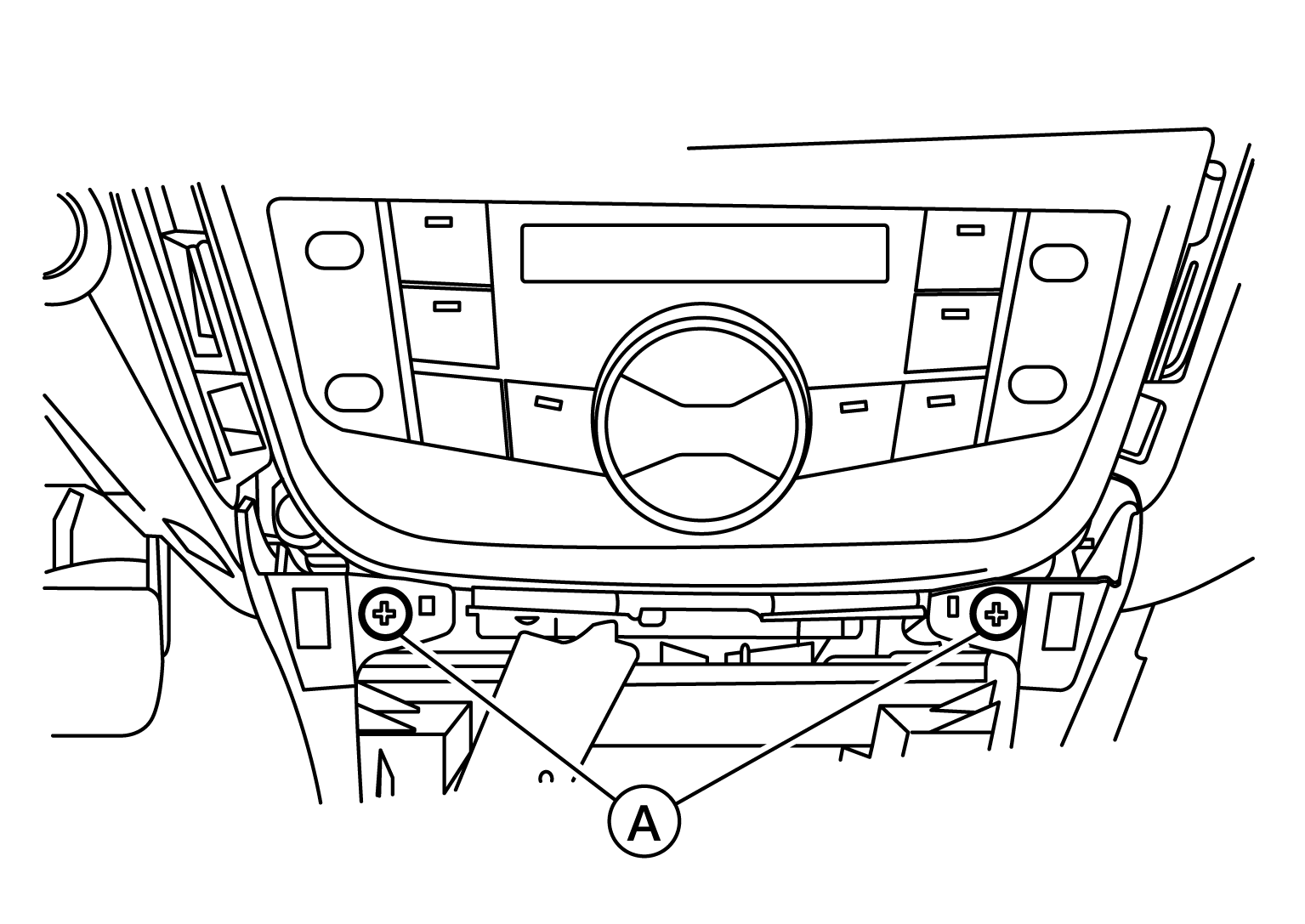

  6. Remove the remaining center console screws (A).
    GNSALJIA1043Z-043Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove the A/C switch assembly. Refer to Removal and Installation (MANUAL A/C), or Removal and Installation (AUTOMATIC A/C).
  8. Disconnect the harness connectors from the center console assembly and remove.
