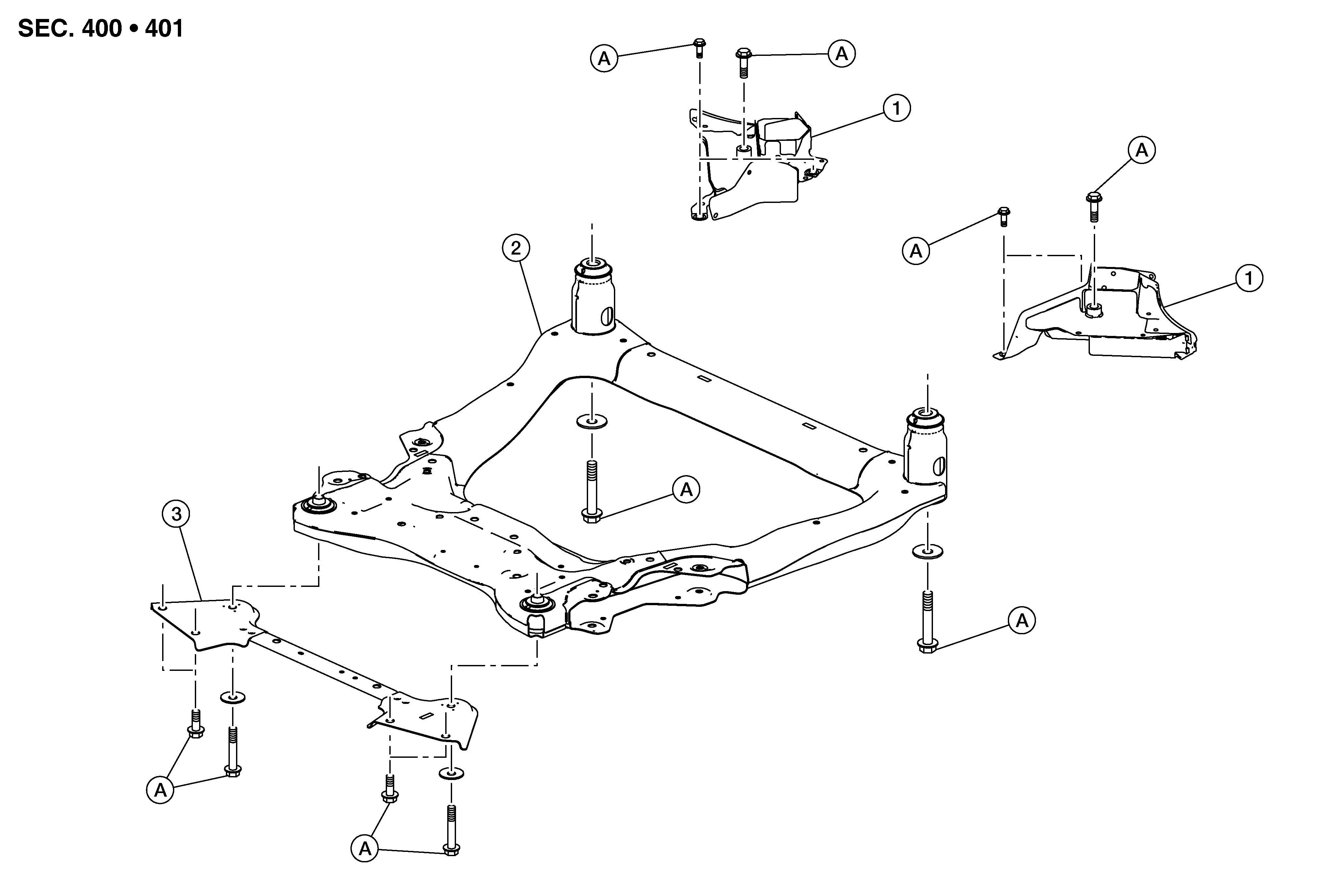

FRONT SUSPENSION MEMBER : Exploded View

GNSAWEIA0050Z-050Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front suspension member spacer

2.

Front suspension member

3.

Front suspension member stay

A.

Refer to Removal and Installation  (FWD) or Removal and Installation (AWD).
