FRONT STABILIZER : Exploded View

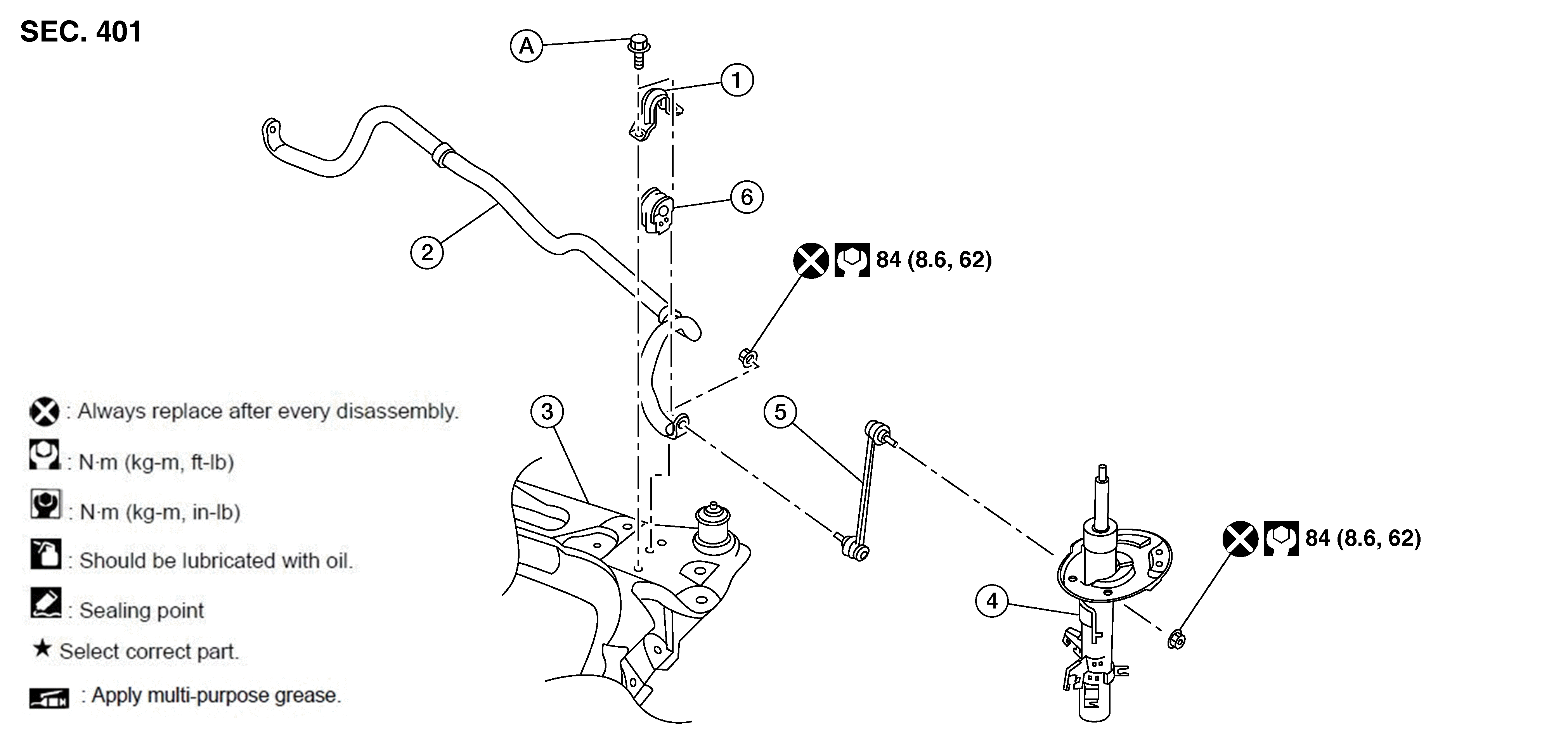

Fig 1: Front Stabilizer With Torque Specifications
GNSAWEIA0046Z-046Courtesy of NISSAN NORTH AMERICA, INC.

1.

Stabilizer bar clamp

2.

Stabilizer bar

3.

Front suspension member

4.

Strut

5.

Stabilizer bar connecting rod

6.

Stabilizer bar bushing

A.

Refer to FRONT STABILIZER : Removal & Installation .
