Altima Edition ONE
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Heater & Air Conditioning System
>>
Removal And Installation
>>
Condenser
>>

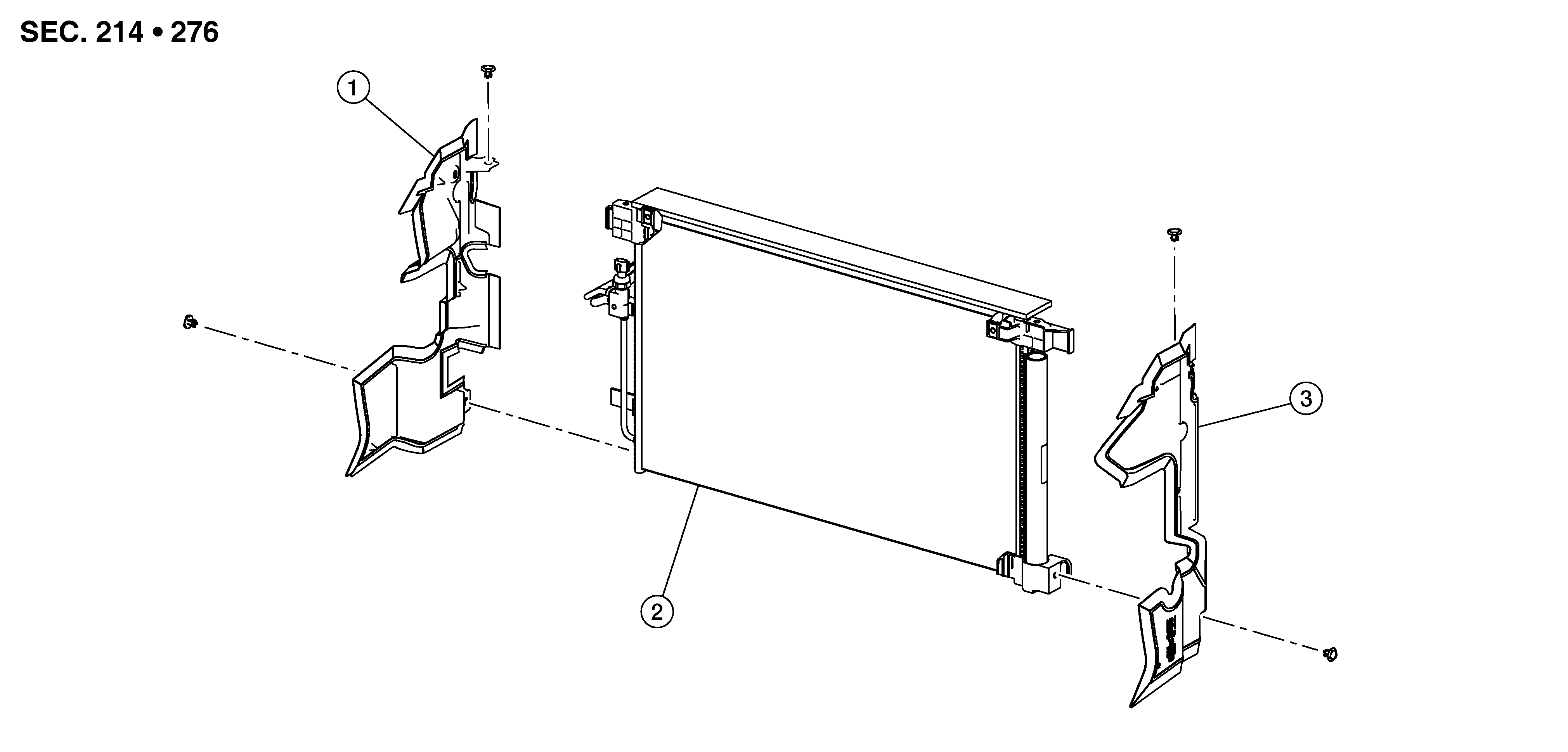

CONDENSER : Exploded View
CONDENSER : Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Air guide (RH)
2.
Condenser
3.
Air guide (LH)
Courtesy of NISSAN NORTH AMERICA, INC.
