PR25DD engine
- CHECK DTC PRIORITY
If DTC P0365 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
Is applicable DTC detected?
YES
Perform diagnosis of applicable. DTC Description
NO
GO TO 2.
- CHECK STARTING SYSTEM
Turn ignition switch to START position.
Does the engine turn over? Does the starter motor operate?
YES
GO TO 3.
NO
Check starting system. Refer to Work Flow .
- CHECK EXHAUST CAMSHAFT POSITION SENSOR POWER SUPPLY CIRCUIT-1
- Turn ignition switch OFF.
- Disconnect exhaust camshaft position sensor harness connector.
- Turn ignition switch ON.
- Check the voltage between exhaust camshaft position sensor harness connector terminals.
Exhaust camshaft position sensor
Voltage
(Approx.)
Connector
+
-
Terminals
F58
1
2
5 V
Is the inspection result normal?
YES
GO TO 9.
NO
GO TO 4.
- CHECK EXHAUST CAMSHAFT POSITION SENSOR POWER SUPPLY CIRCUIT-2
Check the voltage between exhaust camshaft position sensor harness connector and ground.
+
-
Voltage
(Approx.)
Exhaust camshaft position sensor
Connector
Terminal
F58
1
Ground
5 V
Is the inspection result normal?
YES
GO TO 7.
NO
GO TO 5.
- CHECK EXHAUST CAMSHAFT POSITION SENSOR POWER SUPPLY CIRCUIT-3
- Turn ignition switch OFF.
- Disconnect ECM harness connector.
- Check the continuity between exhaust camshaft position sensor harness connector and ECM harness connector.
+
-
Continuity
Exhaust camshaft position sensor
ECM
Connector
Terminal
Connector
Terminal
F58
1
F91
28
Existed
Is the inspection result normal?
YES
GO TO 6.
NO
Repair or replace error-detected parts.
- CHECK SENSOR POWER SUPPLY 1 CIRCUIT
Is the inspection result normal?
YES
INSPECTION END
NO
Replace malfunctioning parts.
- CHECK EXHAUST CAMSHAFT POSITION SENSOR GROUND CIRCUIT
- Turn ignition switch OFF.
- Disconnect ECM harness connector.
- Check the continuity between exhaust camshaft position sensor harness connector and ECM harness connector.
+
-
Continuity
Exhaust camshaft position sensor
ECM
Connector
Terminal
Connector
Terminal
F58
2
F91
30
Existed
- Also check harness for short to power.
Is the inspection result normal?
YES
GO TO 8.
NO
Repair or replace error-detected parts.
- CHECK ECM GROUND CIRCUIT
Check the continuity between ECM harness connector and ground.
ECM
Ground
Continuity
Connector
Terminal
F91
5
Ground
Existed
65
F90
69
70
E31
157
159
162
Is the inspection result normal?
YES
INSPECTION END
NO
Repair or replace error-detected parts.
- CHECK EXHAUST CAMSHAFT POSITION SENSOR INPUT SIGNAL CIRCUIT
- Check the continuity between exhaust camshaft position sensor harness connector and ECM harness connector.
+
-
Continuity
Exhaust camshaft position sensor
ECM
Connector
Terminal
Connector
Terminal
F58
3
F91
29
Existed
- Also check harness for short to power.
Is the inspection result normal?
YES
GO TO 10.
NO
Repair or replace error-detected parts.
- Check the continuity between exhaust camshaft position sensor harness connector and ECM harness connector.
- CHECK EXHAUST CAMSHAFT POSITION SENSOR
Refer to Component Inspection .
Is the inspection result normal?
YES
GO TO 11.
NO
Replace exhaust camshaft position sensor. Refer to CAMSHAFT : Exploded View .
- CHECK CAMSHAFT (EXT)
Check the following.

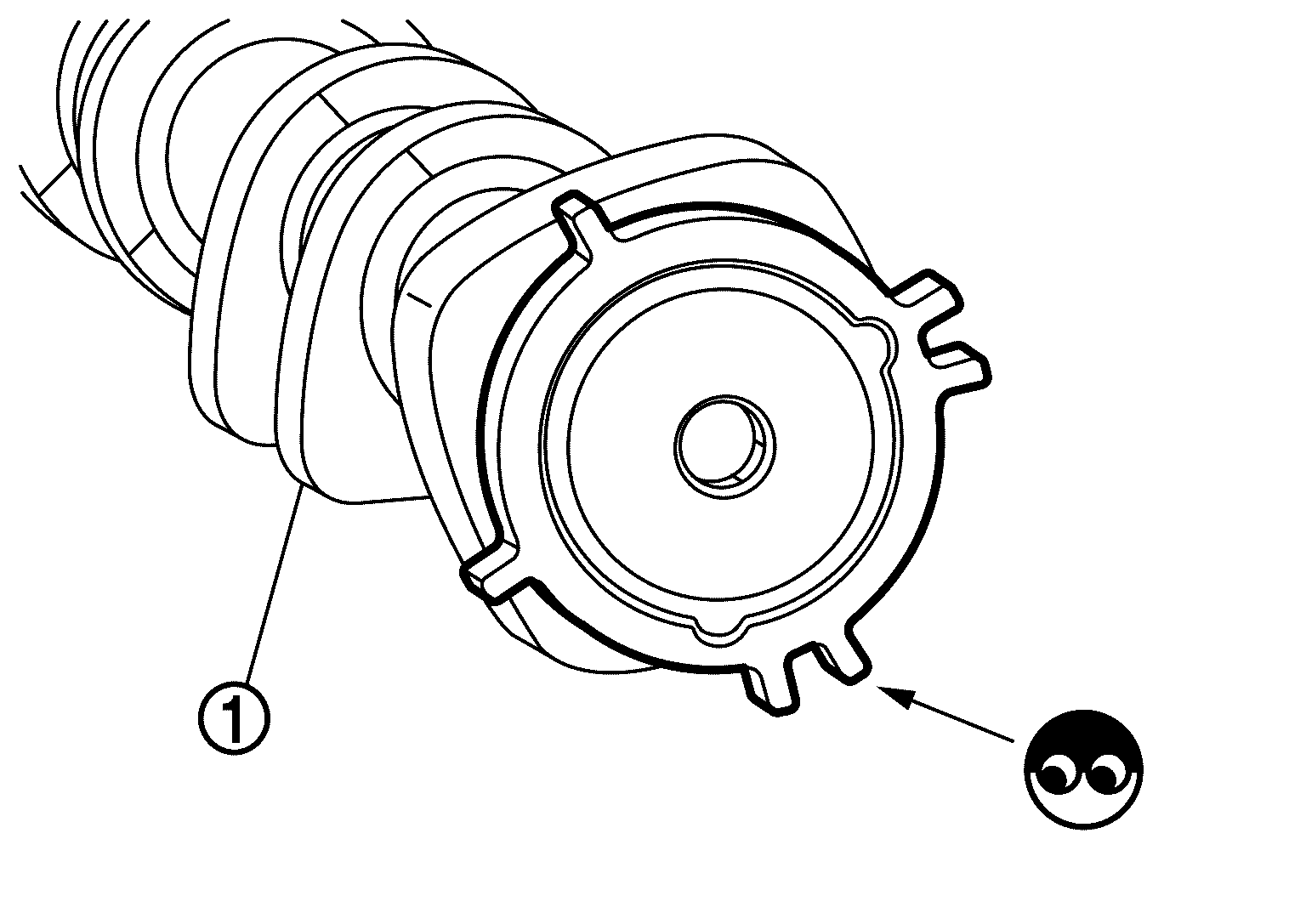

- Accumulation of debris to the signal plate of camshaft rear end
- Chipping signal plate of camshaft rear end
Is the inspection result normal?
YES
INSPECTION END
NO
Remove debris and clean the signal plate of camshaft rear end or replace camshaft. Refer to CAMSHAFT : Exploded View .
- Accumulation of debris to the signal plate of camshaft rear end
