Section 8 (Engine Control System (DTC/Circuit Diagnosis) (Pr25DD) (1 Of 4))
>>
DTC/Circuit Diagnosis
>>
Trouble Diagnosis - Specification Value
>>
Diagnosis Procedure
>>
PR25DD engine
>>

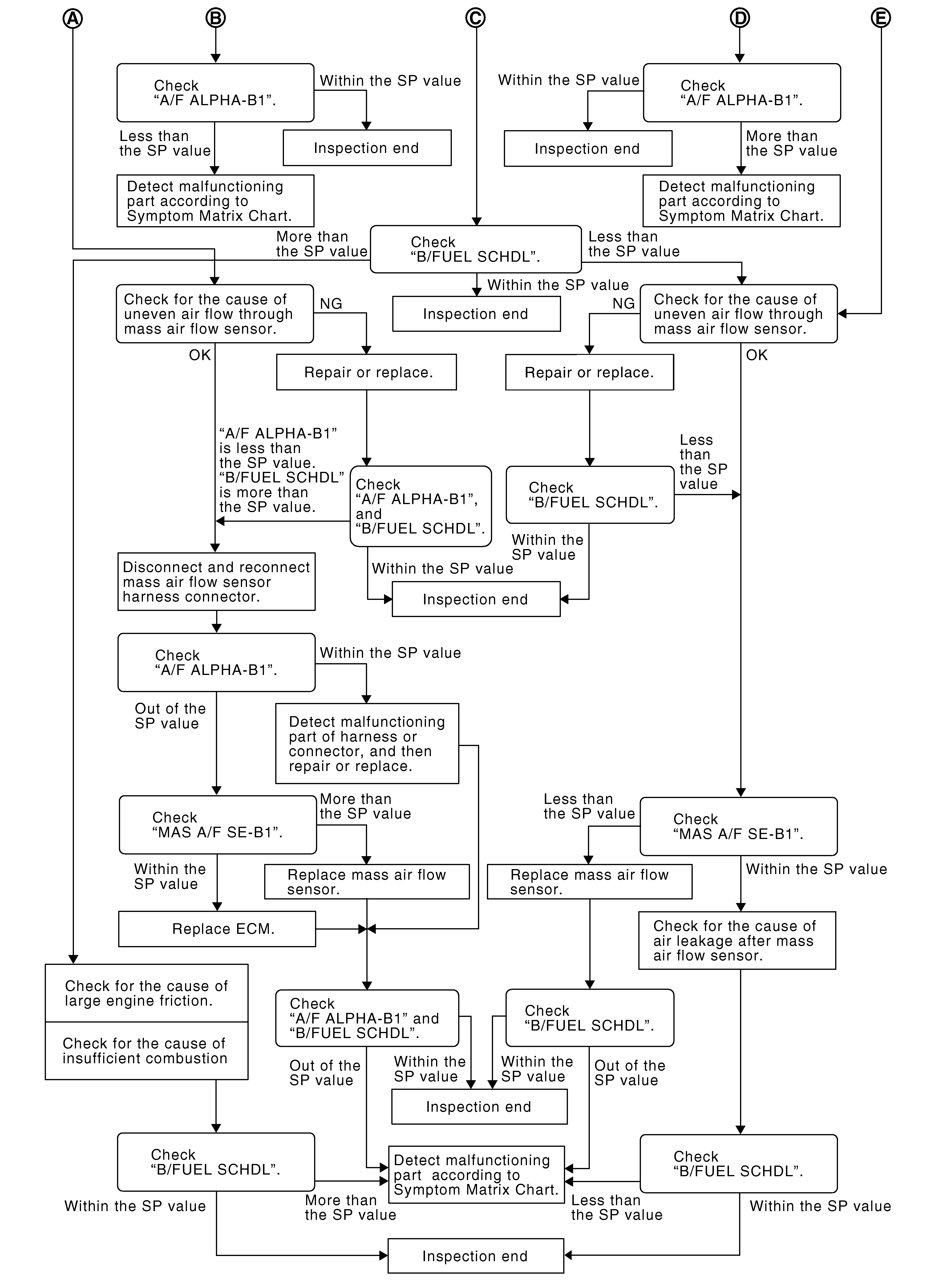

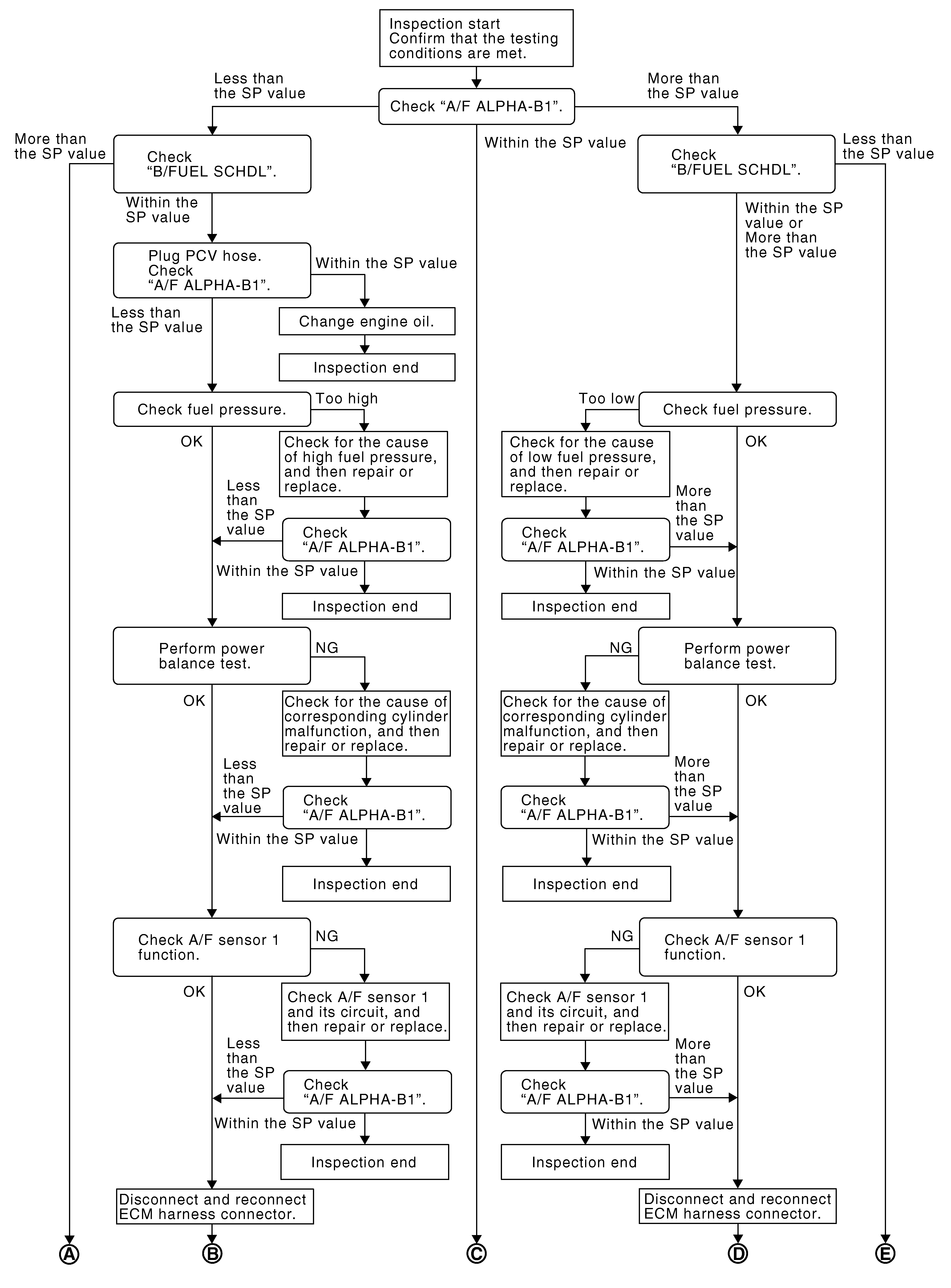

Overall Sequence
Overall Sequence
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
