CVT Steel Belt Inspection

WARNING: This page is about a different variant/trim than selected.

CAUTION: Never allow any chemicals or fluids other than NS-3 CVT fluid or equivalent to enter the CVT assembly. Never allow any foreign debris, dust, dirt, etc. to enter the CVT assembly.

Secure the right front tire with a suitable strap . This will assist in making the steel belt turn.

Courtesy of NISSAN NORTH AMERICA, INC.
Mark the left front tire with a suitable marking. This will ensure all 360 deg. of the steel belt is inspected.

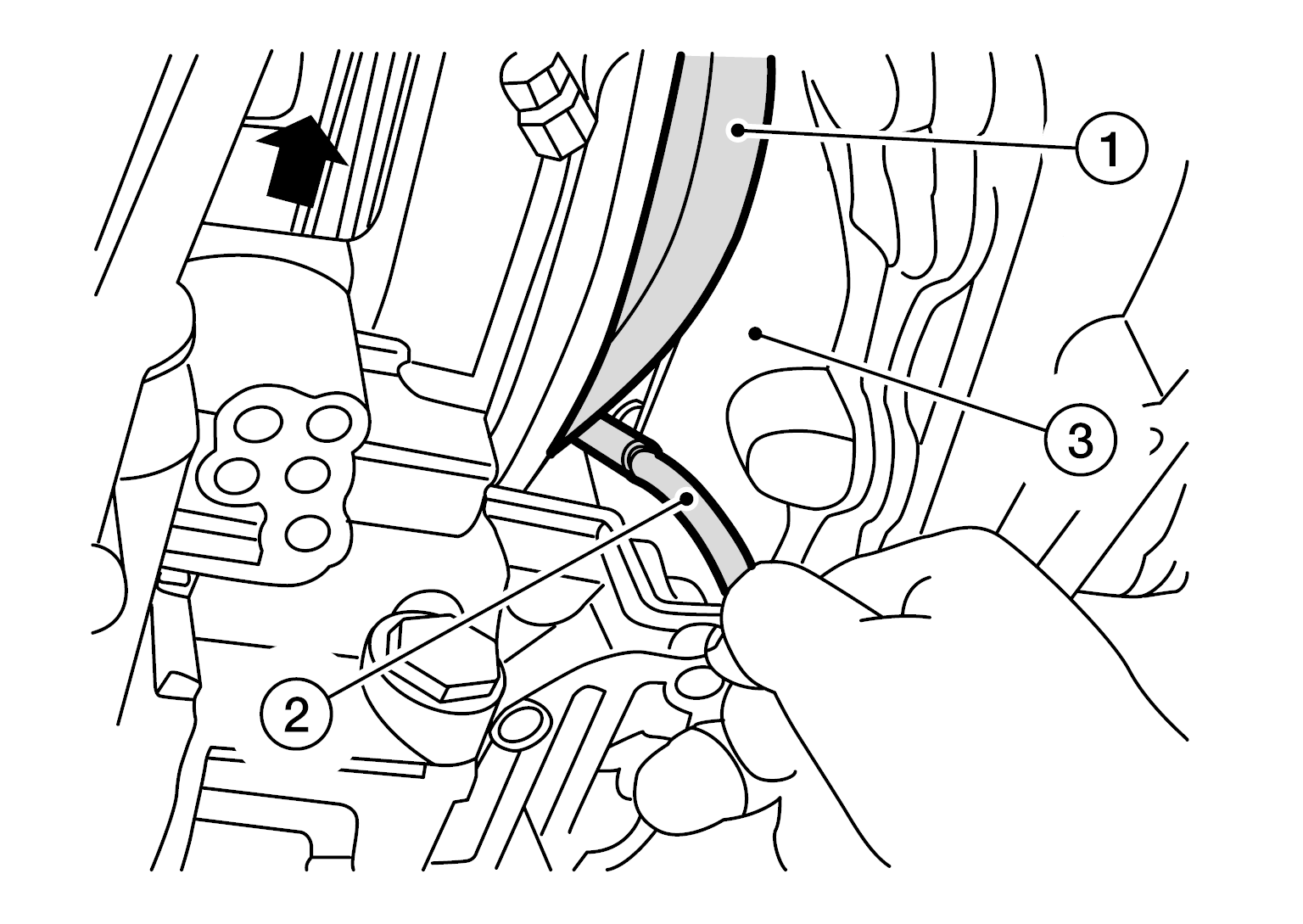

Using borescope J-51951 with mirror attachment, visually inspect the entirety of the two sides of the steel belt

that come in contact with the pulleys

. Slowly and carefully turn the left front tire one full turn in the forward rotation to view all of the steel belt.

Courtesy of NISSAN NORTH AMERICA, INC.

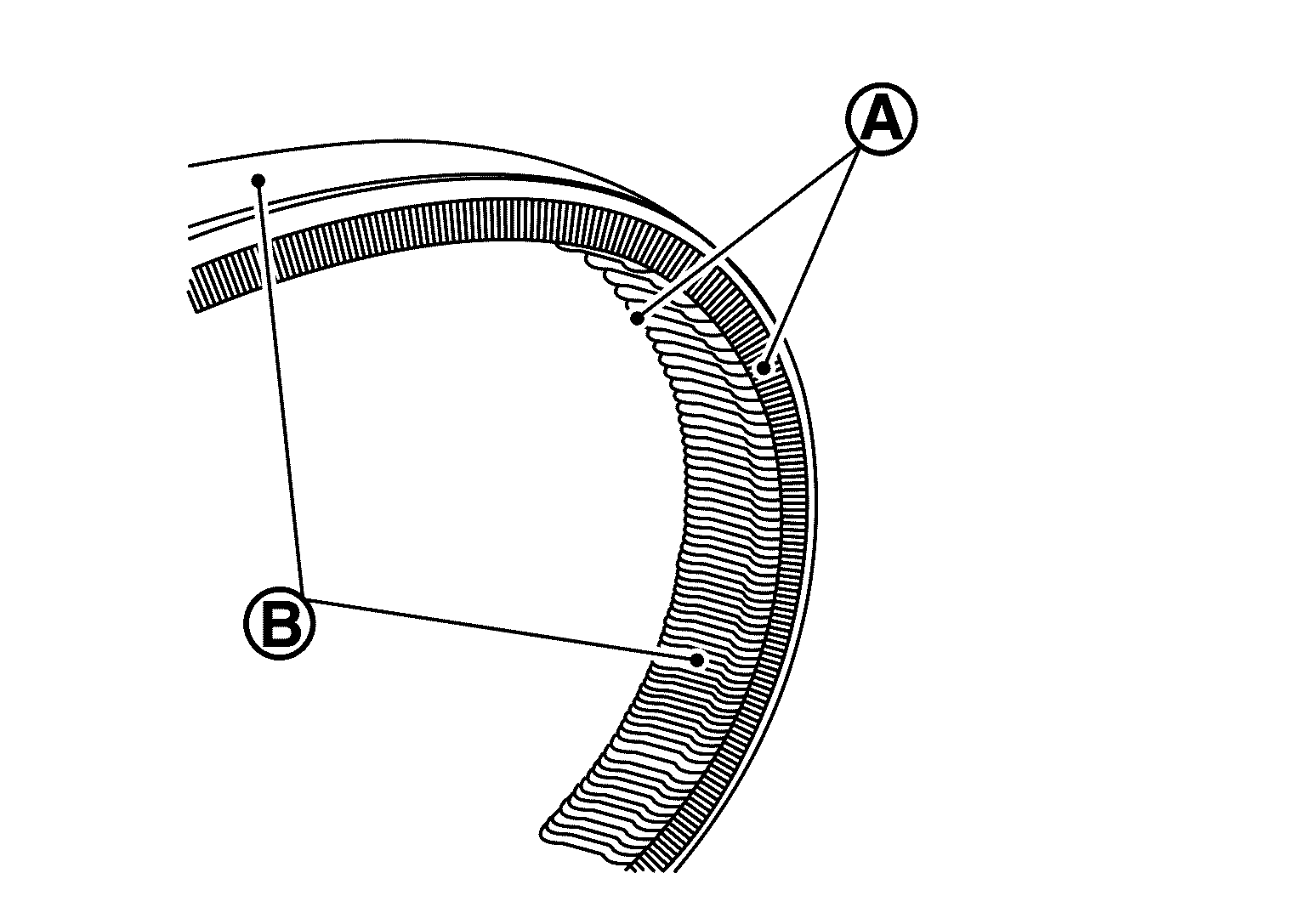

CVT case

Courtesy of NISSAN NORTH AMERICA, INC.

	Inspect these sides
	Do not inspect these sides

CAUTION: If the tire is rotated in the rearward rotation, the camera lens may get caught between the steel belt and the pulley.

NOTE:

Be sure to remove the protective film from the mirror before the first use.
Clean the camera lens and mirror before each inspection. Use 90% isopropyl alcohol, and a lens swab from Lens Swab packet J-51963.
Before inspecting, make sure the camera handle's AA batteries are fresh and the LCD monitor's battery is char deg.
Point the scope up and towards the rear of the vehicle.

First inspect the entire 360 deg. of the passenger side of the steel belt that comes in contact with the pulley. Refer to figures below for examples of normal and excessive wear patterns.

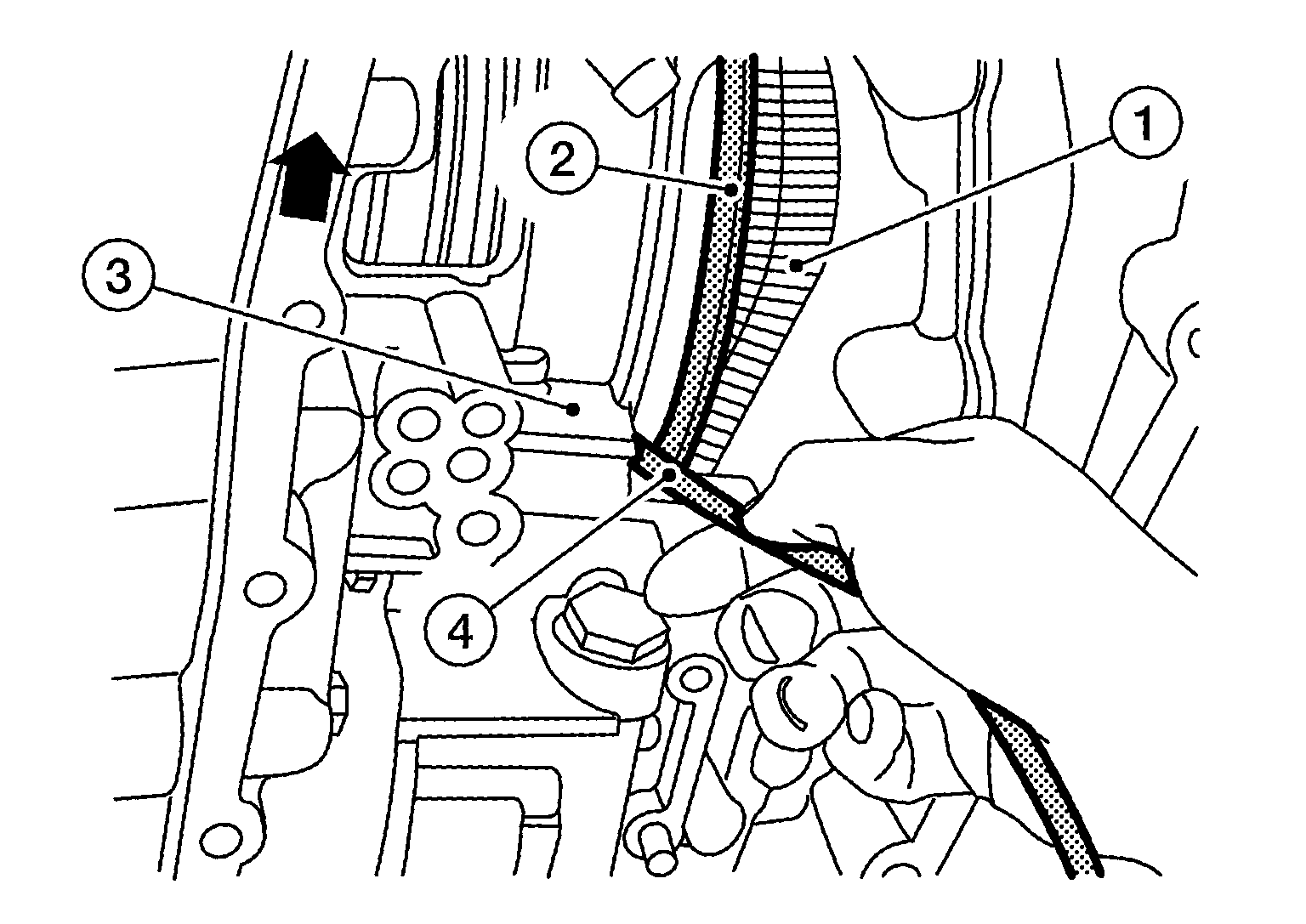

Courtesy of NISSAN NORTH AMERICA, INC.

	Steel belt
	Pulley
	Transaxle case
	Camera flexible tube
	: Front

NOTE:

Insert the camera lens between the CVT case and the pulley.
Insert the lens approximately 7 inches, and then view the side of the steel belt that contacts the pulley.
Holding the borescope with one hand allows for turning the tire with the other hand.

If the inspection result is OK on all 360 deg. of the passenger side, inspect all 360 deg. of the driver side of the steel belt. Refer to figures below for examples of normal and excessive wear patterns.

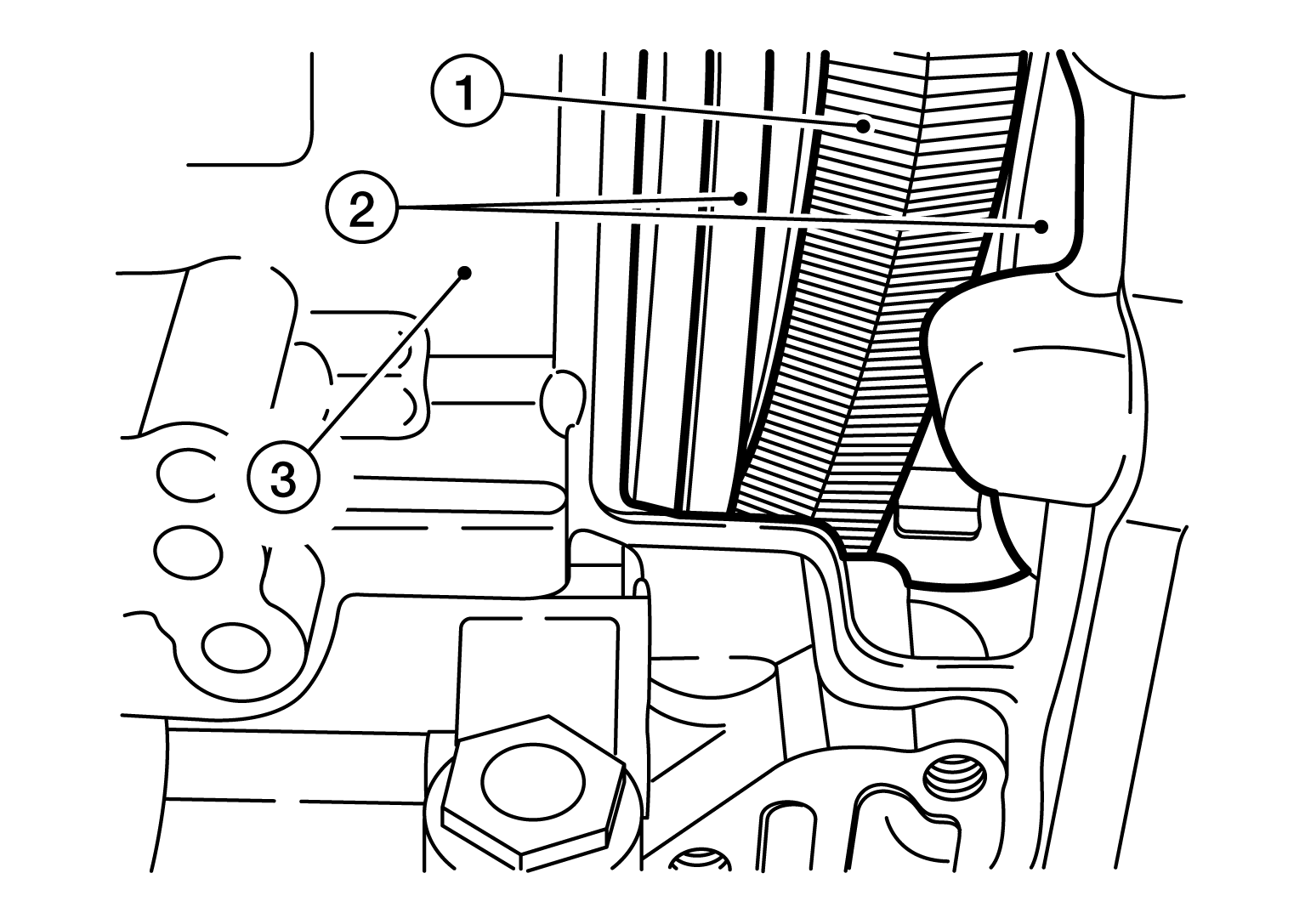

Courtesy of NISSAN NORTH AMERICA, INC.

	Steel belt
	Camera flexible tube
	Pulley
	: Front
