Cylinder Head
WARNING: This page is about a different variant/trim than selected.
Unit: mm (in)
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Description
|
Standard
|
|

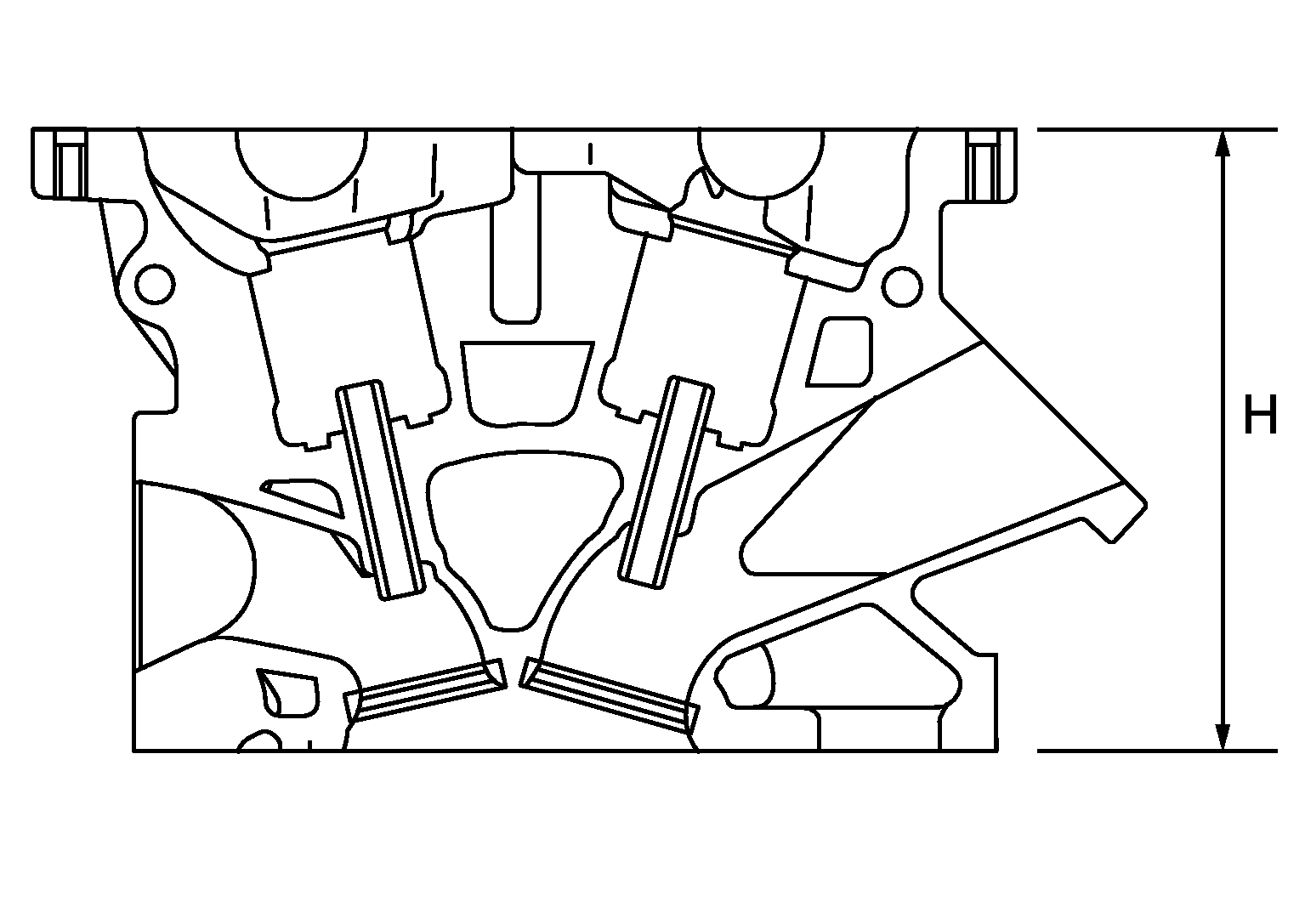

Normal cylinder head height (H)
|
129.4 (5.09)
|
|
Description
|
Limit
|
|
Head surface distortion
|
0.1 (0.004)
|
|
Description
|
Standard
|
|
Spark plug tube installation height
|
41.2 - 42.2 mm (1.622 - 1.661 in)
|
