Inspection After Removal

Timing Chain

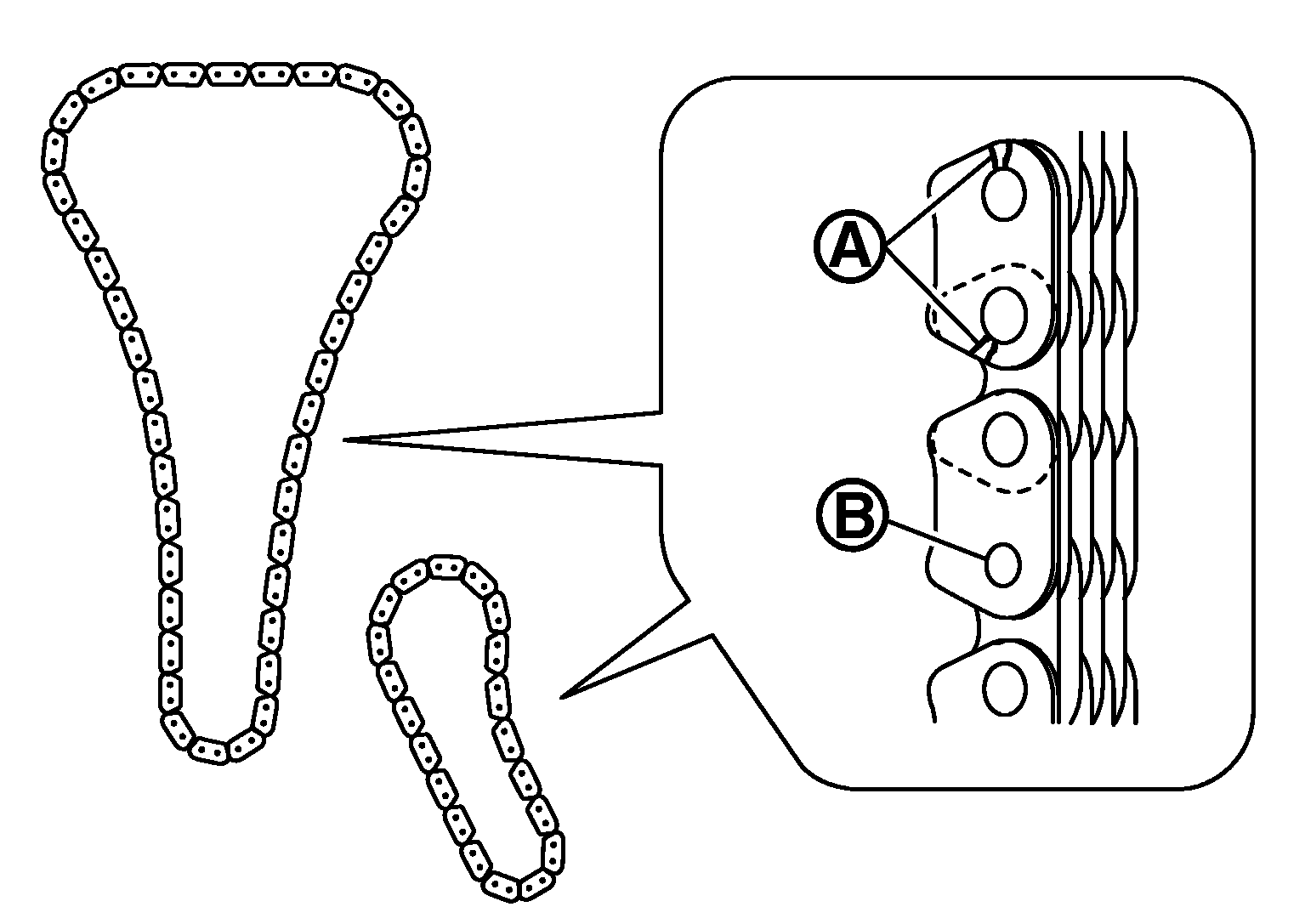

Check the timing chain for cracks (A) or excessive wear (B). If a defect is found, replace the timing chain.

Courtesy of NISSAN NORTH AMERICA, INC.

Balancer Unit Bolt Outer Diameter

• Measure outer diameters (d1, d2) at the two positions as shown.

  Courtesy of NISSAN NORTH AMERICA, INC.

  (A)	: 30 mm (1.18 in)
  (B)	: 40 mm (1.57 in)
  (C)	: 10 mm (0.39 in)

• Measure (C) within the range (B).
• If the value difference [(D) - (C)] exceeds the limit, replace the balancer unit bolt with a new one.

  Limit

  : 0.15 mm (0. 0059 in) or more
