REAR TORQUE ROD : Removal & Installation: Installation
WARNING: This page is about a different variant/trim than selected.
- Install the rear torque rod using the following procedure:
- Install the rear torque rod bracket (if removed).

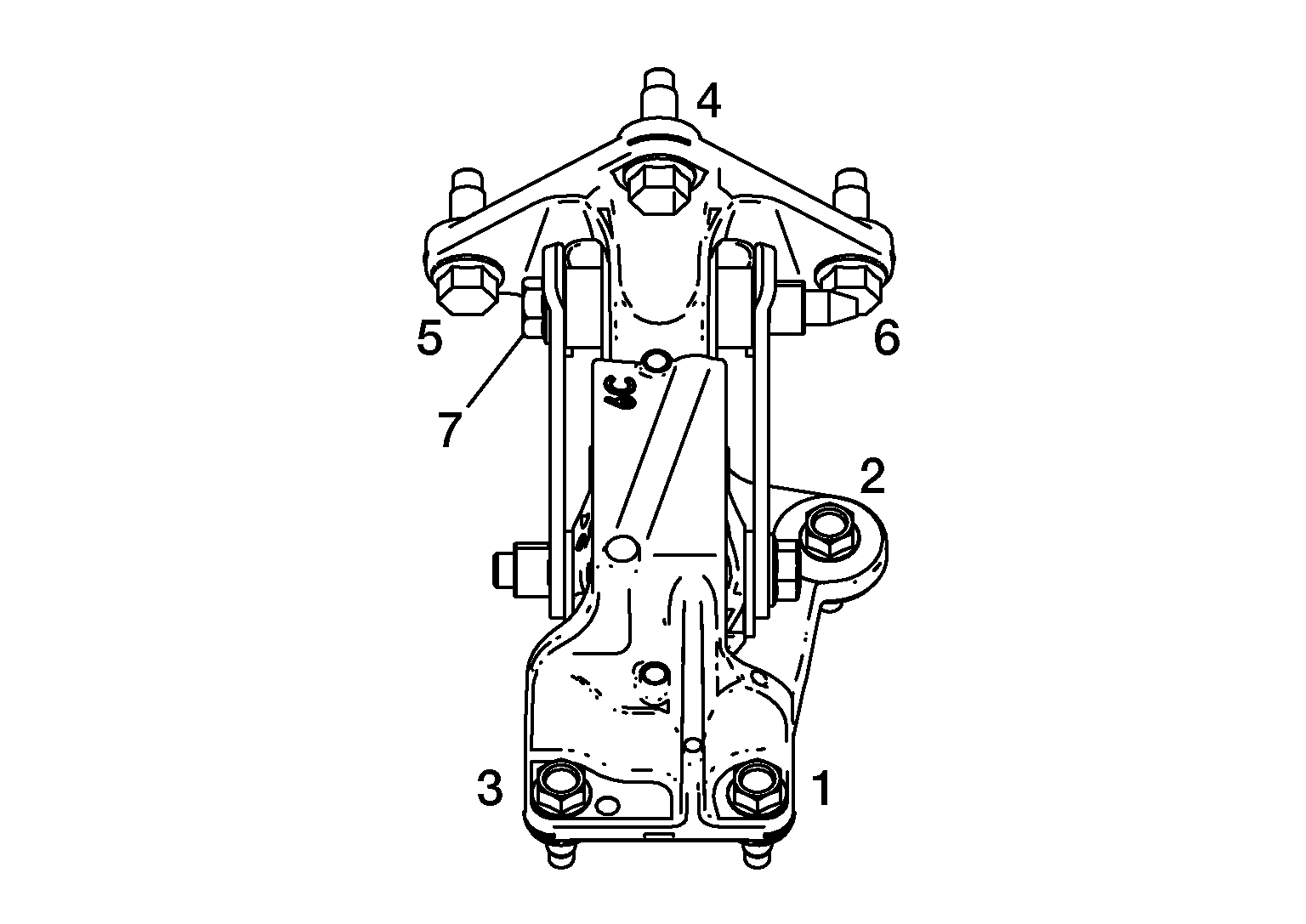

- Hand tighten the bolts in the sequence shown.
- Tighten the rear torque rod and torque rod bracket bolts to the specified torque in the sequence shown.
Rear torque rod
Bolts 1, 2, 3
: 55 N.m (5.6 kg-m, 41 ft-lb)
Bolt 7
: 103 N.m (11 kg-m, 76 ft-lb)
Bolt 4, 5, 6
: 70 N.m (7.1 kg-m, 52 ft-lb)
- Installation of the remaining components is in the reverse order of removal.
