PR25DD engine: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove drive plate. Refer to Removal and Installation .

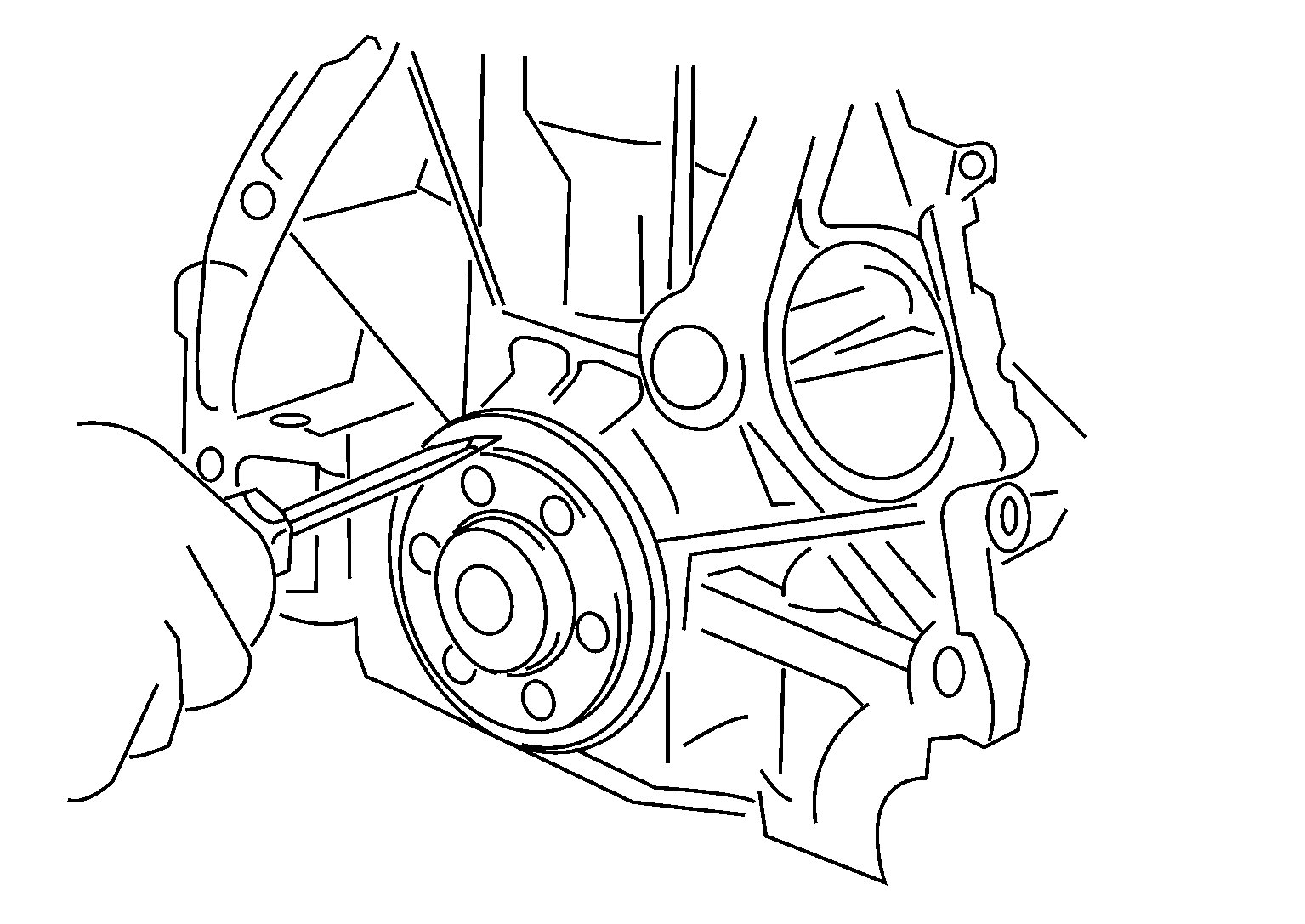

  2. Remove rear oil seal with a suitable tool.
    G04165294Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Do not damage crankshaft and cylinder block.
    • Do not reuse rear oil seal.
