PR25DD engine: Installation
WARNING: This page is about a different variant/trim than selected.
- Apply new engine oil to rear oil seal lip.
- Install rear oil seal so that each seal lip is oriented as shown.
(A)
: Dust seal lip
(B)
: Oil seal lip
: Engine outside
: Engine inside

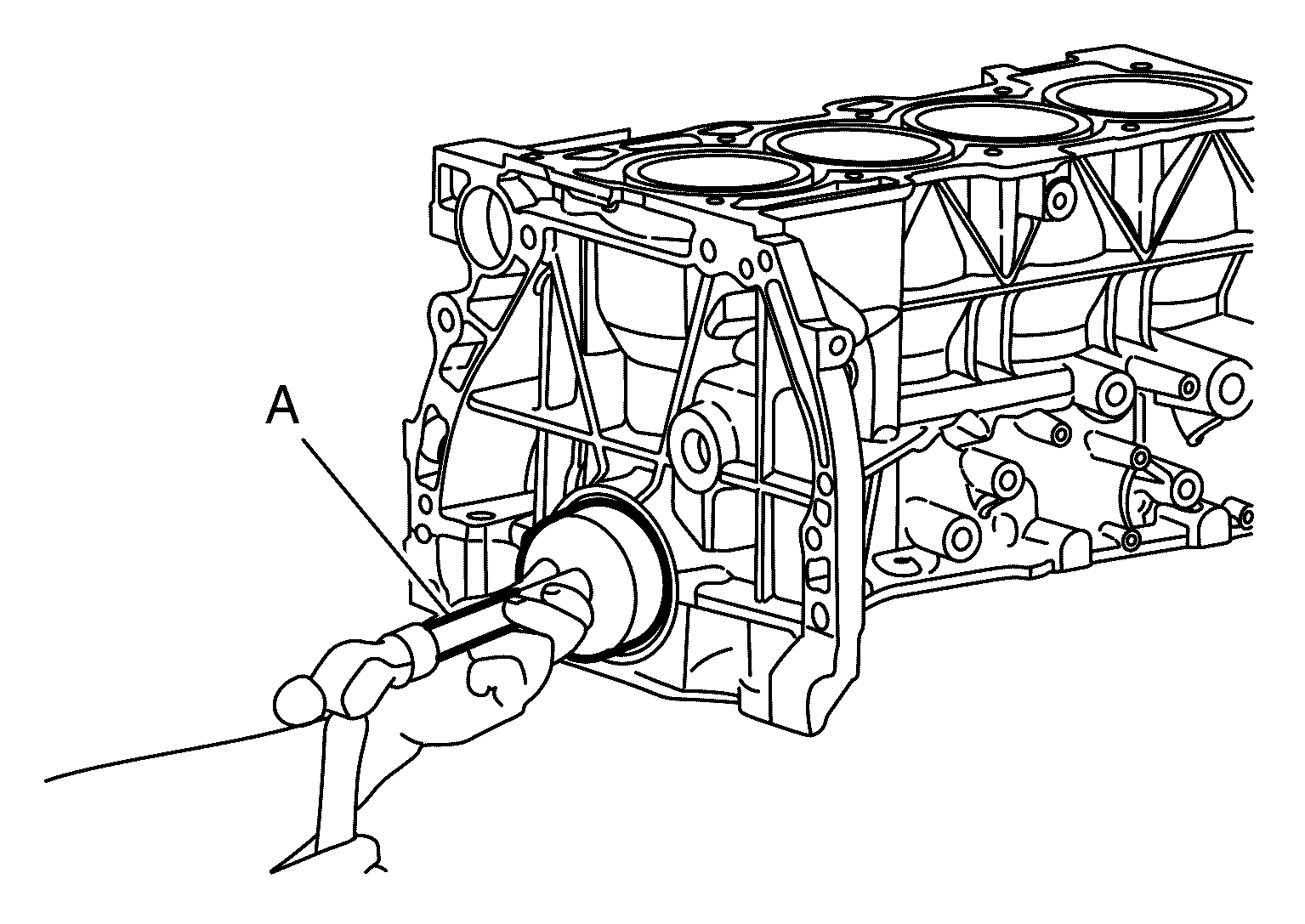

- Press-fit rear oil seal with a suitable drift (A).CAUTION:
- Do not reuse rear oil seal.
- Do not damage crankshaft and cylinder block.
- Press-fit oil seal straight to avoid causing burrs or tilting.
- Apply neutral detergent (if needed) to outer circumference of oil seal to aid installation. Do not allow detergent to contact inner circumference of oil seal.
- Press in the new rear oil seal (1) to the position as shown.
(b)
: 0.0 mm - 0.5 mm (0.000 in - 0.020 in)
(A)
: Rear end surface of cylinder block
- Press-fit rear oil seal with a suitable drift (A).
- Installation of the remaining components is in the reverse order of removal.
