PR25DD engine: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Drain engine oil. Refer to ENGINE OIL : Draining .
  2. Remove oil pan (lower) using the following procedure:
    1. Loosen oil pan (lower) bolts in reverse of the sequence shown.
      Fig 1: Oil Pan (Lower) Bolts Tightening Sequence
      GNSDB113068Courtesy of NISSAN NORTH AMERICA, INC.

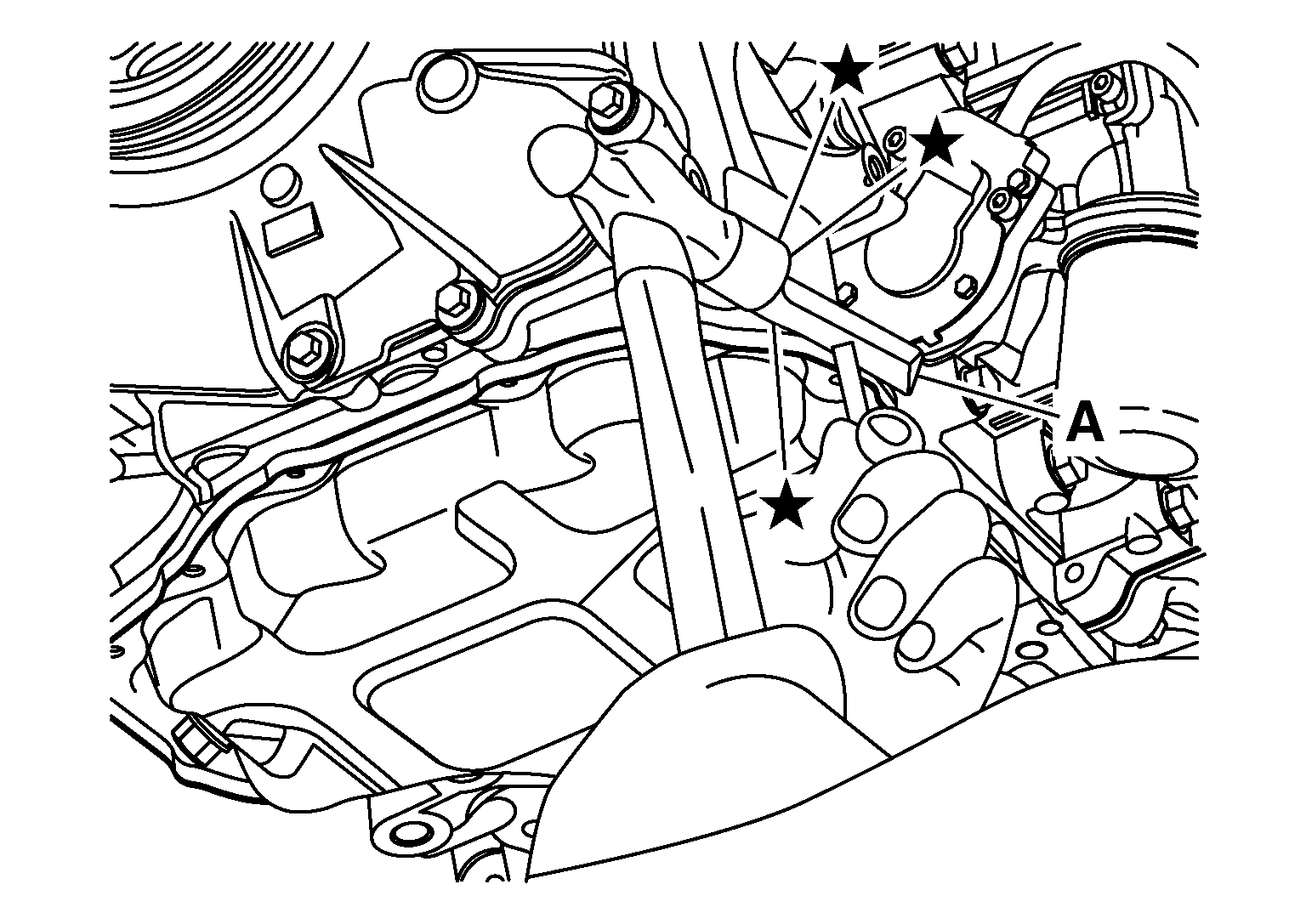

    2. Insert Tool (A) between oil pan (upper) and oil pan (lower).
      GNSALBIA0168Z-168Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION:
      • Be careful not to damage the mating surface.
      • Since factory default liquid gasket has better adhesion than conventional one, do not pick the area forcibly with a screw driver.

      Tool number

      : KV10111100 (J-37228)
