PR25DD engine: Installation
WARNING: This page is about a different variant/trim than selected.
- Install oil pan (lower) using the following procedure:

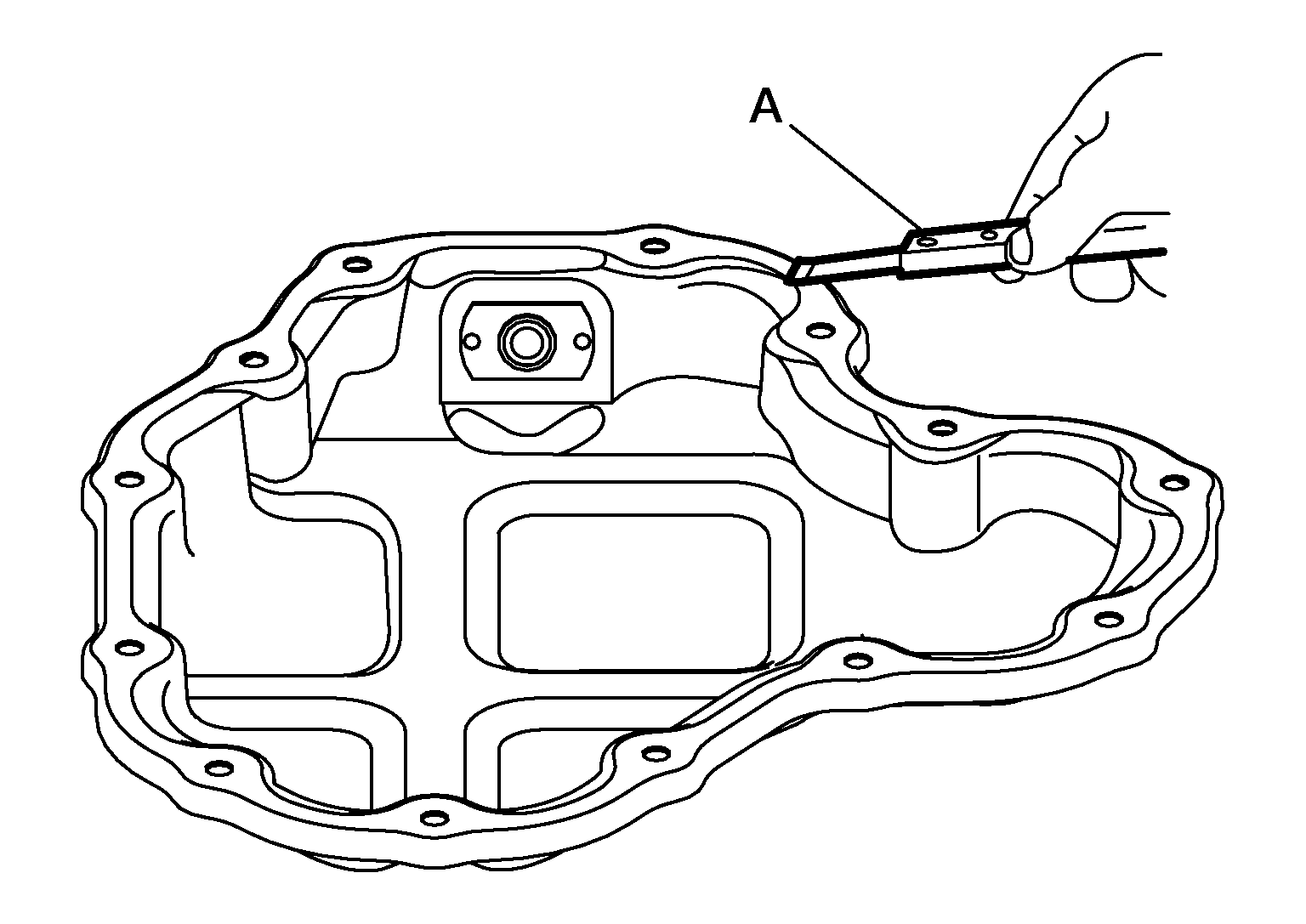

- Use a suitable tool (A) to remove old liquid gasket from mating surfaces.
- Also remove old liquid gasket from mating surface of oil pan (upper).
- Remove old liquid gasket from the bolt holes and threads.

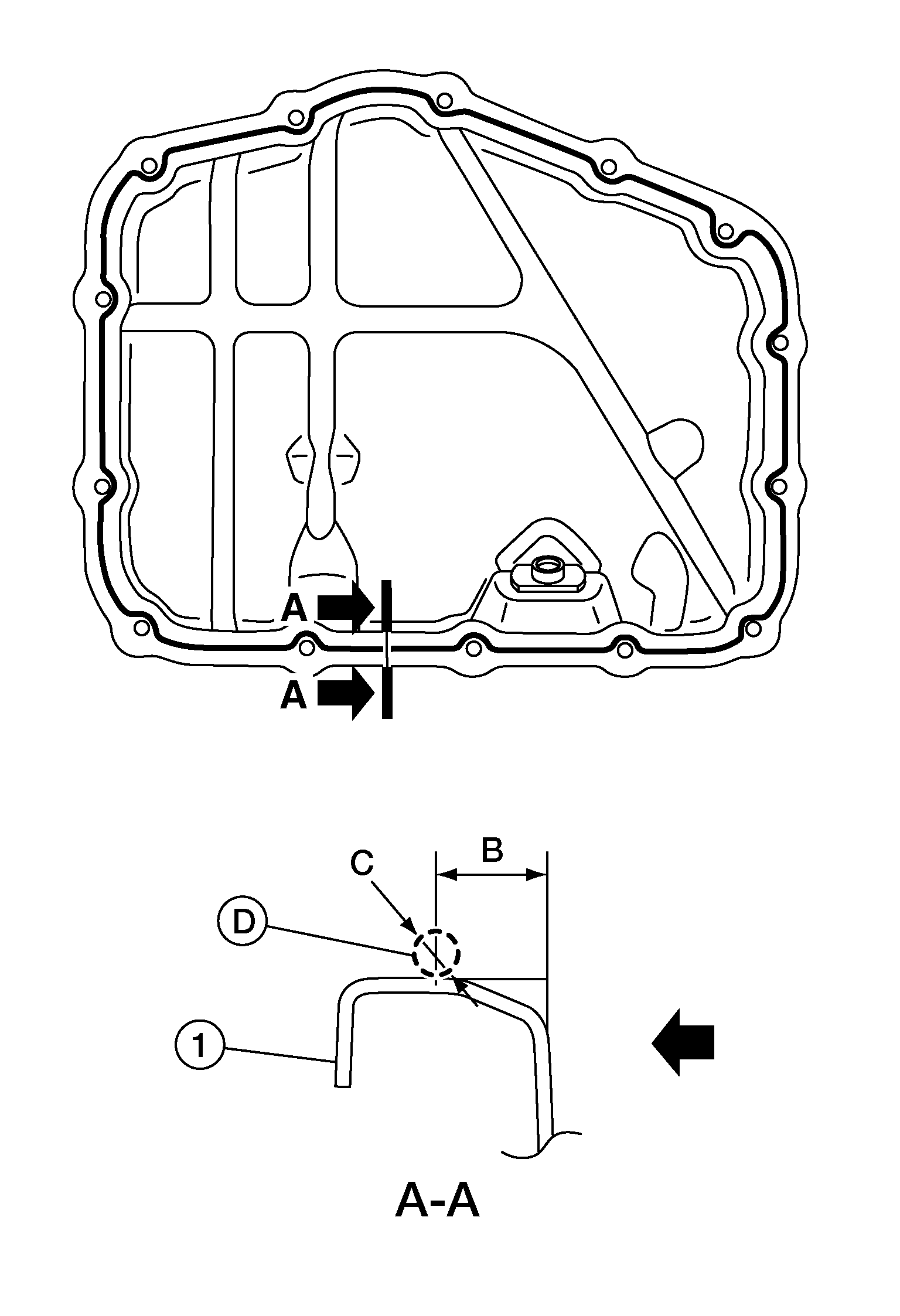

CAUTION: Do not scratch or damage the mating surface when cleaning off old liquid gasket. - Apply a continuous bead of liquid gasket (D) with a suitable tool as shown.
(1)
: Oil pan (lower)
(B)
: 7.5 -- 9.5 mm (0.30 -- 0.37 in)
(C)
: 3.4 -- 4.4 mm (0.13 -- 0.17 in)
: Engine outside
Use Genuine Silicone RTV Sealant or equivalent. Refer to HOW TO USE THIS INFORMATION : Recommended Chemical Products and Sealants .
CAUTION:- The components must be installed within 5 minutes of the liquid gasket application.
- Do not re-tighten bolts after 5 minutes have elapsed.
- Then allow 30 minutes for the liquid gasket to set before adding oil to the engine.

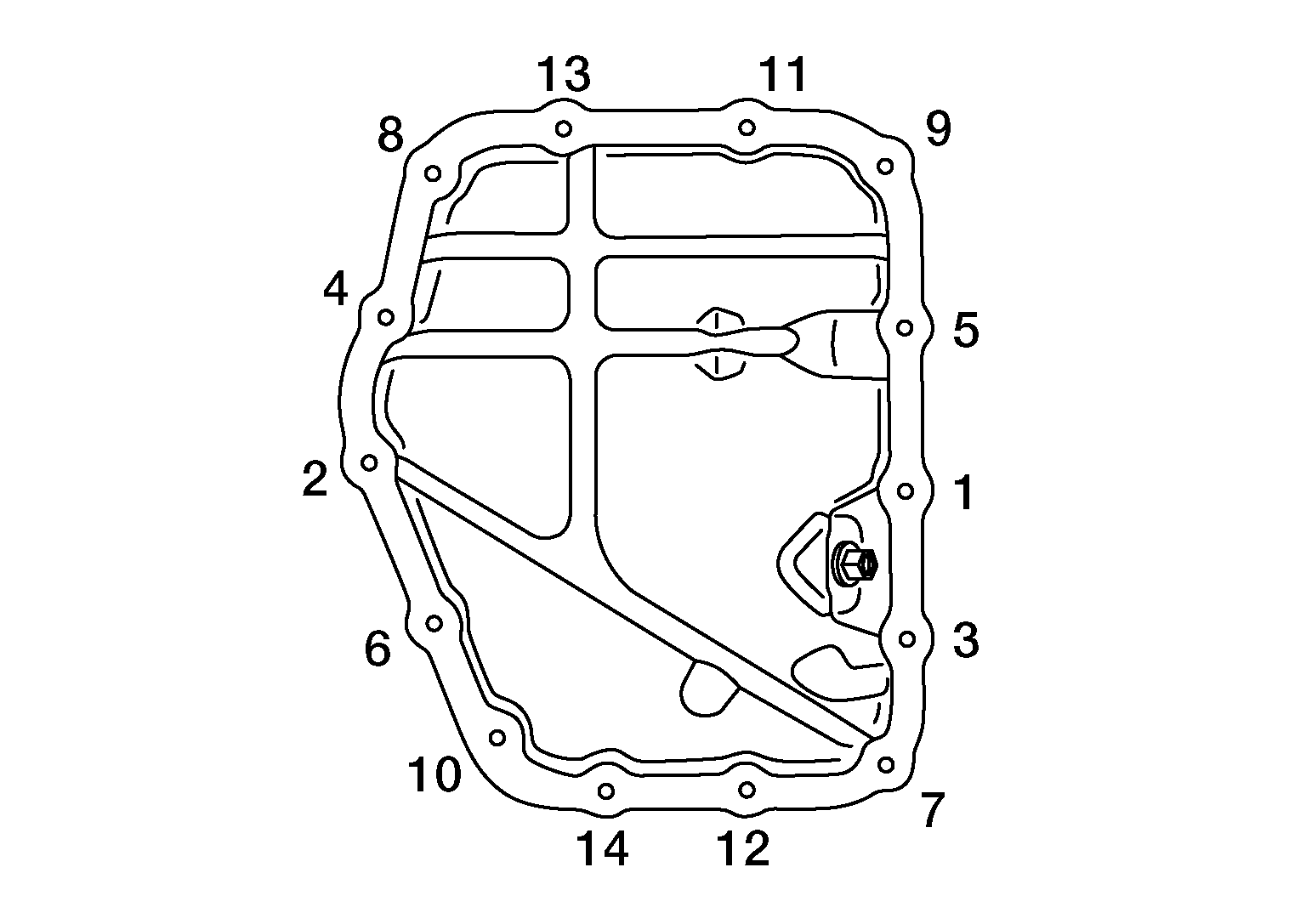

- Tighten oil pan (lower) bolts to the specified torque in the sequence shown.
Oil pan (lower) bolts
: 7.4 N.m (0.75 kg-m, 65 in-lb)
- Use a suitable tool (A) to remove old liquid gasket from mating surfaces.
- Install drain plug.CAUTION: Do not reuse drain plug washer.
- Installation of the remaining components is in the reverse order of removal.
- Refill engine oil. Refer to ENGINE OIL : Refilling .
NOTE: Wait at least 30 minutes after oil pan (lower) is installed before refilling engine oil.
