INTAKE MANIFOLD : Removal & Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the intake manifold stud (if removed)
  2. Install intake port insulator.
    CAUTION: Do not reuse intake port insulator gasket.

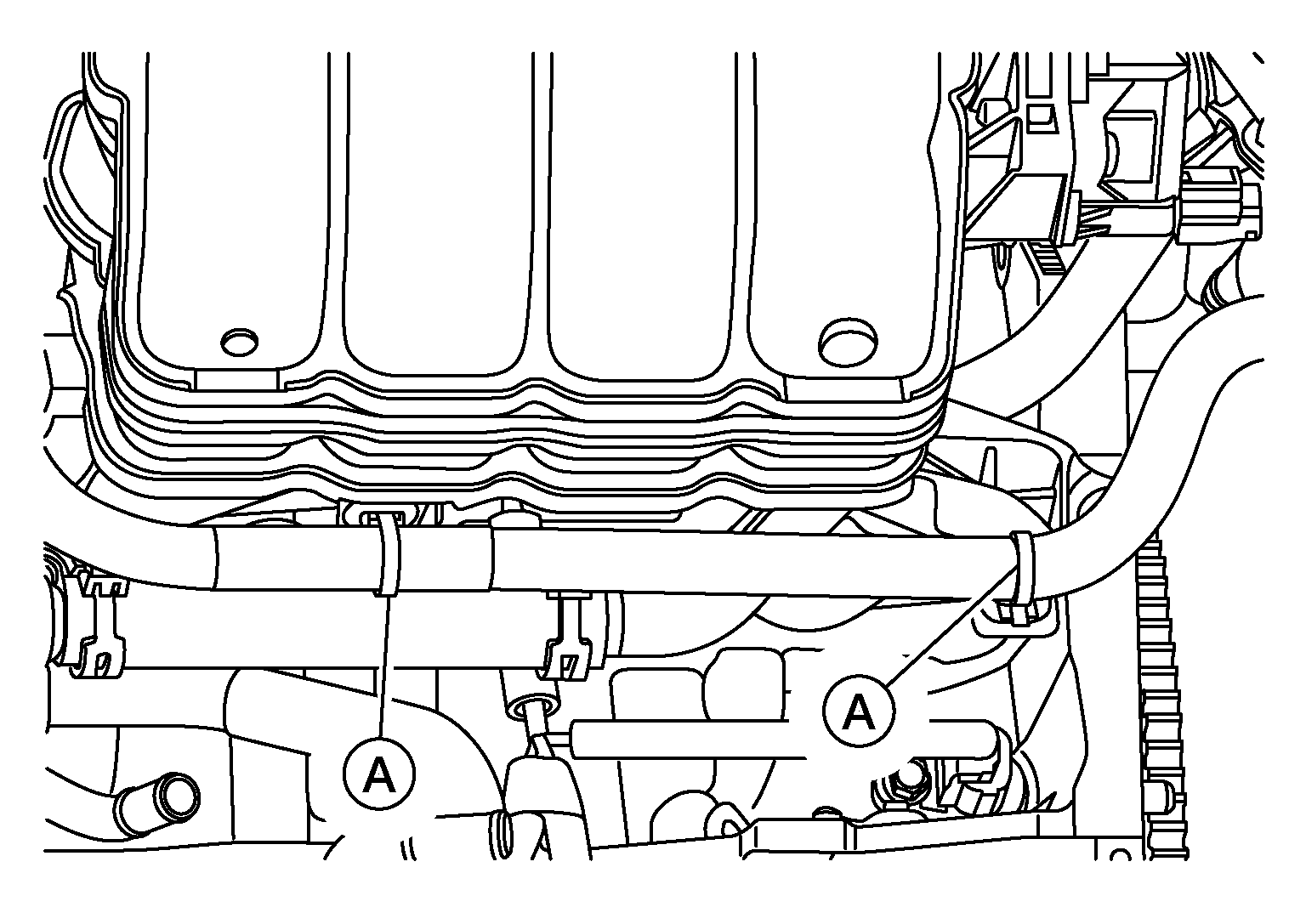

  3. Connect harness retainers (A) before installing intake manifold.
    GNSALBIA0507Z-507Courtesy of NISSAN NORTH AMERICA, INC.
  4. Install and tighten intake manifold bolts using the following procedure:
    CAUTION: Do not reuse intake manifold gasket.
    1. Hand tighten bolts (4 and 5).

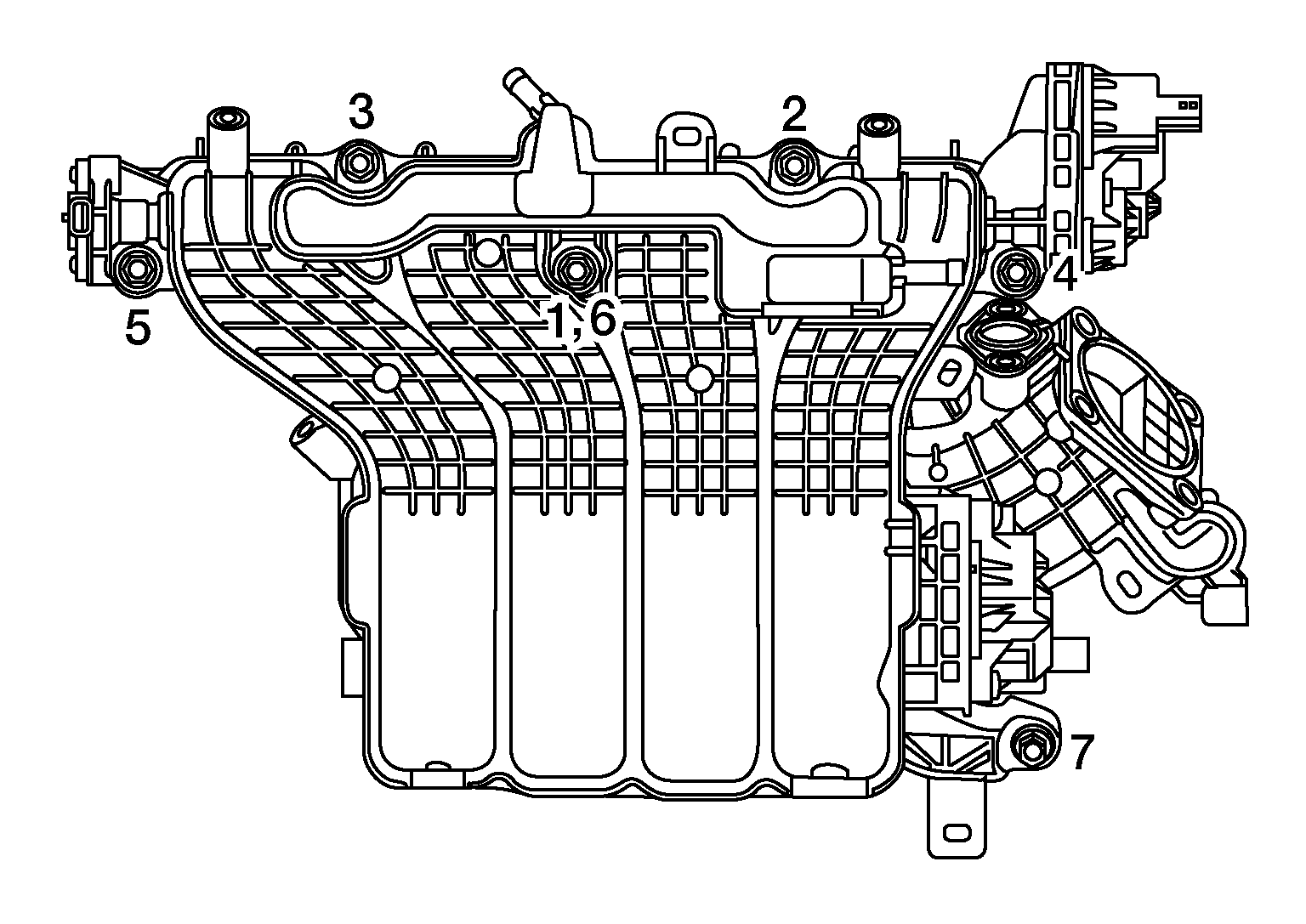

      GNSALBIA0506Z-506Courtesy of NISSAN NORTH AMERICA, INC.
    2. Tighten intake manifold nuts and bolts to the specified torque in the sequence shown.

      Bolts 1, 4, 5, 6

      : 25.0 N.m (2.6 kg-m, 18 ft-lb)

      Nuts 2, 3

      : 25.0 N.m (2.6 kg-m, 18 ft-lb)

      Bolt 7

      : 25.0 N.m (2.6 kg-m, 18 ft-lb)
  5. Installation of the remaining components is in the reverse order of removal.
    • Install and tighten the electric throttle control actuator bolts to the specified torque in the sequence shown.

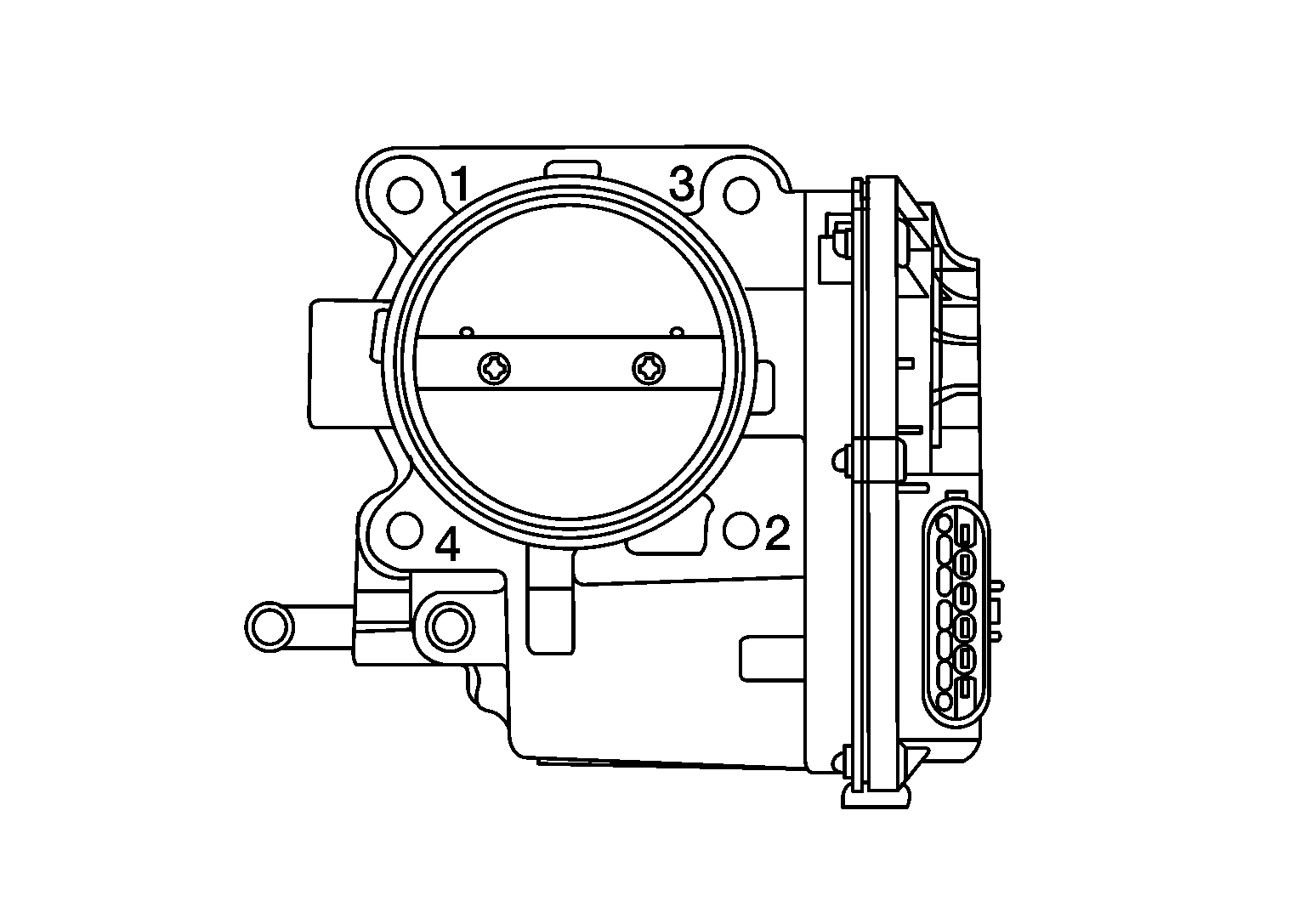

      GNSAWBIA1359Z-359Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Do not reuse electric throttle control actuator gasket.

      Bolts

      : 10.0 N.m (1.0 kg-m, 89 in-lb)
    • Perform the "Throttle Valve Closed Position Learning" when harness connector of electric throttle control actuator is disconnected. Refer to Work Procedure .
    • Perform the "Idle Air Volume Learning" and "Throttle Valve Closed Position Learning" when electric throttle control actuator is replaced.
