PR25DD engine: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply new engine oil to seal lip.
  2. Install front oil seal so that each seal lip is oriented as shown.
    G04811665Courtesy of NISSAN NORTH AMERICA, INC.

    (A)

    : Dust seal lip

    (B)

    : Oil seal lip

    SYMBOL

    : Engine outside

    SYMBOL

    : Engine inside

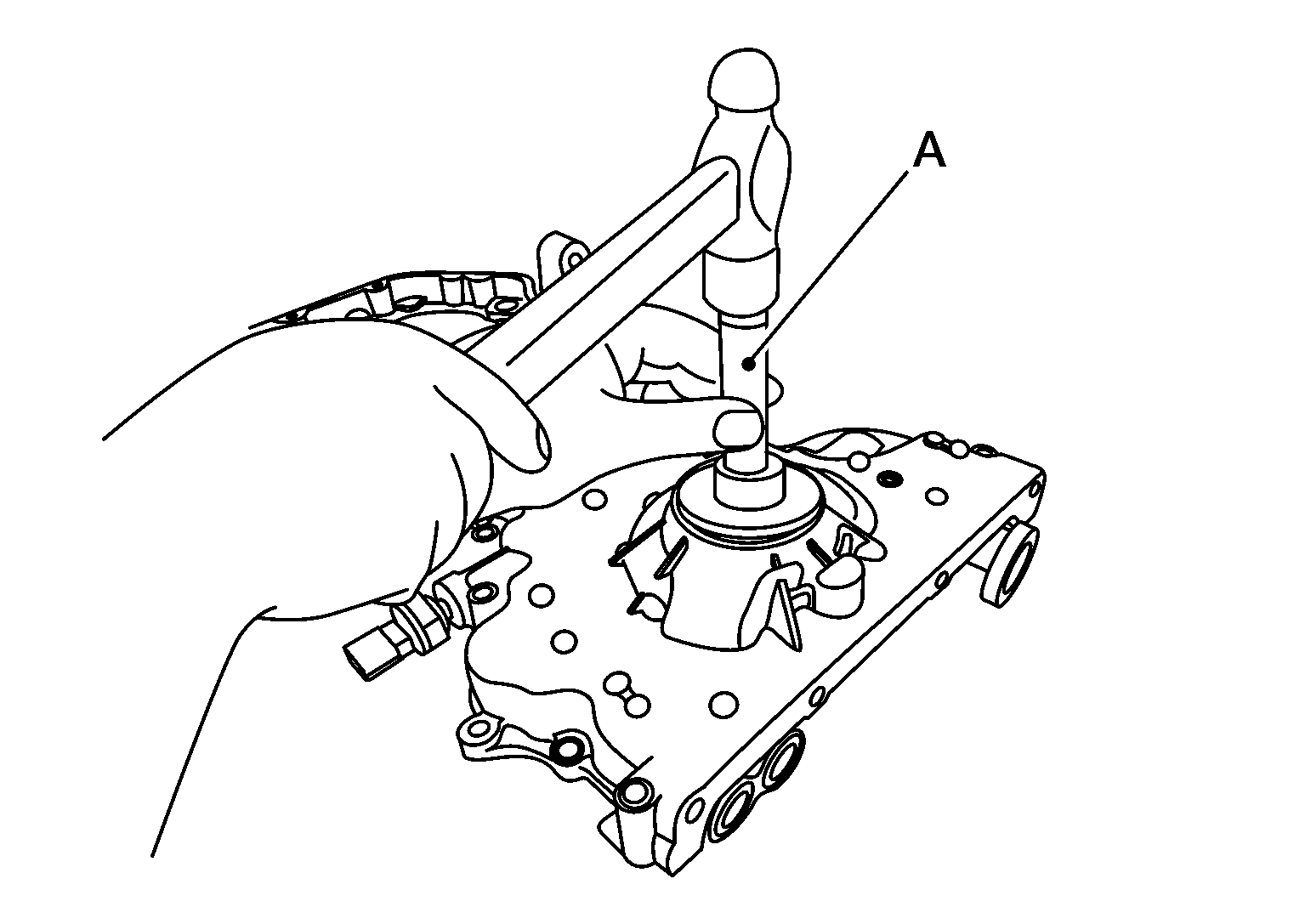

    • Press-fit front oil seal until it is flush with front end surface of front cover using a suitable drift (A).
      G08686163Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION:
      • Do not damage front cover and crankshaft.
      • Press-fit oil seal straight to avoid causing burrs or tilting.
      • Do not touch the grease applied to the oil seal lip.
      • Do not reuse oil seal.
  3. Insert crankshaft pulley by aligning with crankshaft key.
    • Tap its center with a plastic hammer to insert.
    • Do not tap the crankshaft pulley outer diameter.
  4. Tighten crankshaft pulley bolt using the following procedure:
    1. Apply new engine oil to threads and seat surfaces of bolts.
    2. Tighten crankshaft bolt to specified torque.

      Crankshaft pulley bolt

      : 42.1 N.m (4.3 kg-m, 31 ft-lb)
    3. Tighten crankshaft pulley bolt to the specified angle using Tool.
      CAUTION: Check and confirm the tightening angle using Tool. Avoid judgment by visual inspection without Tool.

      Tool number

      : KV10112100 (BT-8653-A)

      Crankshaft pulley bolt

      : Tighten 90 deg. - 96 deg.
  5. Installation of the remaining components is in the reverse order of removal.
