ENGINE MOUNTING INSULATOR (RH) : Removal & Installation: Installation
WARNING: This page is about a different variant/trim than selected.
- Install the engine mounting insulator (RH) stay and engine mounting insulator (RH) and tighten the bolts using the following procedure:

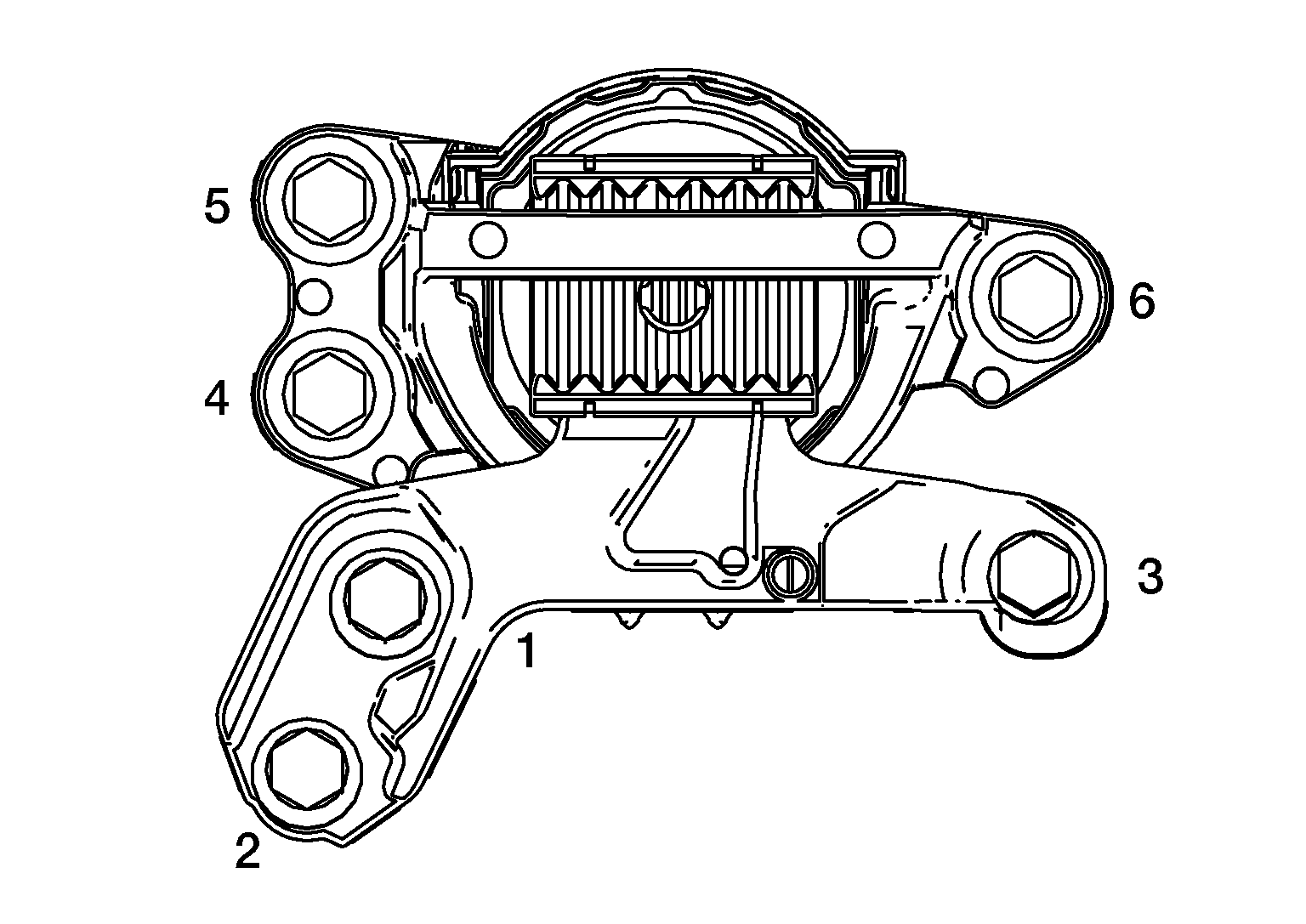

- Hand tighten bolts in the sequence shown.
Courtesy of NISSAN NORTH AMERICA, INC.
- Tighten bolts to the specified torque in the sequence shown.
|
Engine mounting insulator (RH)
|
: 50 N.m (5.1 kg-m, 37 ft-lb)
|
NOTE:
Verify the distance (A) is within range 10.5 - 12.5 mm (0.413 - 0.492 in). If distance is not within range, loosen bolts (5), (6) and (7) and adjust to within the range and tighten to the specified torque.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Installation of the remaining components is in the reverse order of removal.
