ENGINE MOUNTING INSULATOR (LH) : Removal & Installation: Installation
WARNING: This page is about a different variant/trim than selected.
- Install the engine mounting insulator (LH) stay and engine mounting insulator (LH) and tighten the bolts using the following procedure:

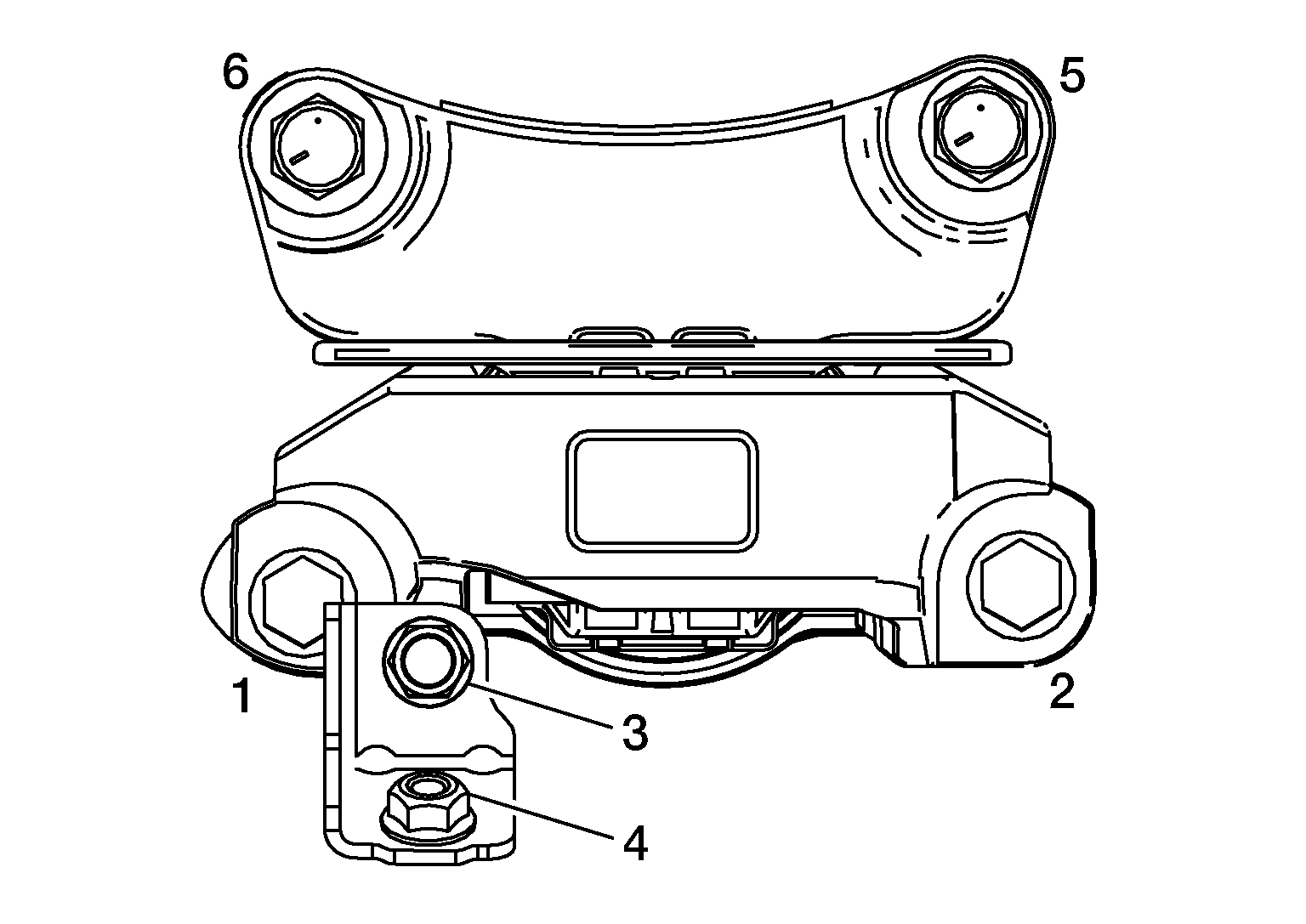

- Hand tighten the bolts in the sequence shown.
- Tighten bolts to the specified torque in the sequence shown.
Engine mounting insulator (LH)
Bolts 5, 6
: 120 N.m (12 kg-m, 89 ft-lb)
Bolts 1, 2
: 72.5 N.m (7.4 kg-m, 53 ft-lb)
Engine mounting insulator (LH) stay
Nut 4 & bolt 3
: 67.5 N.m (6.9 kg-m, 50 ft-lb)
- Installation of the remaining components is in the reverse order of removal.
