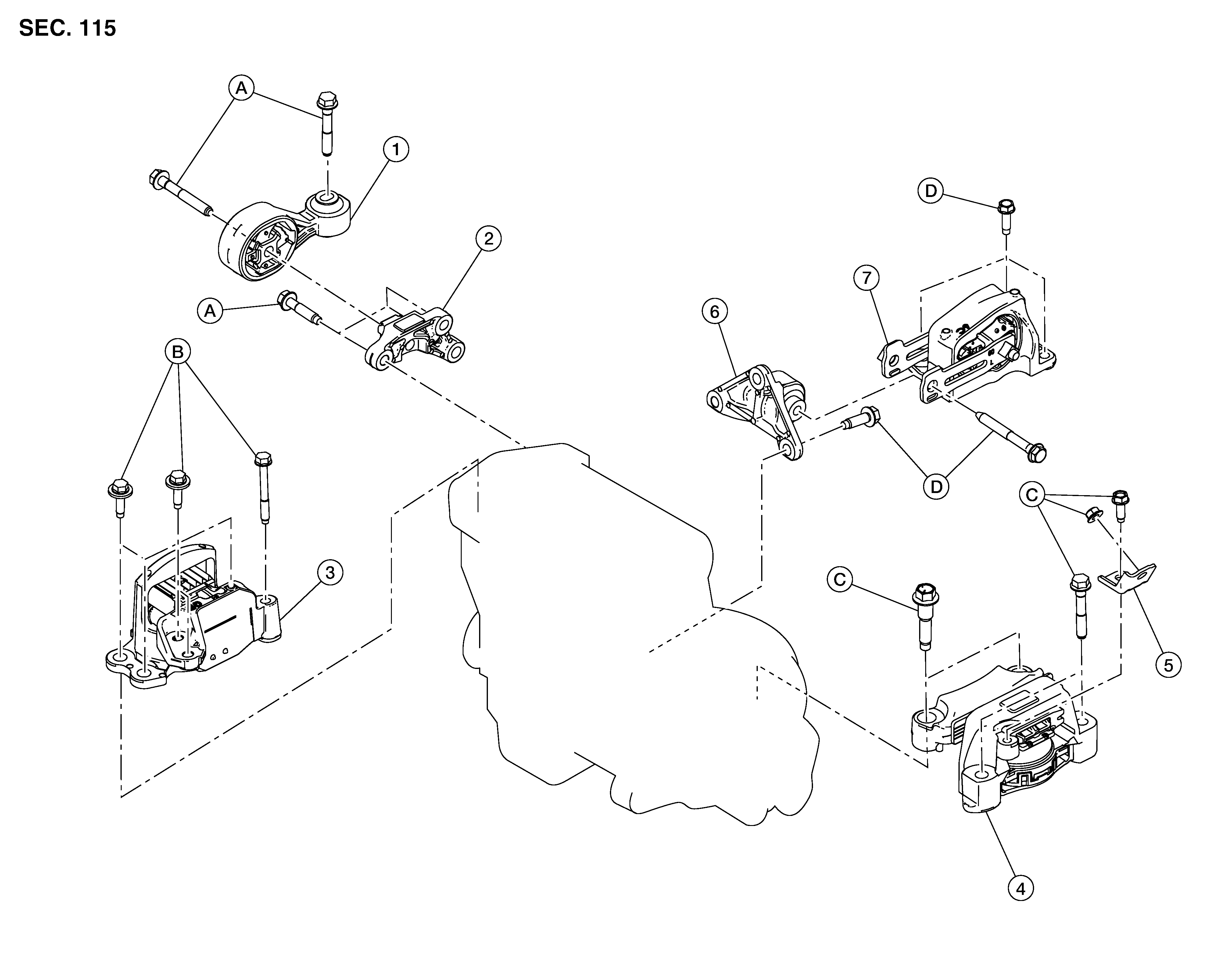

ENGINE ASSEMBLY : Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Torque rod |
2. |
Torque rod bracket |
3. |
Engine mounting insulator (RH) |
|
4. |
Engine mounting insulator (LH) |
5. |
Engine mounting insulator (LH) stay |
6. |
Rear torque rod bracket |
|
7. |
Rear torque rod |
A. |
Refer to Removal and Installation . |
B. |
Refer to Removal and Installation . |
|
C. |
Refer to Removal and Installation . |
D. |
Refer to Removal and Installation . |
