ELECTRIC INTAKE VALVE TIMING CONTROL ACTUATOR : Removal & Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Installation is in the reverse order of removal.

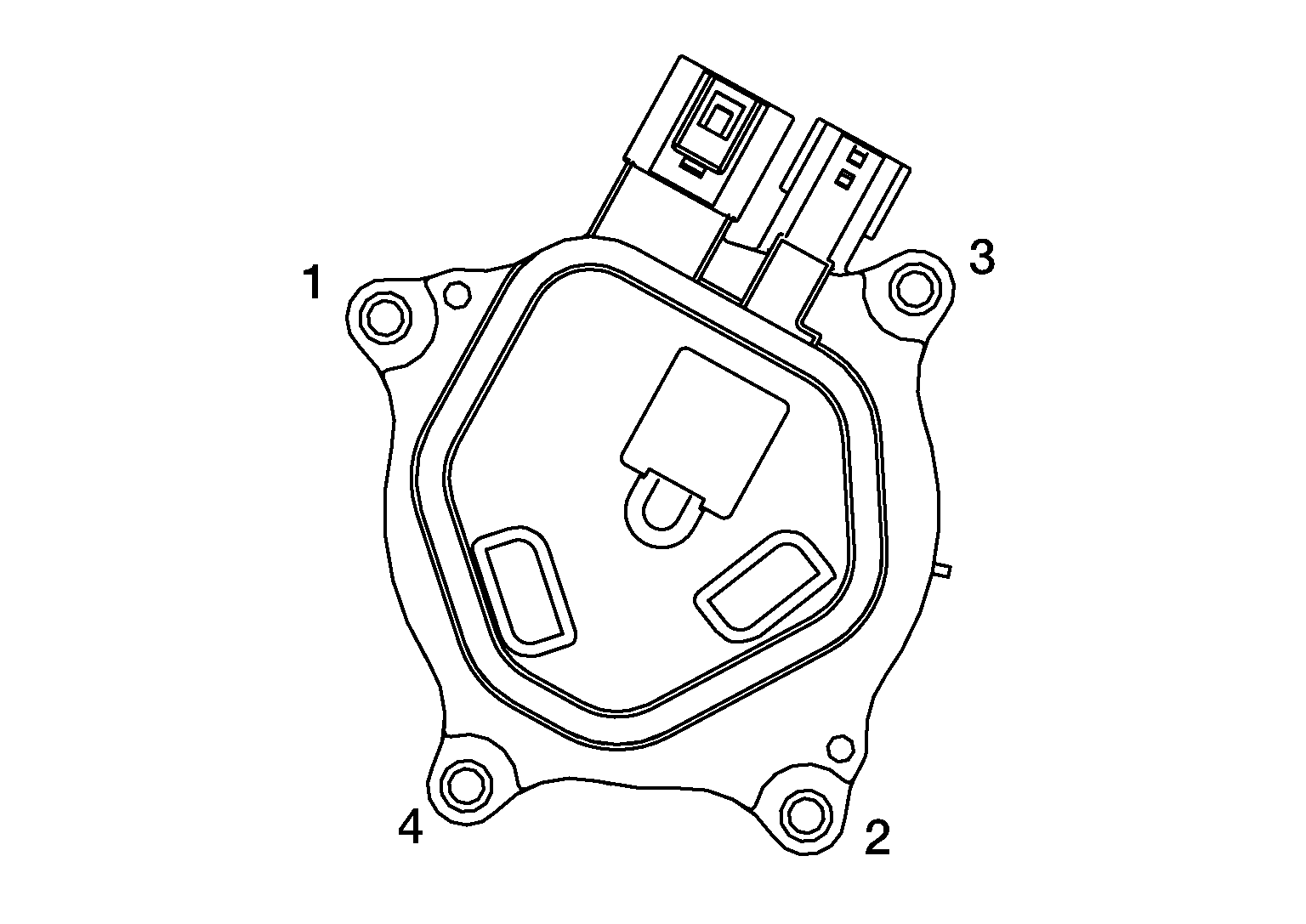

- Tighten the electric intake valve timing control actuator bolts to the specified torque in the sequence shown.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Electric intake valve timing control actuator bolts
|
7.0 N.m (0.71 kg-m, 62 in-lb)
|
