ELECTRIC INTAKE VALVE TIMING CONTROL ACTUATOR : Exploded View

WARNING: This page is about a different variant/trim than selected.

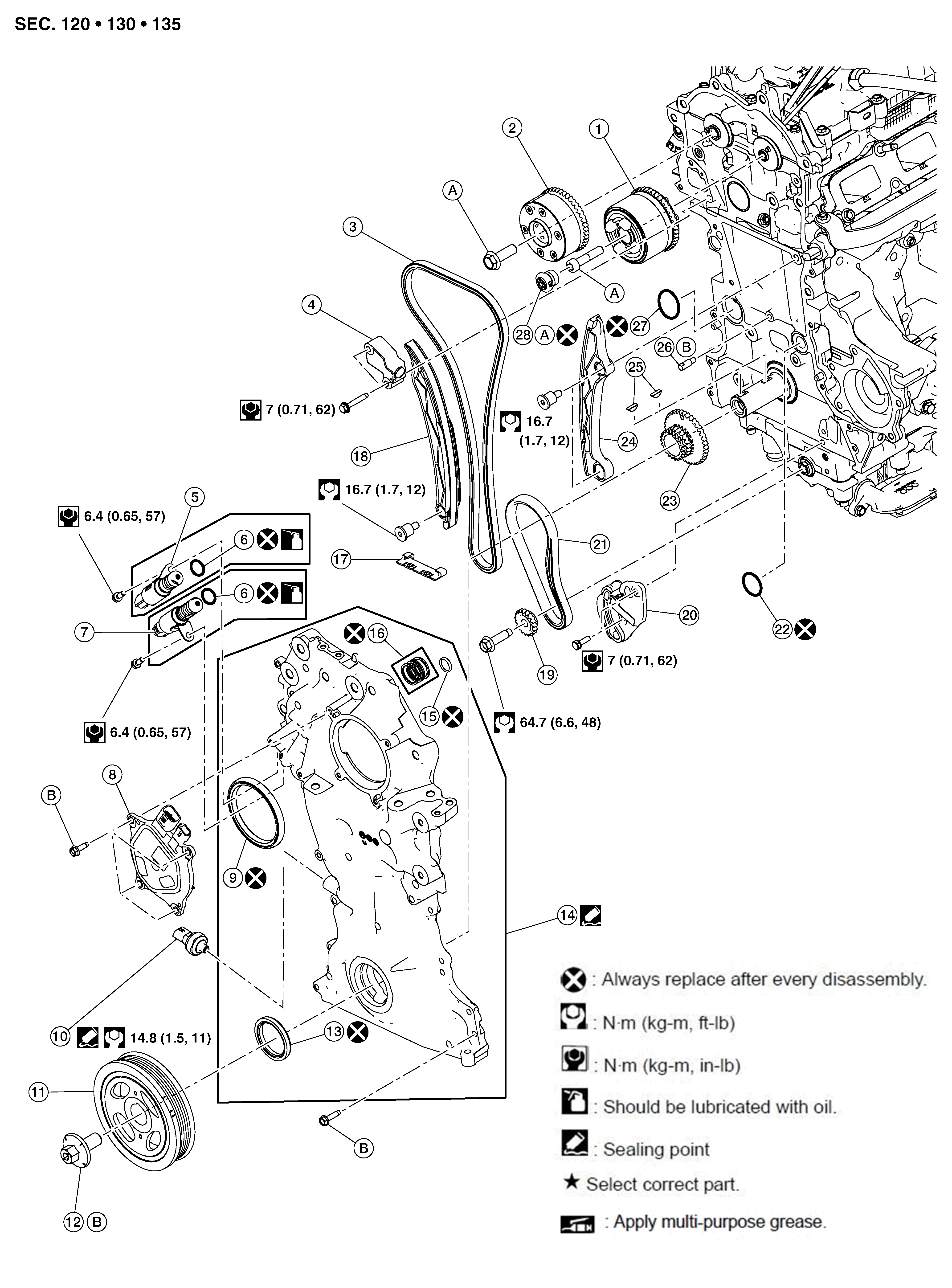

Fig 1: Electric Intake Valve Timing Control Actuator With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Camshaft sprocket (INT)	2.	Camshaft sprocket (EXH)	3.	Timing chain
4.	Timing chain tensioner	5.	Exhaust valve timing intermediate lock control solenoid valve	6.	O-ring
7.	Exhaust valve timing control solenoid valve	8.	Electric intake valve timing control actuator	9.	Camshaft sprocket (INT) oil seal
10.	Engine oil pressure sensor	11.	Crankshaft pulley	12.	Crankshaft pulley bolt
13.	Front oil seal	14.	Front cover	15.	Filter
16.	O-ring	17.	Tension guide (upper)	18.	Slack guide
19.	Balancer unit sprocket	20.	Balancer unit timing chain tensioner	21.	Balancer unit timing chain
22.	O-ring	23.	Crankshaft sprocket	24.	Tension guide
25.	Crankshaft key	26.	Timing chain oil jet	27.	O-ring
28.	Electric intake valve timing control actuator target	A.	Refer to ELECTRIC INTAKE VALVE TIMING CONTROL ACTUATOR : Removal & Installation .	B.	Refer to Removal and Installation .
