EGR COOLER : Removal & Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Install the EGR cooler bracket and tighten the bolts to the specified torque in the sequence shown.

Courtesy of NISSAN NORTH AMERICA, INC.

EGR cooler bracket bolts

: 25.0 N.m (2.6 kg-m, 18 ft-lb)

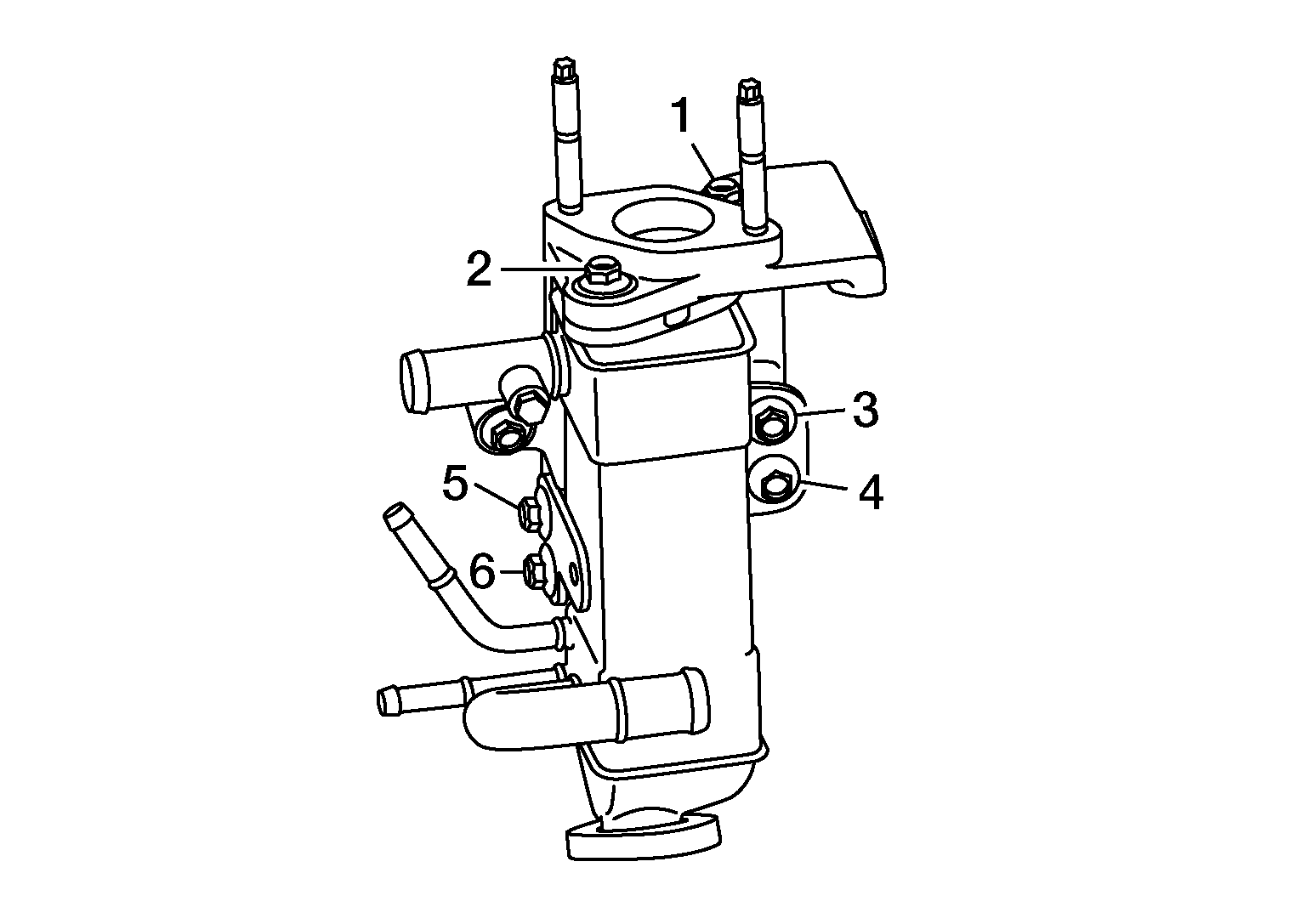

Install the EGR cooler and tighten the bolts to the specified torque in the sequence shown.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse EGR cooler gasket.

NOTE: Bolts 1 and 2 can be tightened from top of vehicle.

EGR cooler bolts

: 25.0 N.m (2.6 kg-m, 18 ft-lb)

Installation of the remaining components is in the reverse order of removal.
- Refill the engine coolant. Refer to Refilling .
