Drive Plate Lateral Run-Out

WARNING: This page is about a different variant/trim than selected.

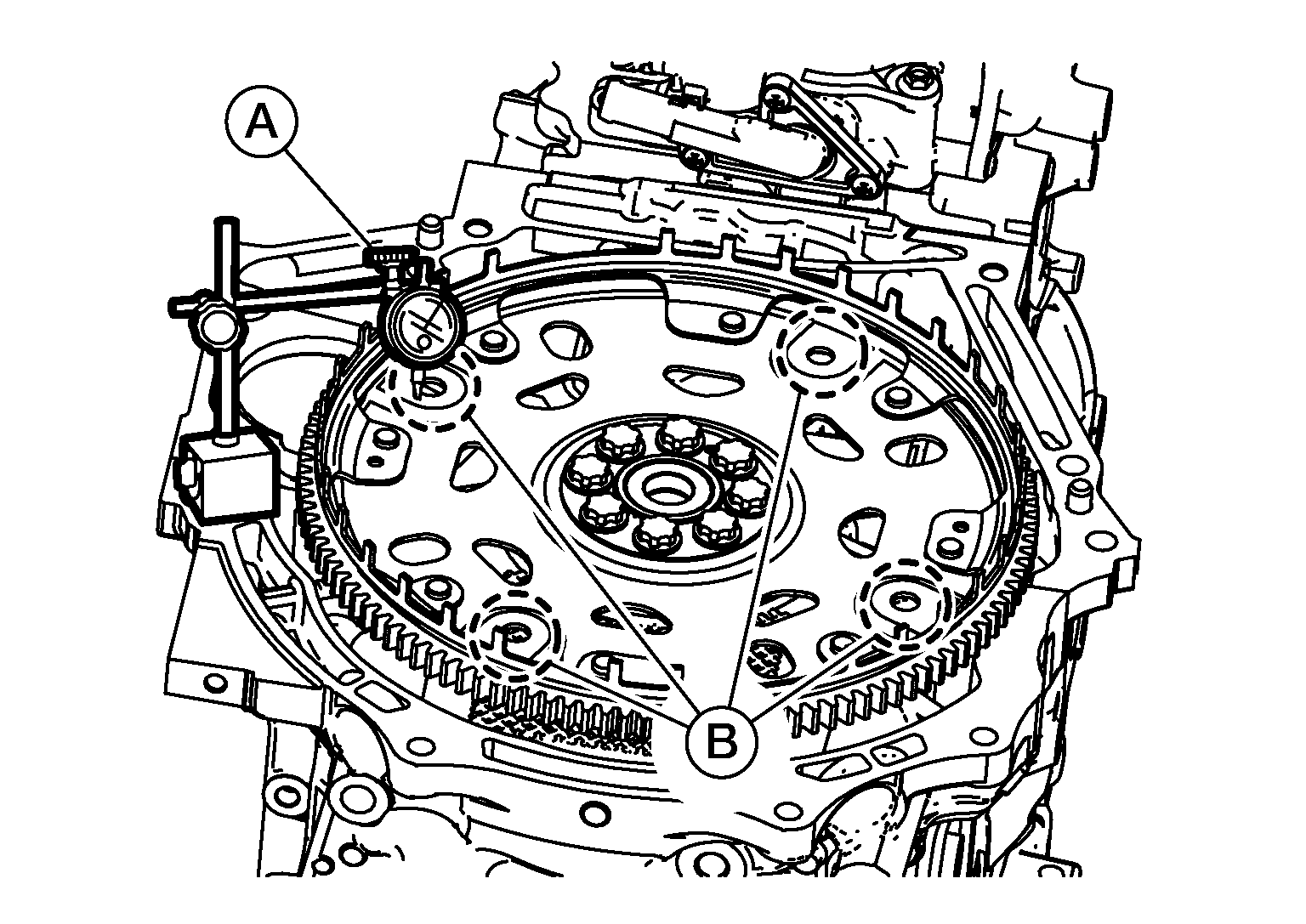

  1. Install drive plate to crankshaft and measure deflection with suitable tool (A).
    GNSAWBIA0221Z-221Courtesy of NISSAN NORTH AMERICA, INC.
  2. Measure deflection on the drive plate to torque converter contact surface (B). Measurements should be taken 11.0 - 20.6 mm (0.43 - 0.811 in) from the center of the torque converter bolt hole.

    Standard

    : 0.35 mm (0.014 in) or less.
  3. If the measurement value is outside the reference value, replace drive plate.
