CATALYST : Removal & Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Install studs (if removed).
CAUTION: Do not reuse studs.

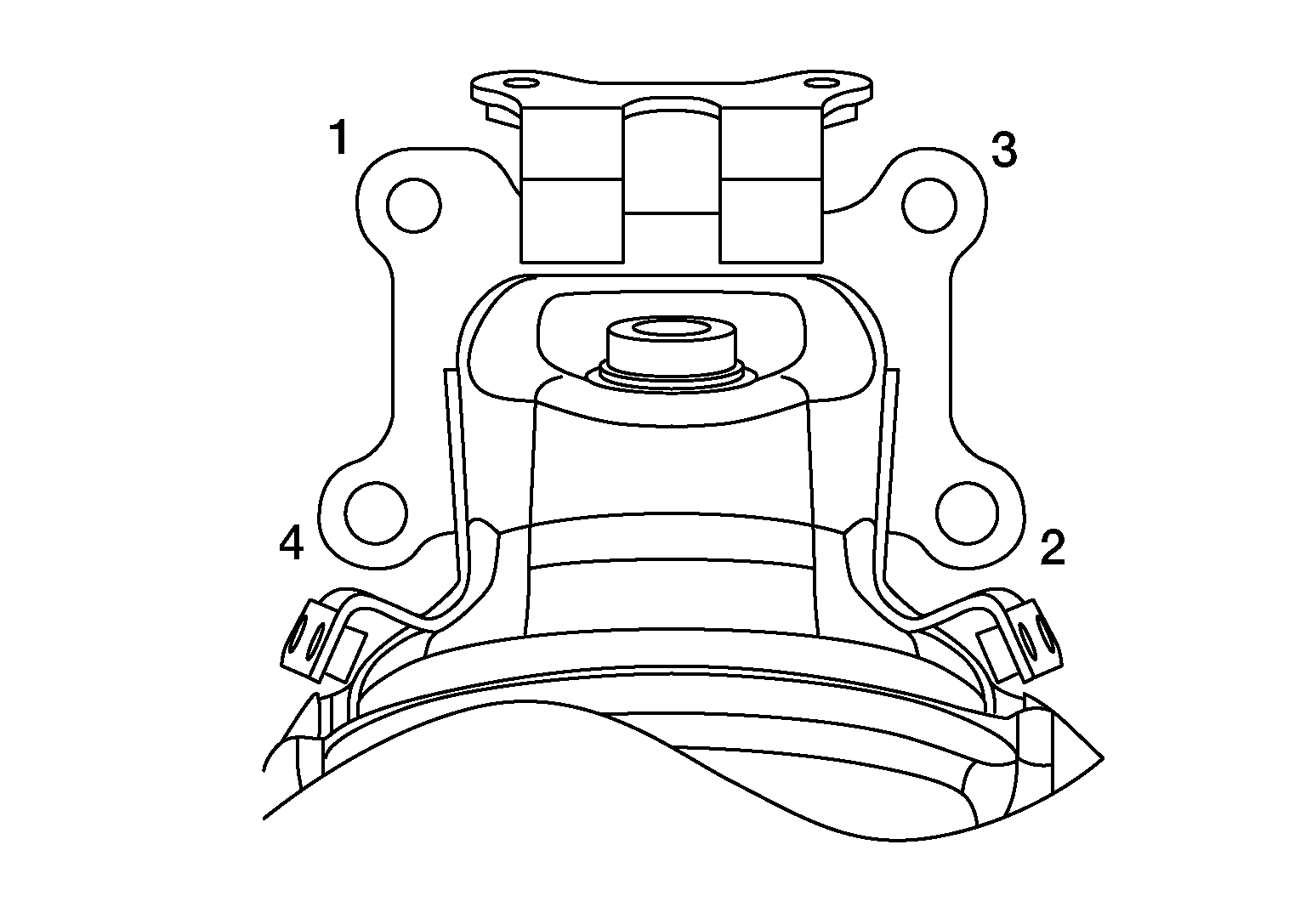

Install the catalyst and tighten the nuts to the specified torque in the sequence shown.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse catalyst gasket.

Catalyst nuts

: 41.7 N.m (4.3 kg-m, 31 ft-lb)

Installation of the remaining components is in the reverse order of removal.

CAUTION:

Before installing the air fuel ratio (A/F) sensor-1, clean the threads using oxygen sensor thread cleaner tool and apply anti-seize lubricant or equivalent.

Oxygen sensor thread cleaner

: -- (J-43897-18)

Do not over-tighten the air fuel ratio (A/F) sensor-1. Doing so may cause damage, resulting in a malfunction and the MIL coming on.

Tool number

: KV9910J0050 (J-44626)
