PR25DD engine: Installation
WARNING: This page is about a different variant/trim than selected.
Installation is in the reverse order of removal.
- If replacing mass air flow sensor, perform "AIR FUEL RATIO INITIAL LEARNING". Refer to Work Procedure .

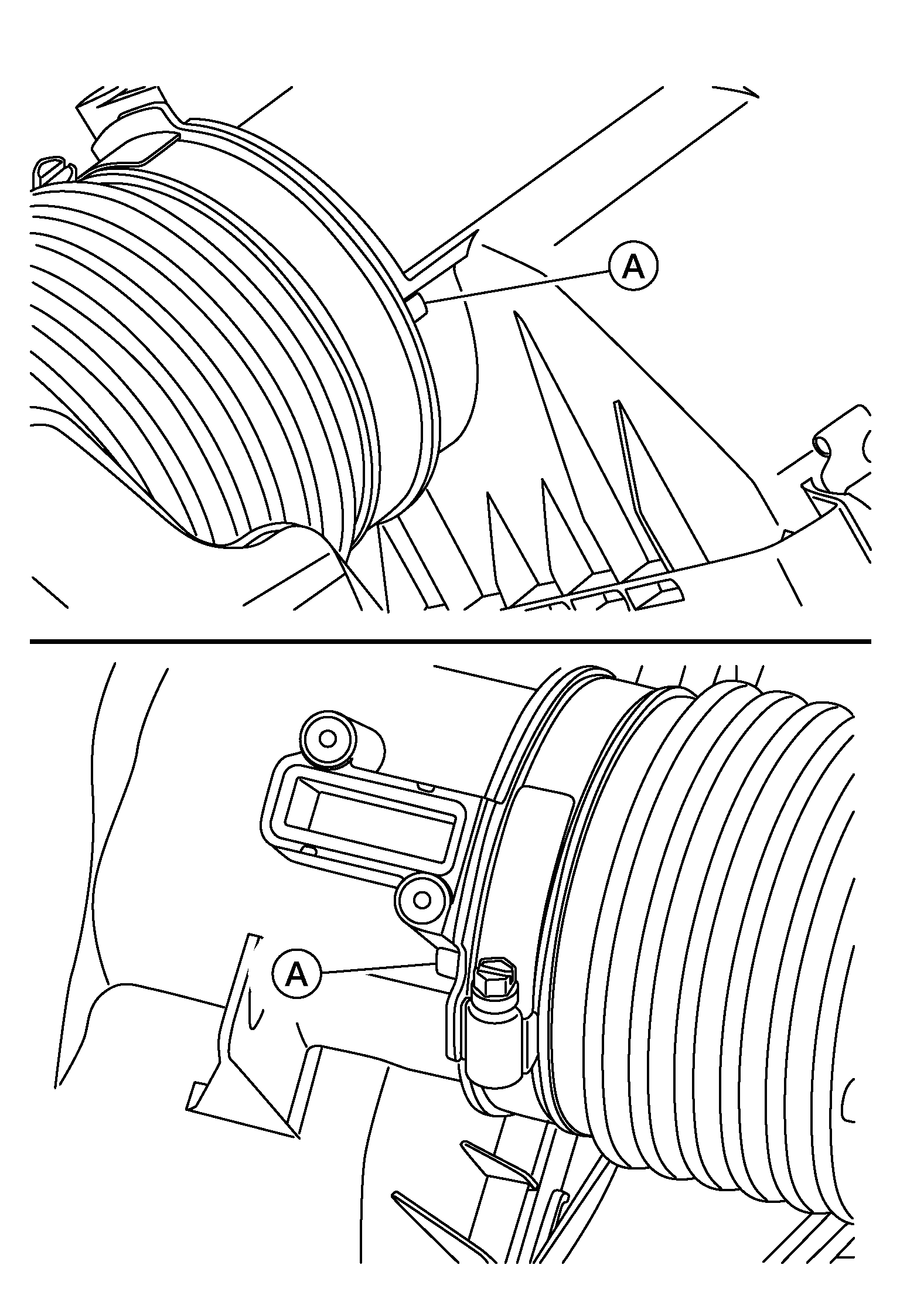

- When installing air cleaner assembly, make sure to align tabs (A) of air duct 1 as shown.

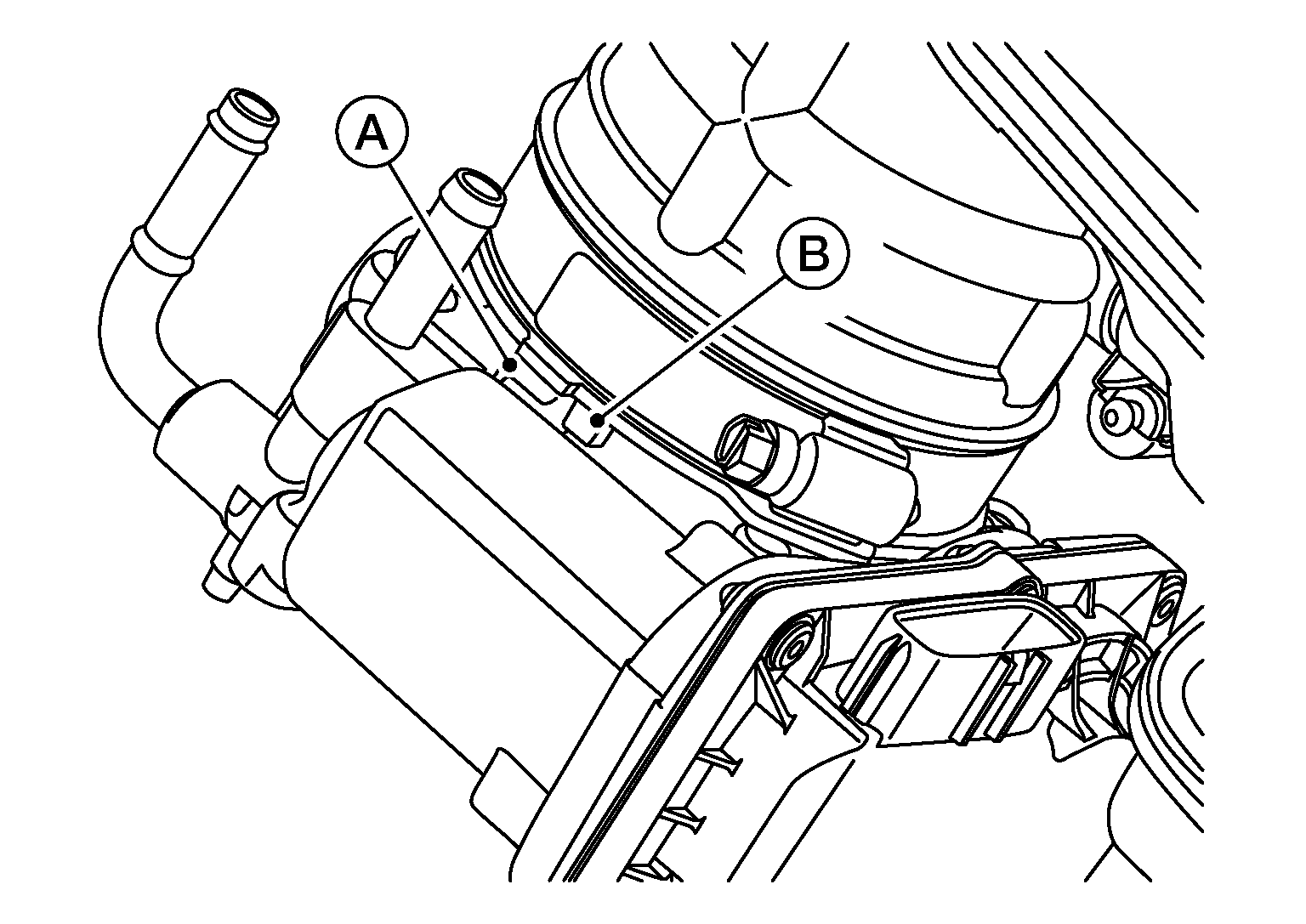

- If removed, align tab (B) of air duct 1 with tab (A) on electric throttle control actuator.
