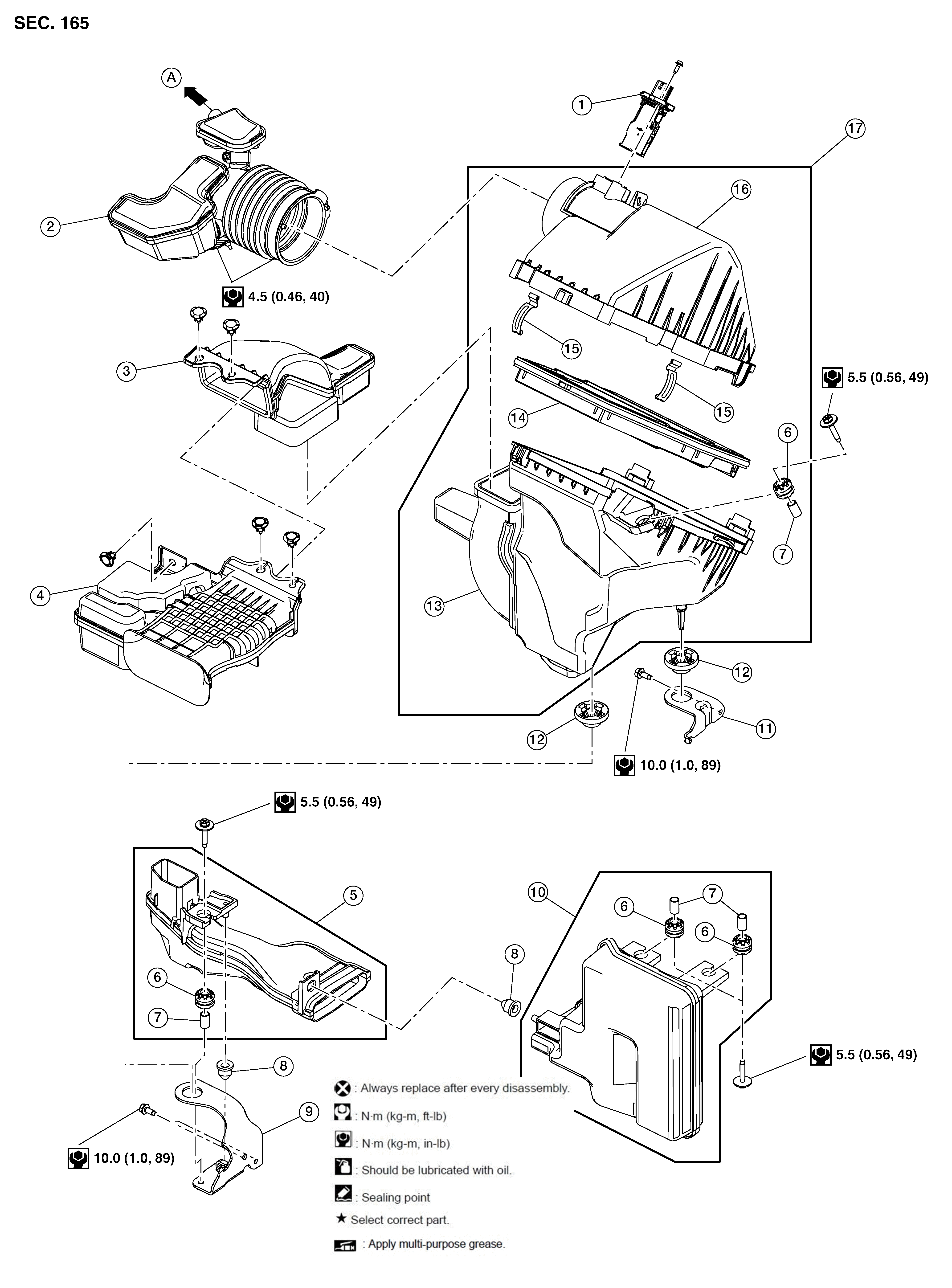

AIR CLEANER AND AIR DUCT : Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Mass air flow sensor |
2. |
Air duct 1 |
3. |
Air duct 2 |
|
4. |
Air duct 3 |
5. |
Resonator A |
6. |
Grommet |
|
7. |
Grommet insert |
8. |
Mounting rubber |
9. |
Air cleaner bracket A |
|
10. |
Resonator B |
11. |
Air cleaner bracket B |
12. |
Mounting rubber |
|
13. |
Air cleaner case (lower) |
14. |
Air cleaner filter |
15. |
Clip |
|
16. |
Air cleaner case (upper) |
17. |
Air cleaner assembly |
A. |
To air breather hose. Refer to Exploded View . |
