PR25DD engine: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove wheel and tire (RH). Refer to ROAD WHEEL TIRE : Adjustment .
  2. Remove the engine side cover. Refer to FENDER PROTECTOR : Exploded View .

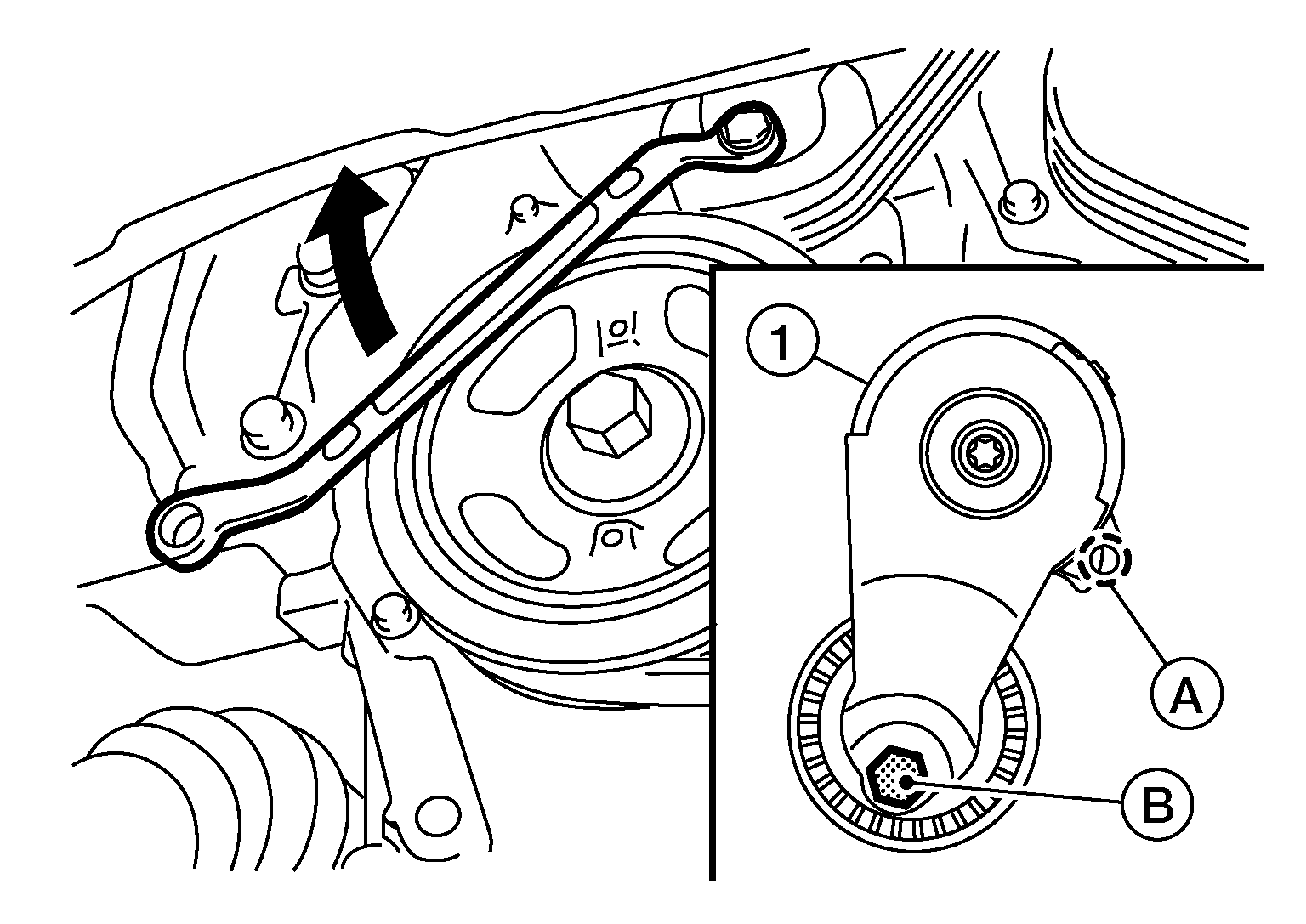

  3. Securely hold the hexagonal part (B) of the drive belt auto tensioner (1) with a suitable tool and move it to the direction shown.
    GNSALBIA0499Z-499Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Avoid placing hands in a location where pinching may occur if suitable tool accidentally comes off.
  4. Insert a suitable tool approximately 6 mm (0.24 in.) in diameter into the hole (A) of the retaining boss to secure the drive belt auto tensioner.
    NOTE: Keep drive belt auto tensioner arm locked after drive belt is removed.
  5. Remove drive belt.
