Main Bearing Crush Height

WARNING: This page is about a different variant/trim than selected.

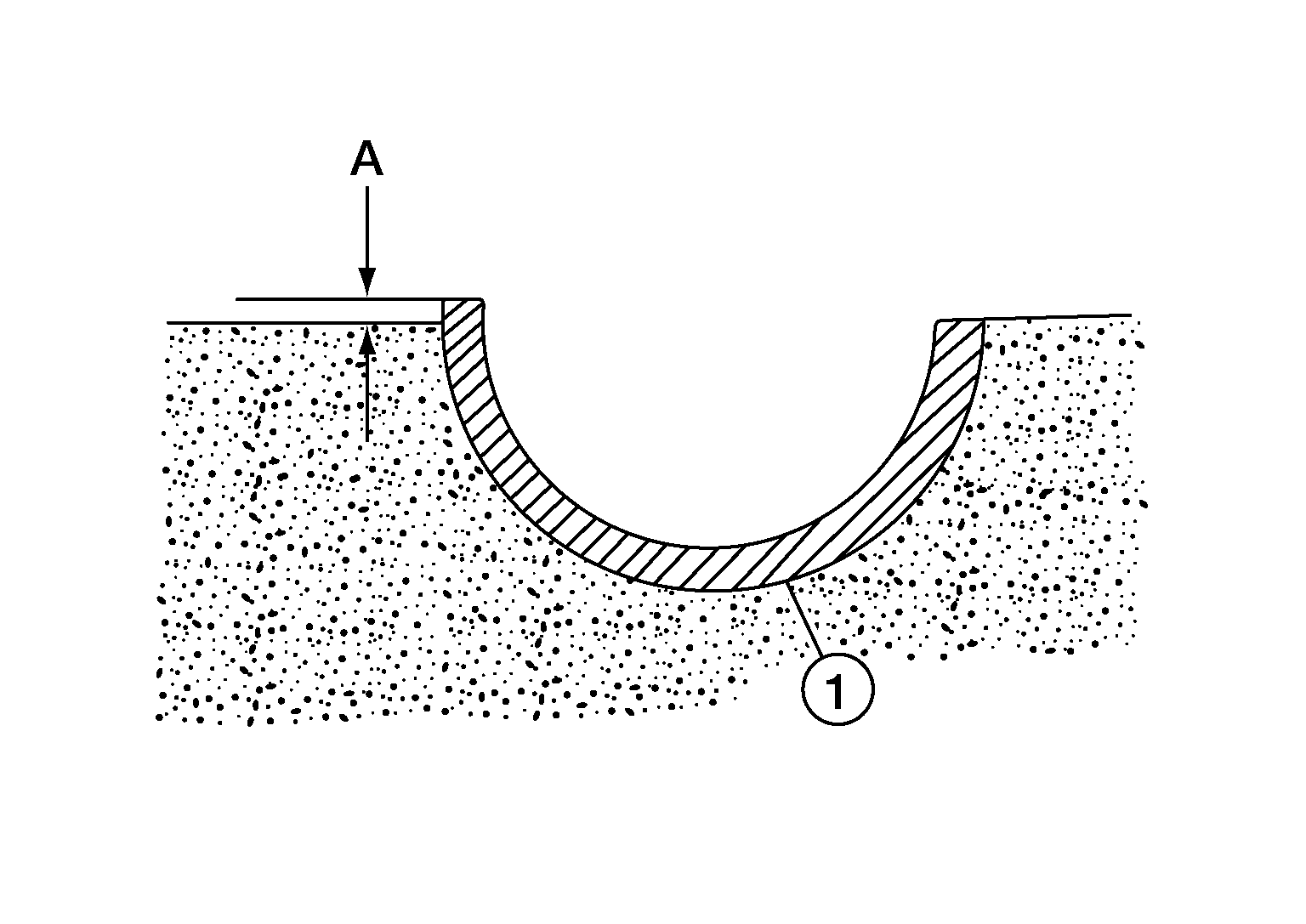

When ladder assembly is removed after being tightened to specified torque with main bearings (1) installed, tip end of bearing must protrude (A). Refer to CYLINDER BLOCK : Disassembly & Assembly .

Courtesy of NISSAN NORTH AMERICA, INC.

(A)

: Example

Standard: There must be crush height.
If standard is not met, replace main bearings.
