Crankshaft RUNOUT
WARNING: This page is about a different variant/trim than selected.

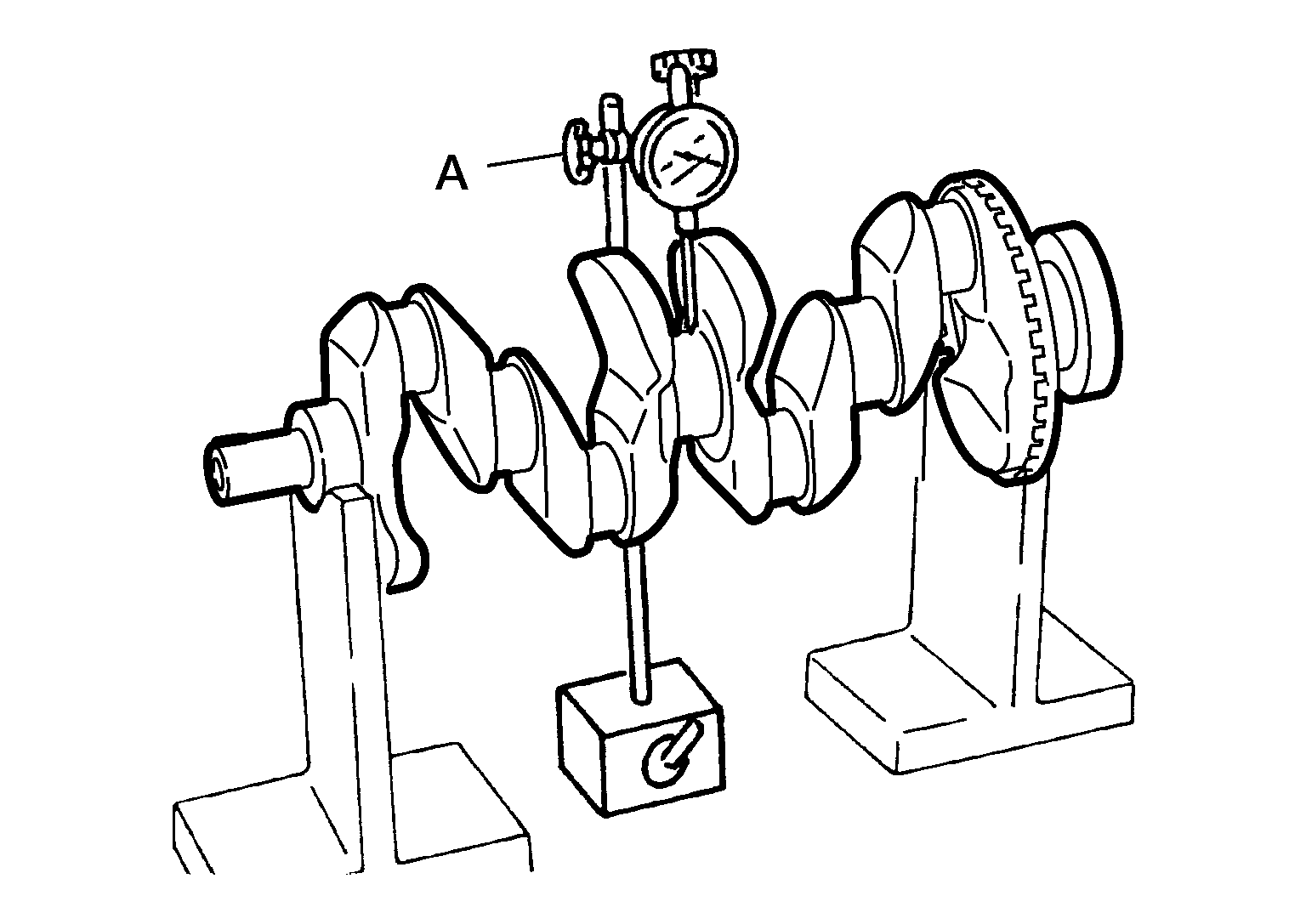

- Place V-block on precise flat table to support the journals on both ends of crankshaft.
- Place suitable tool (A) straight up on No. 3 journal.
- While rotating crankshaft, read movement of pointer on suitable tool. (Total indicator reading)
Limit
: Refer to CYLINDER BLOCK : Service Data .
- If measured value exceeds limit replace crankshaft.
