Crankshaft End Play
WARNING: This page is about a different variant/trim than selected.

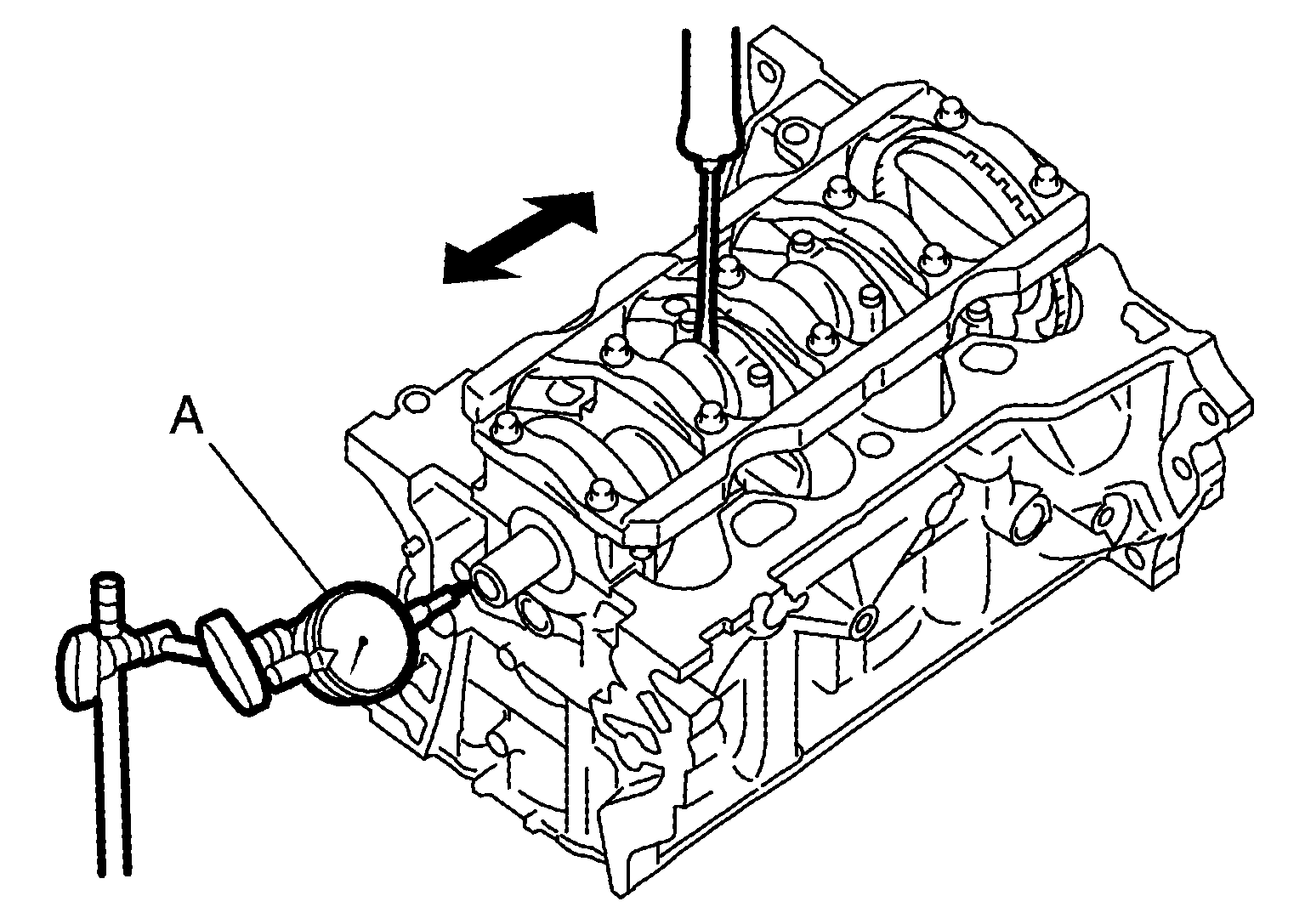

- Measure clearance between thrust bearings and crankshaft arm when crankshaft is moved fully forward or backward using suitable tool (A).
Standard and Limit
: Refer to CYLINDER BLOCK : Service Data .
- If measured value exceeds limit replace thrust bearings and measure again. If it still exceeds limit replace crankshaft.
