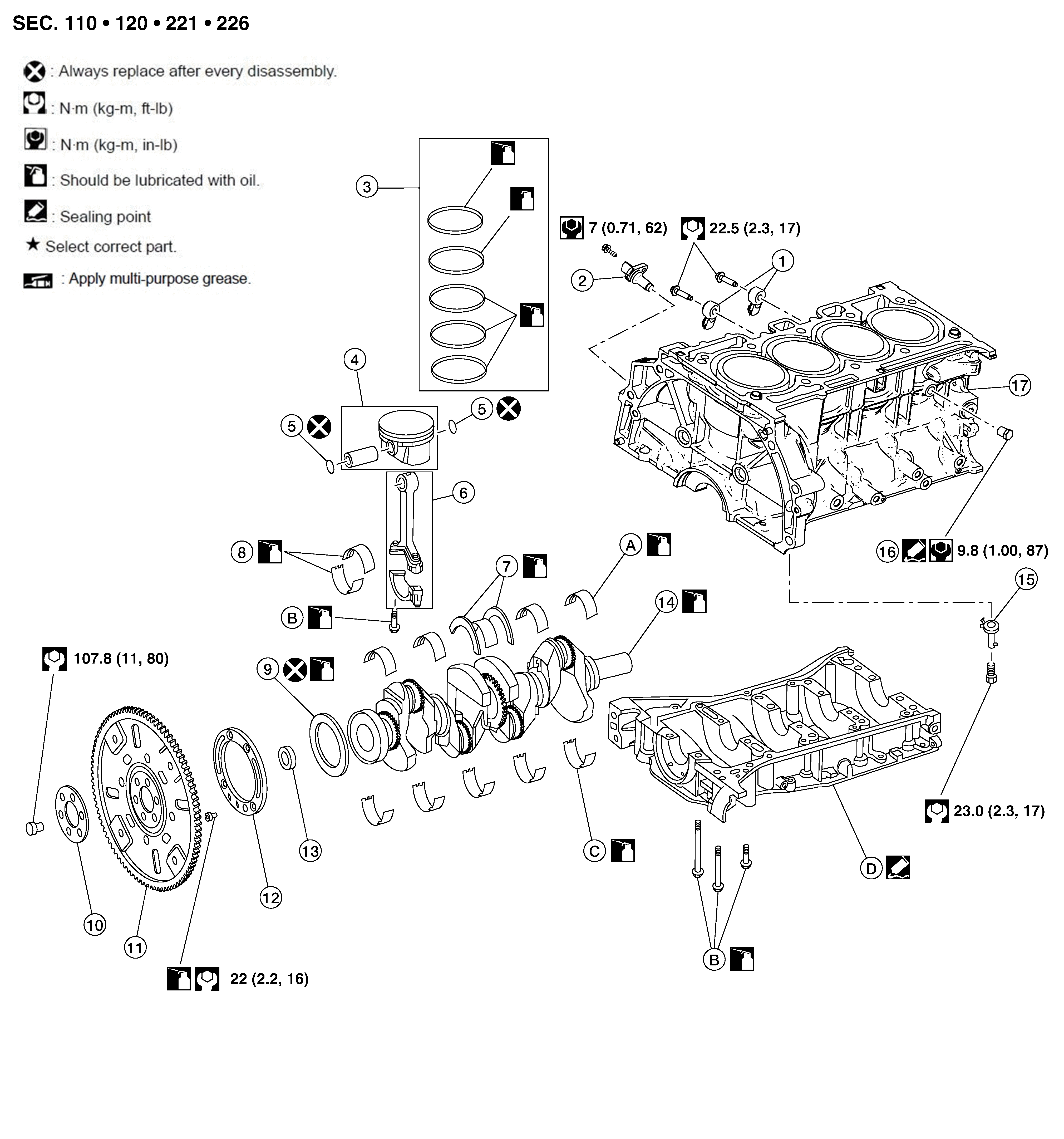

CYLINDER BLOCK : Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Knock sensor |
2. |
Crankshaft position sensor |
3. |
Piston rings |
|
4. |
Piston |
5. |
Snap ring |
6. |
Connecting rod |
|
7. |
Thrust bearing |
8. |
Connecting rod bearing |
9. |
Rear oil seal |
|
10. |
Reinforcement plate |
11. |
Drive plate |
12. |
Signal plate |
|
13. |
Pilot converter |
14. |
Crankshaft |
15. |
Oil jet |
|
16. |
Drain plug |
17. |
Cylinder block |
A. |
Main bearing (upper) |
|
B. |
Refer to CYLINDER BLOCK : Disassembly & Assembly . |
C. |
Main bearing (lower) |
D. |
Ladder assembly |
