PR25DD engine

WARNING: This page is about a different variant/trim than selected.

With CONSULT
Check idle speed in "DATA MONITOR" mode of "ENGINE" using CONSULT.
Without CONSULT

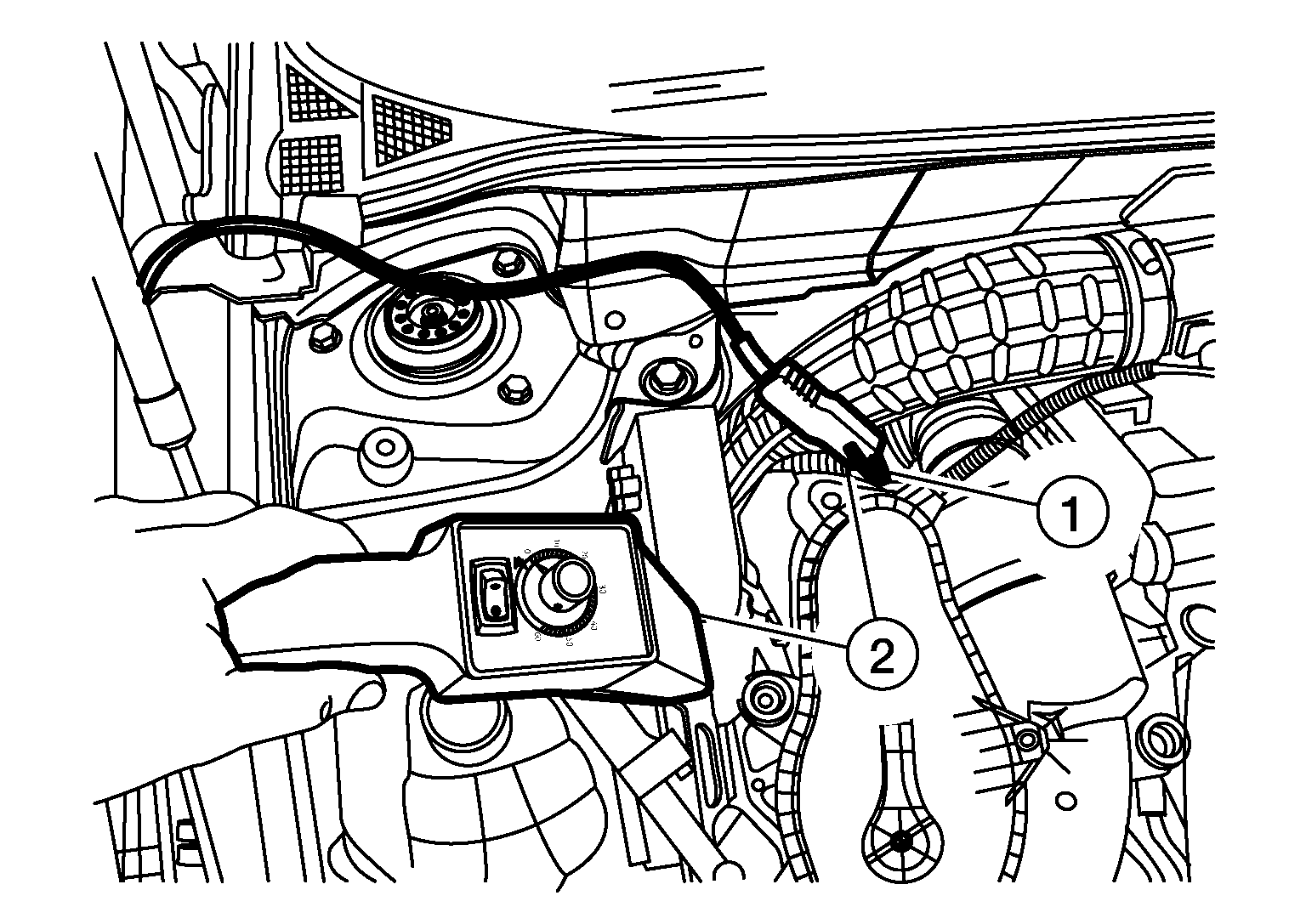

Attach induction type (current detection type) rev counter to loop wire as shown and check idle speed.

Courtesy of NISSAN NORTH AMERICA, INC.
