Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Installation is in the reverse order of removal.
- After installation, refill engine coolant and check for leaks. Refer to Refilling .
- After installation, refill CVT fluid and check for leaks. Refer to Adjustment .
Radiator
NOTE:
When installing radiator, check that upper and lower mounting rubbers are fitted in each mounting hole of radiator core support and radiator mounts.
Radiator hose

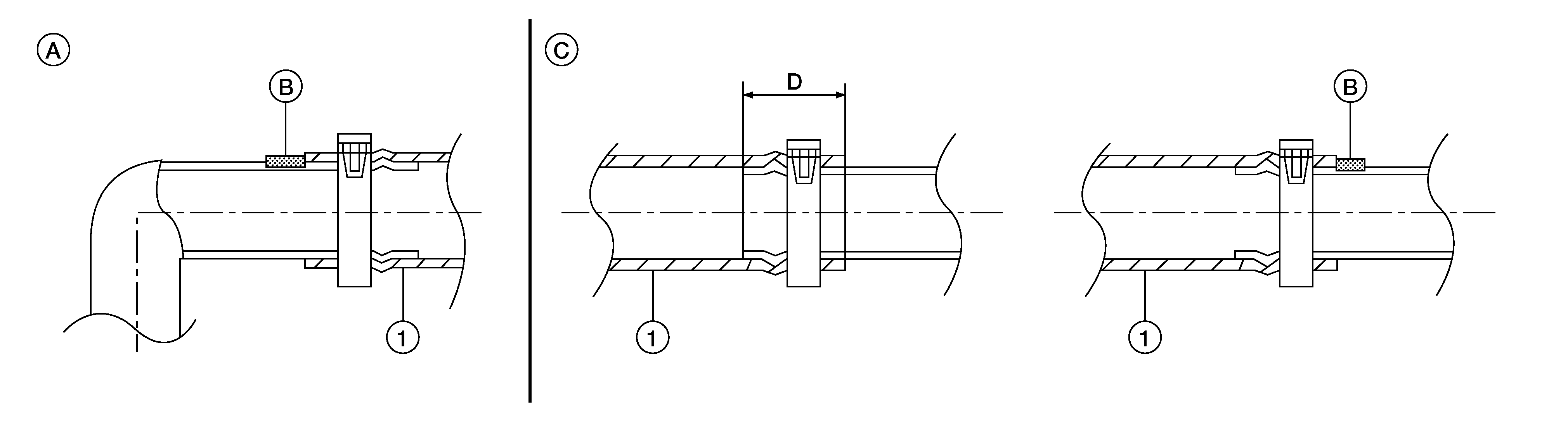

- When installing radiator hose (1), insert the hose until it contacts the stopper (B), when a stopper is present. When a stopper is not present, insert the hose by the specified dimension (D).
A.
Radiator side
C.
Engine side
D.
33 mm (1.30 in)
- Refer to the following table when installing hose clamps.
Radiator hose
Hose end
Paint mark
Position of hose clamp*
Radiator hose (upper)
Radiator side
Vehicle right
D
Engine side
Vehicle left
E
Radiator hose (lower)
Radiator side
Vehicle left
C
Engine side
Vehicle right
A
CVT fluid cooler hoses
Radiator side
Refer to Removal and Installation .
*: Refer to the illustration for the orientation of the hose clamp tabs.
B.
90 deg.
E.
60 deg.
Vehicle upper
- The orientation of the hose clamp tabs must be within the specified range (B) of the specified position (A).
Range (B)
: +/- 15 deg.
- When installing hose clamp (1), make sure that the hose clamp is installed within the specified dimension (A) from the end of the hose (2).
- Radiator hose (upper/lower) clamps:
Dimension (A)
: 3 -- 7 mm (0.12 -- 0.28 in)
- CVT fluid cooler hose clamps. Refer to Removal and Installation .
- Radiator hose (upper/lower) clamps:
