ENGINE MECHANICAL SYSTEM : Special Service Tool

WARNING: This page is about a different variant/trim than selected.

The actual shape of the tools may differ from those illustrated here.

Tool number (TechMate No.) Tool name	Description
KV10111100 (J-37228) Seal cutter	Courtesy of NISSAN NORTH AMERICA, INC.	Removing oil pan (upper and lower), etc.

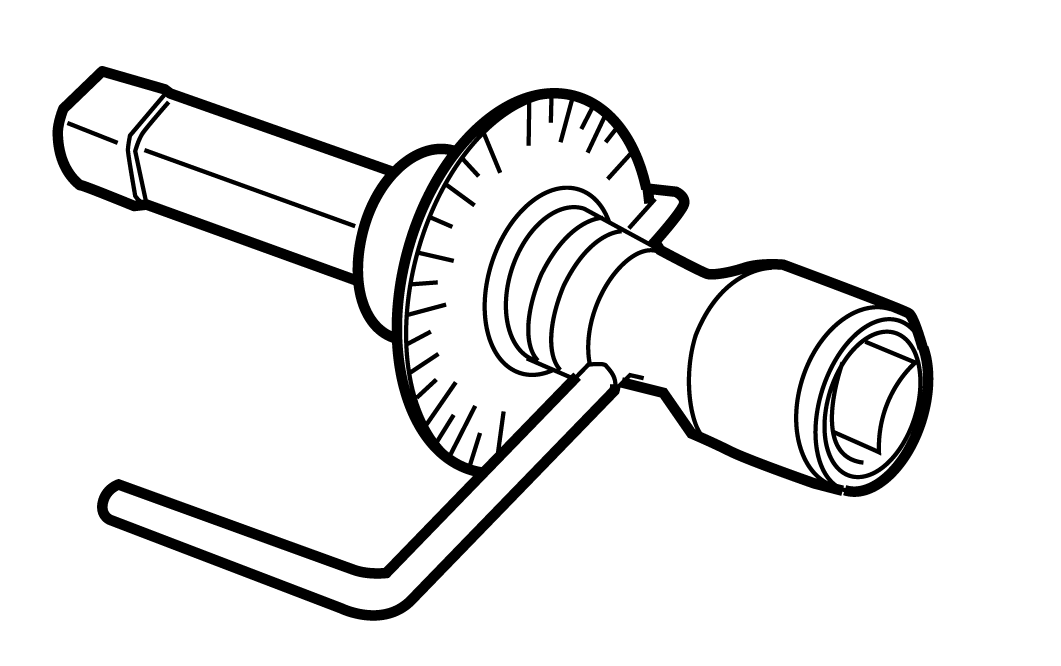

KV10112100 (BT-8653-A) Angle wrench	Courtesy of NISSAN NORTH AMERICA, INC.	Tightening bolts for main bearing cap, cylinder head, etc.
KV101197S0 (J-50364) Injector seal drift set KV10119730 (--) Seal installer KV10119710 (--) Drift KV10119720 (--) Seal guide	Courtesy of NISSAN NORTH AMERICA, INC.	Installing fuel injector seal
-- (J-48891) Spark plug wrench	Courtesy of NISSAN NORTH AMERICA, INC.	Removing and installing spark plug
KV38107900 (J-52469-1) Differential side oil seal protector	Courtesy of NISSAN NORTH AMERICA, INC.	Installing drive shaft A: 32 mm (1.26 in) dia B: Minimum 23 mm (0.91 in)
-- (J-52730) Ring gear stopper	Courtesy of NISSAN NORTH AMERICA, INC.	Removing and installing drive plate
KV40108800 (J-52982) Lock nut chisel (Cape chisel)	Courtesy of NISSAN NORTH AMERICA, INC.	Removing wheel hub lock nut
