PR25DD engine: Installation
Installation is in the reverse order of removal.
- Hose clamp should not interfere with the spool or bulge.
*Refer to the following when installing CVT water hose.
|
Water hose (1) |
Installation side tube (2) |
Direction of paint mark |
Hose insertion depth (L) |
|
CVT water hose A |
CVT oil warmer |
Align with the bulge on water pump housing.. |
End reaches the 2-stage bulge. |
|
Water pump housing |
Align with the bulge on water pump housing. |
End reaches the 2-stage bulge. |
|
|
CVT water hose B |
Thermo valve |
Frontward |
End touches thermo valve. |
|
CVT oil cooler |
Frontward |
End touches thermo valve. |

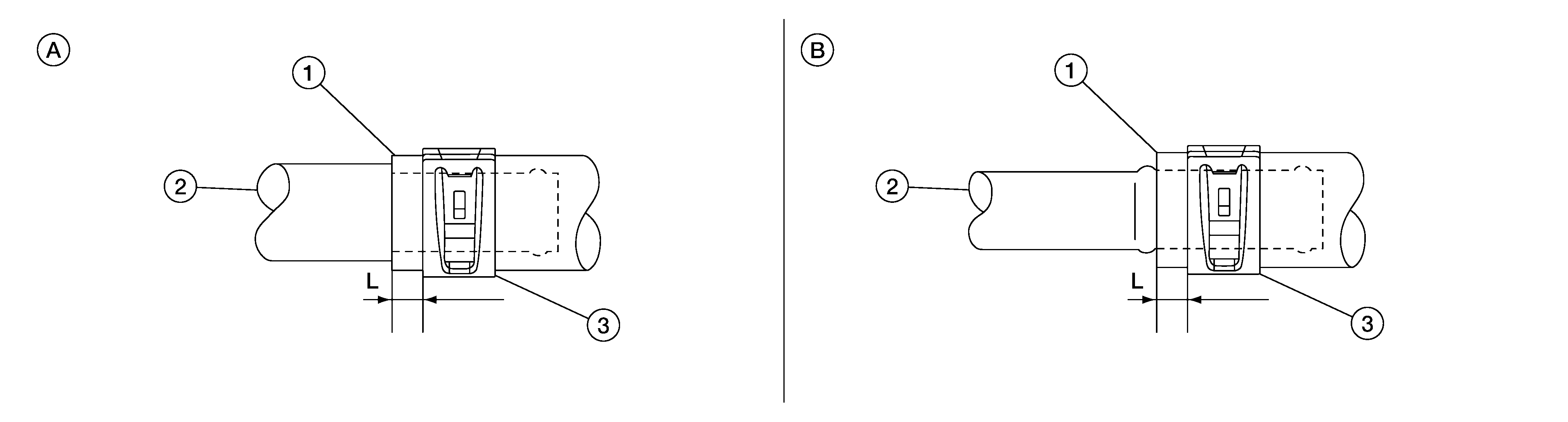

*Refer to the following when installing hose clamps.
|
CVT Water hose (1) |
Installation side tube (2) |
Hose clamp (3) |
|
|
Direction of tab |
Clamping position * |
||
|
CVT Water hose A |
CVT oil warmer |
Forward |
A: 5 - 7 mm (0.20 - 0.28 in) (L) from hose end. |
|
Water pump housing |
Upward |
||
|
CVT Water hose B |
Oil cooler |
Forward |
|
|
Thermo valve |
Forward |
||
