TRANSMISSION RANGE SWITCH : Exploded View

WARNING: This page is about a different variant/trim than selected.

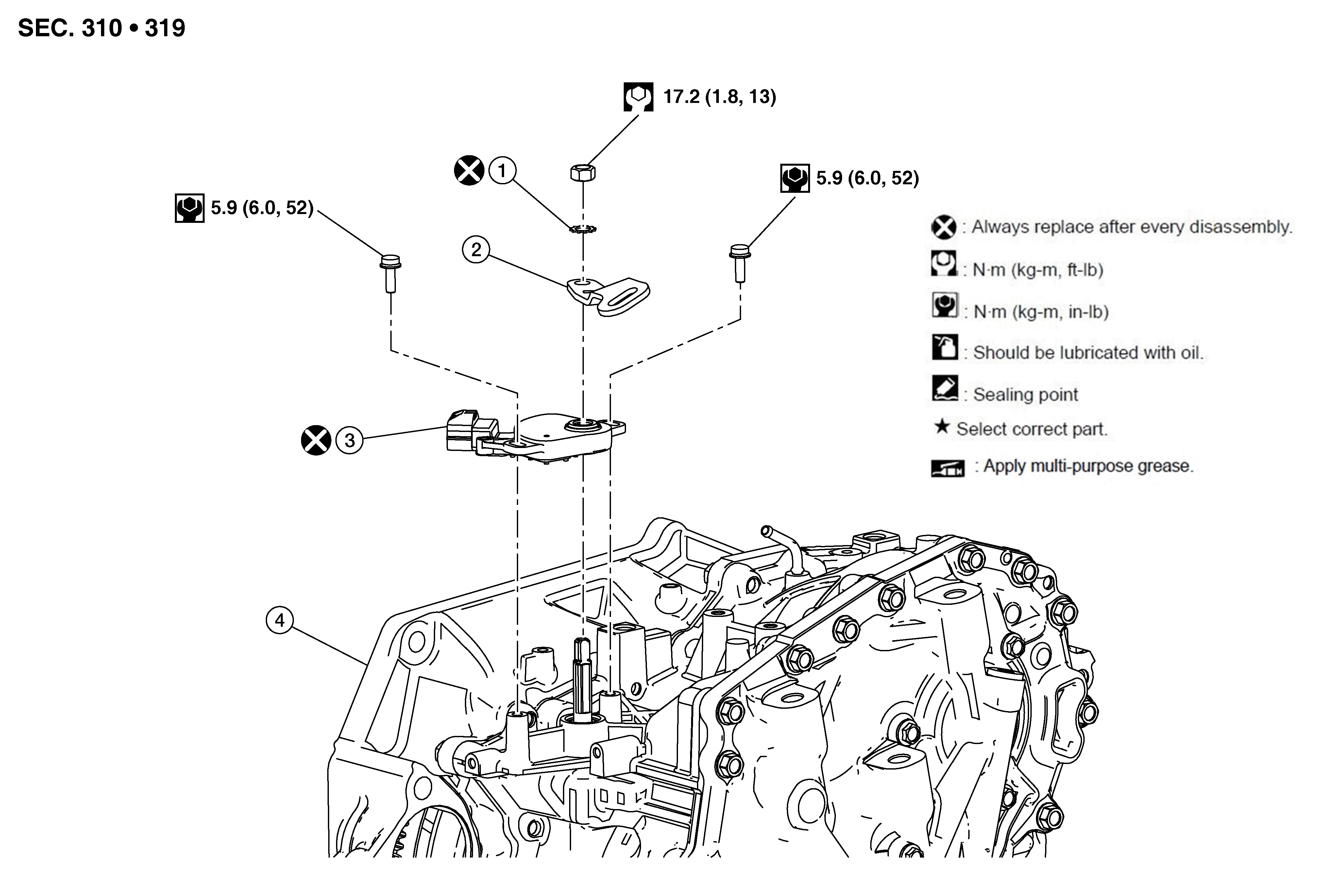

Fig 1: Transmission Range Switch With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Lock washer	2.	Manual lever	3.	Transmission range switch
4.	Transaxle assembly
