TCM : Removal & Installation: Removal
WARNING: This page is about a different variant/trim than selected.
- Partially remove fender protector (LH). Refer to FENDER PROTECTOR : Exploded View .
- Remove resonator B. Refer to Removal and Installation .
- Disconnect the harness connectors from the electric intake valve timing control module and the TCM.

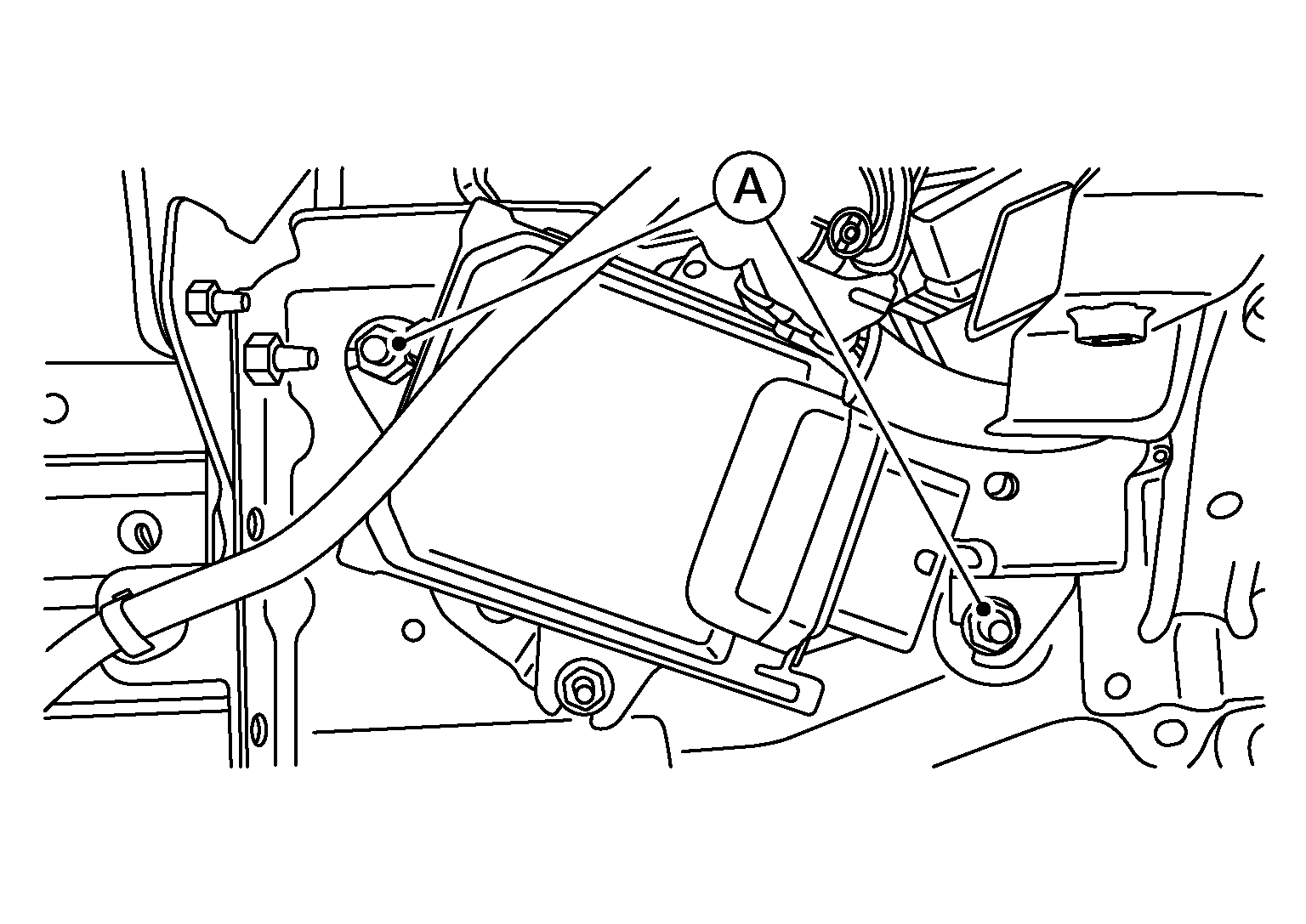

- Remove nuts (A) and TCM bracket.
- Remove nuts and remove TCM from TCM bracket.
