CVT SHIFT SELECTOR : Exploded View

WARNING: This page is about a different variant/trim than selected.

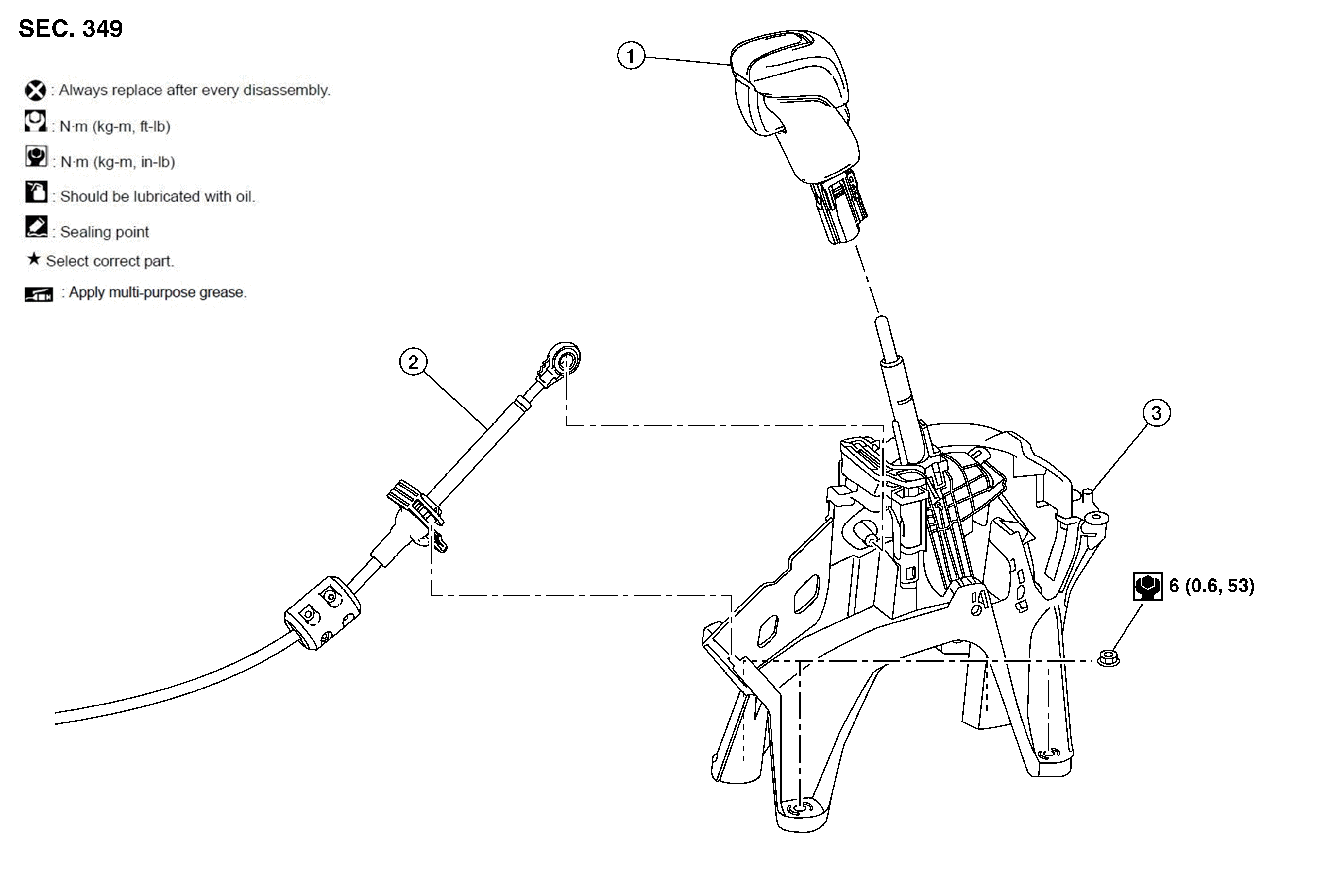

Fig 1: Shift Selector With Torque Specifications
GNSALDIA0371Z-371Courtesy of NISSAN NORTH AMERICA, INC.

1.

Selector lever knob

2.

Control cable

3.

CVT shift selector
