PLUG : Exploded View

WARNING: This page is about a different variant/trim than selected.

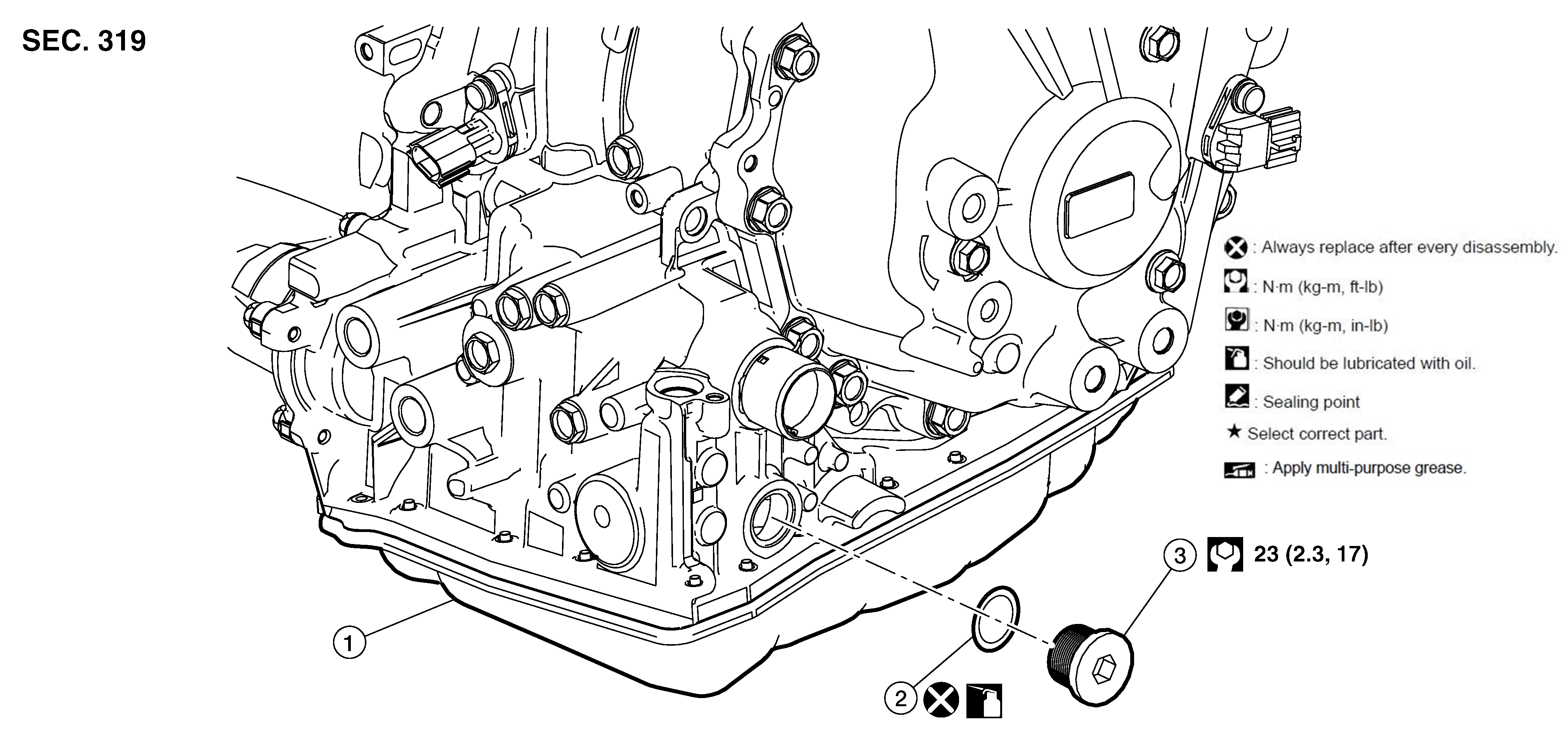

Fig 1: Plug With Torque Specifications
GNSALDIA0114Z-114Courtesy of NISSAN NORTH AMERICA, INC.

1.

Transaxle assembly

2.

O-ring

3.

Plug
