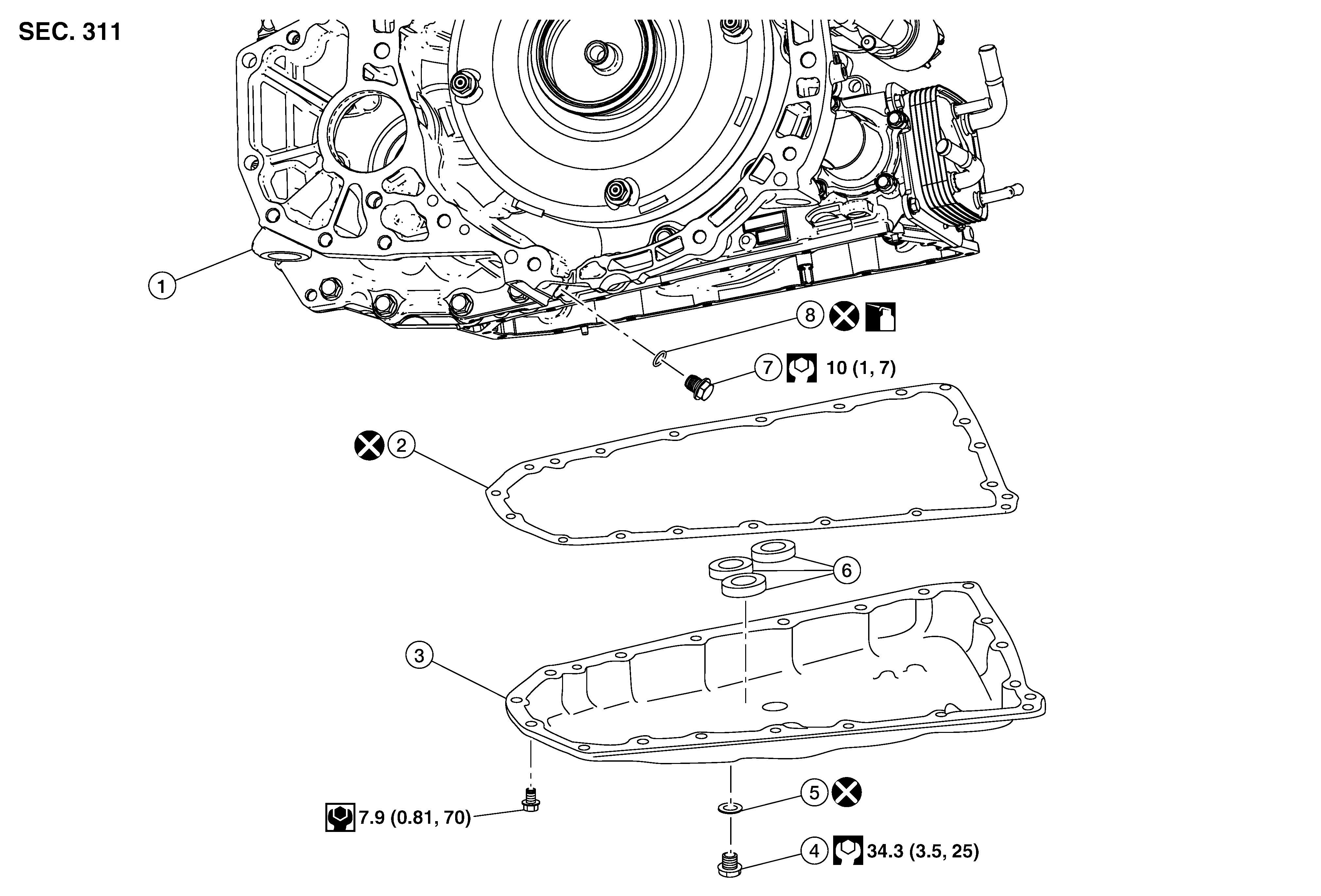

OIL PAN : Exploded View
WARNING: This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Transaxle assembly
|
2.
|
Oil pan gasket
|
3.
|
Oil pan
|
|
4.
|
Drain plug
|
5.
|
Drain plug gasket
|
6.
|
Magnet
|
|
7.
|
Overflow plug
|
8.
|
O-ring
|
