PR25DD engine: Installation
Installation is in the reverse order of removal.
- Hose clamps should not interfere with the spool or bulge.

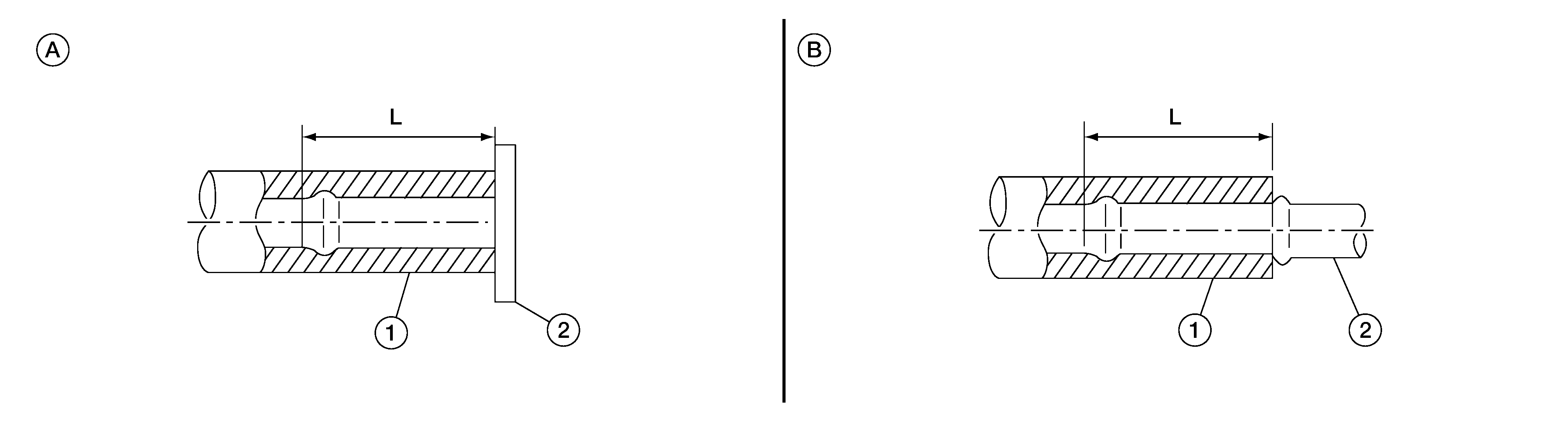

*Refer to the following when installing CVT fluid cooler hoses
|
Hose name (1) |
Installation side tube (2) |
Direction of paint mark |
Hose insertion depth (L) |
|
CVT fluid cooler hose A |
CVT oil warmer |
Upward |
A: End reaches the CVT oil warmer. |
|
CVT fluid cooler hose A |
Radiator |
Upward |
B: End reaches the 2-step bulge |
|
CVT fluid cooler hose B |
CVT oil warmer |
Upward |
A: End reaches the CVT oil warmer. |
|
CVT fluid cooler hose B |
Radiator |
Rearward |
B: End reaches the 2-step bulge |

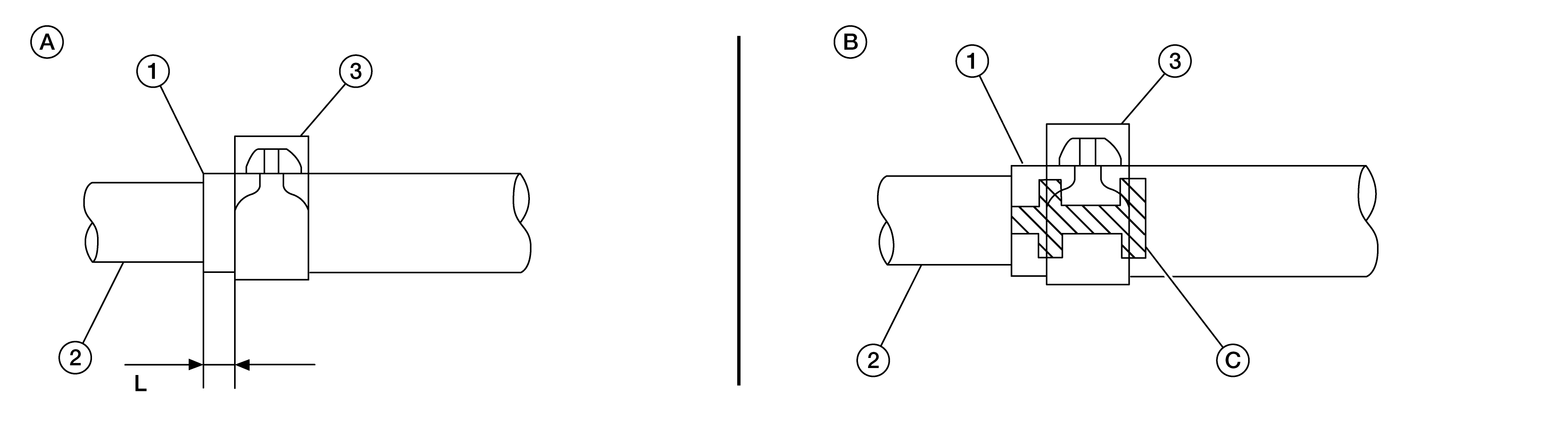

*Refer to the following when installing CVT fluid cooler hoses
|
Hose name (1) |
Installation side tube (2) |
Hose clamp (3) |
|
|
Direction of tab |
Clamping position |
||
|
CVT fluid cooler hose A |
CVT oil warmer |
Upward |
B: Align with the paint mark (C) as shown in the figure. |
|
CVT fluid cooler hose B |
CVT fluid cooler hose D |
Upward |
A: 3 - 7 mm (0.12 - 0.28 in) (L) from hose end |
Adjust the CVT fluid level. Refer to Adjustment .
