FLUID COOLER SYSTEM : Exploded View
WARNING: This page is about a different variant/trim than selected.
|

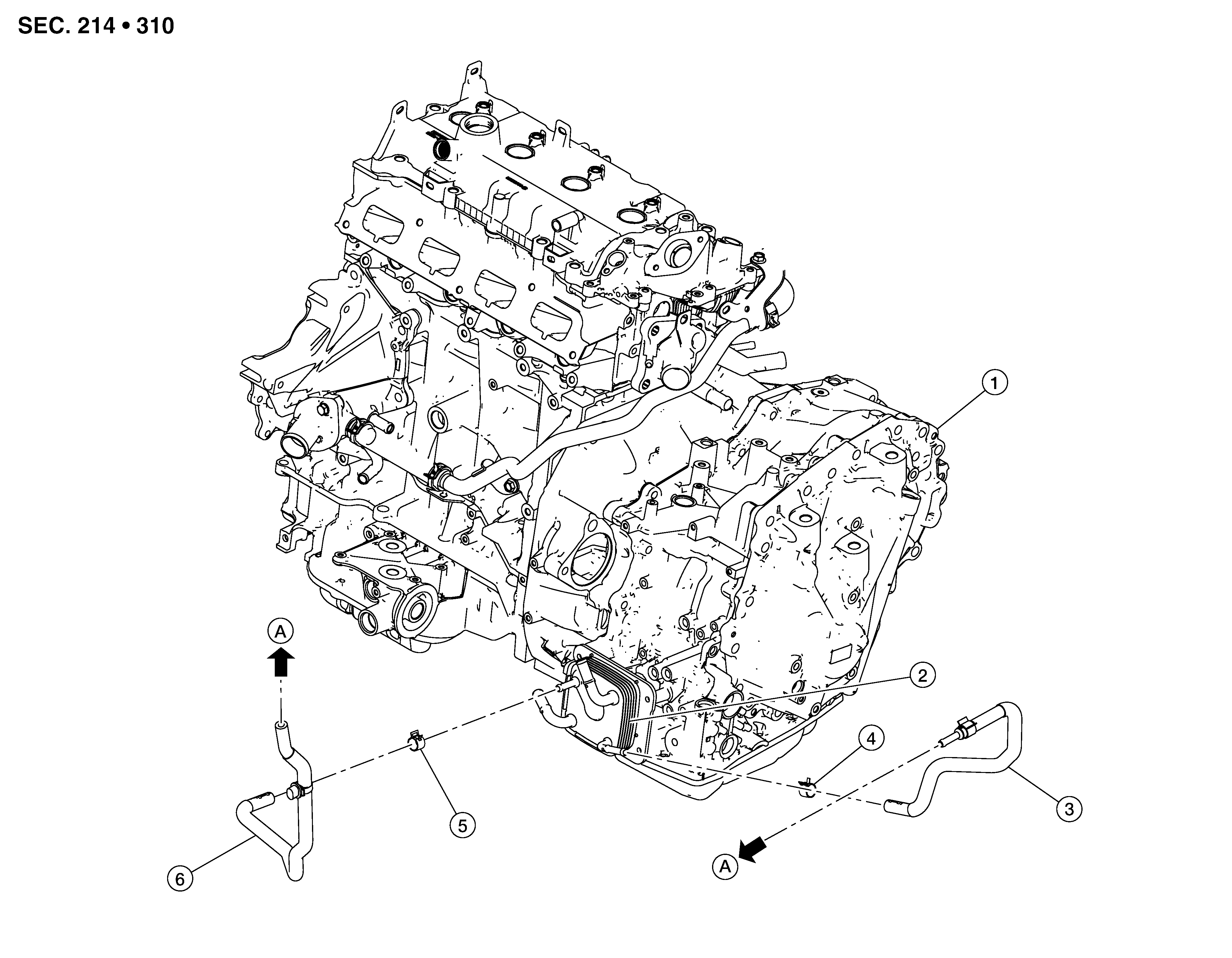

1. |
Transaxle assembly |
2. |
CVT warmer assembly |
3. |
CVT fluid cooler hose A |
|
4. |
Hose clamp |
5. |
Hose clamp |
6. |
CVT fluid cooler hose B |
|
A. |
To the radiator. Refer to Exploded View . |
