CONTROL VALVE : Removal & Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect battery negative terminal. Refer to BATTERY DISCONNECT : Removal & Installation .
  2. Remove the front under cover. Refer to FRONT UNDER COVER : Removal & Installation .
  3. Remove drain plug from oil pan and then drain the CVT fluid.
  4. Remove drain plug gasket.
    CAUTION: Do not reuse drain plug gasket.
  5. Remove the oil pan bolts, and then remove the oil pan and oil pan gasket.
    CAUTION: Do not reuse oil pan gasket.
  6. Remove the magnets from the oil pan.
    NOTE: Be sure to note the location of the magnets in the oil pan before removal.
  7. Use a suitable tool (A) between the manual plate (3) and bolt (B) and remove lock nut (1). Remove spring washer (2) and manual plate.
    CAUTION:
    • Insert suitable tool between the manual plate and bolt (B) and remove lock nut while holding the manual plate in a fixed position.
    • Be sure not to damage the control valve while using suitable tool.
    GNSALDIA0189Z-189Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  8. Remove the oil strainer assembly bolts (A) and remove the oil strainer assembly.
    GNSALDIA0911Z-911Courtesy of NISSAN NORTH AMERICA, INC.

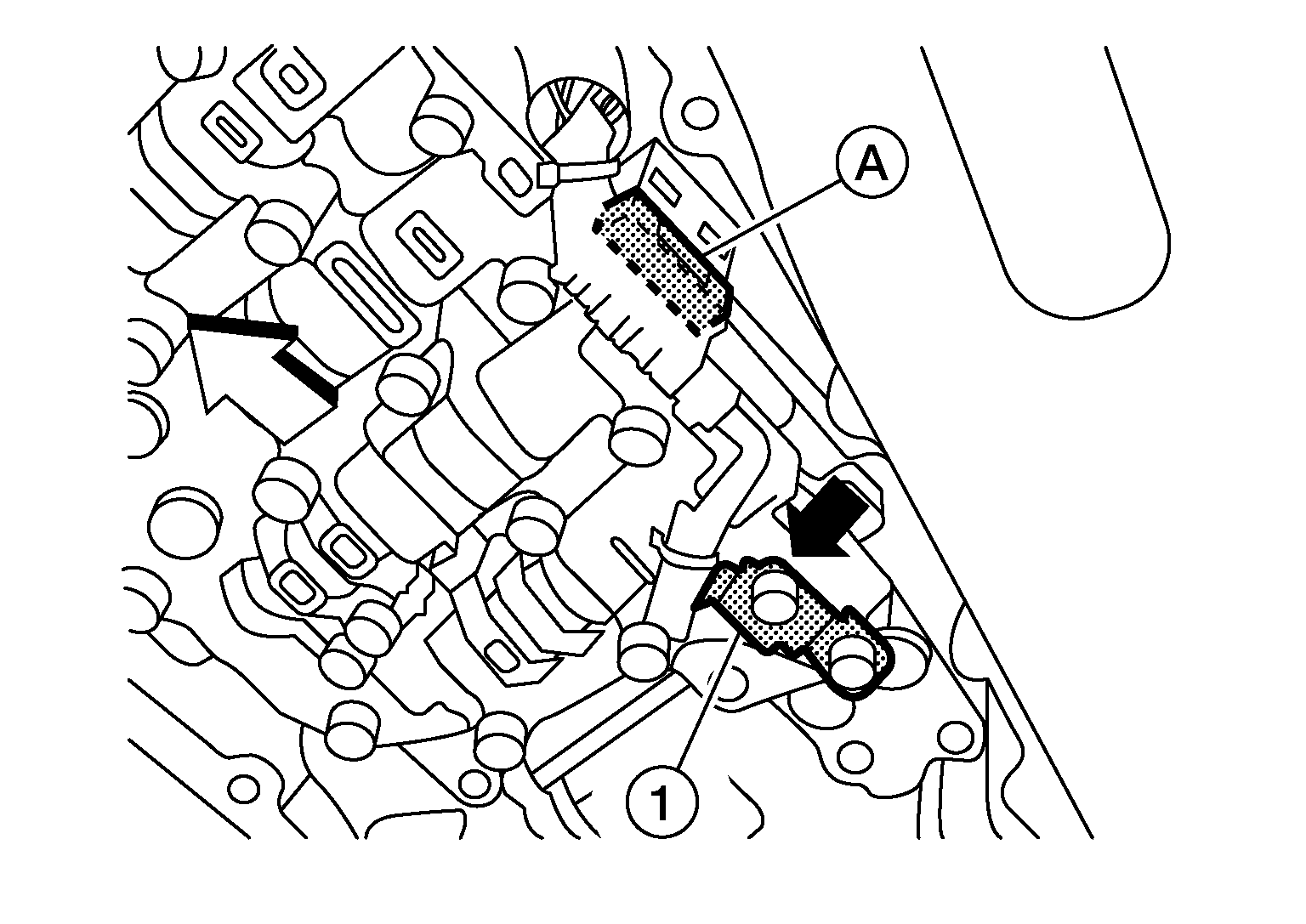

  9. Remove CVT fluid temperature sensor bracket bolt and remove the CVT fluid temperature sensor bracket (1).
    GNSAWDIA0033Z-033Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Bolt

    SYMBOL

    : Front

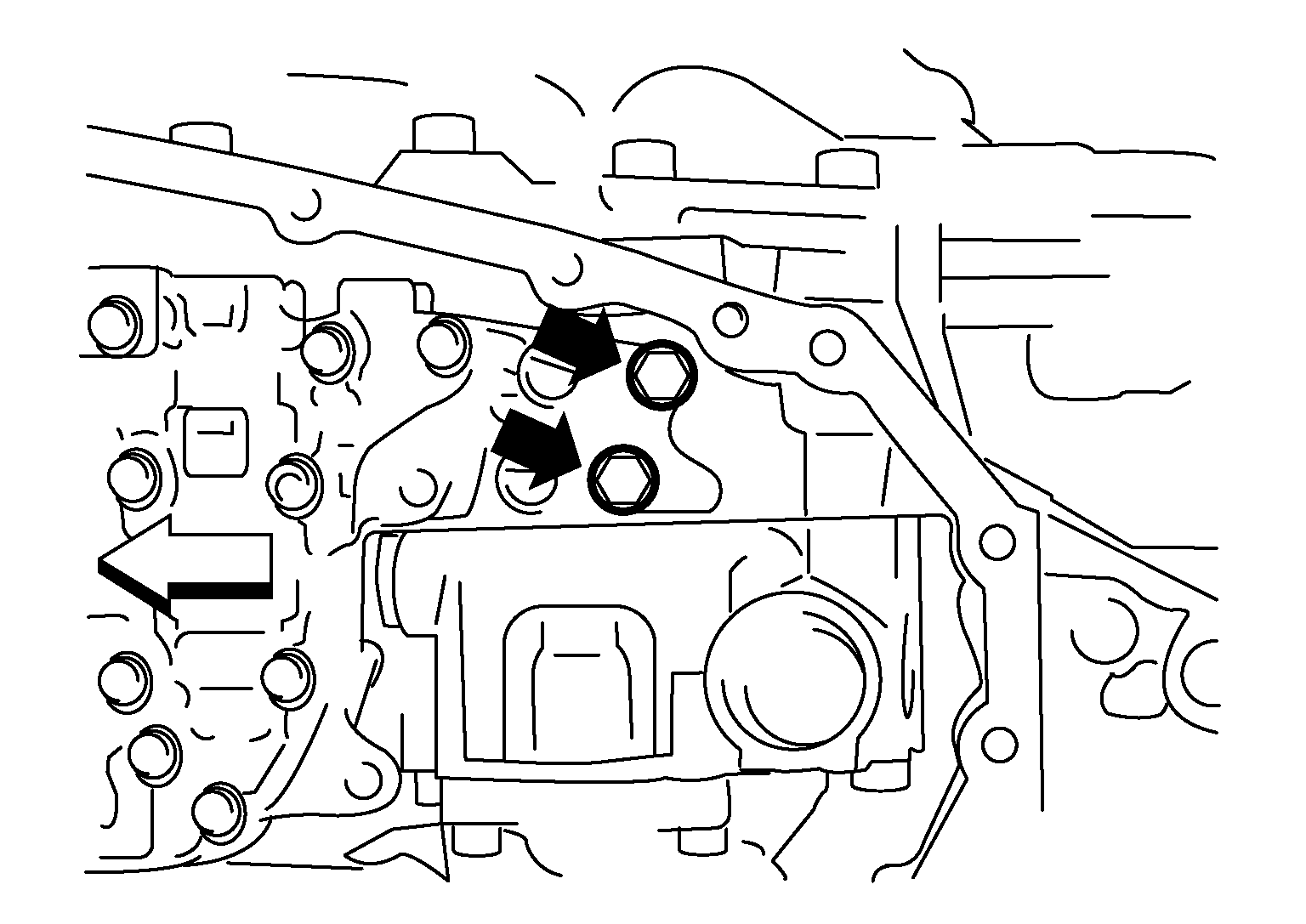

  10. Disconnect control valve harness connector (A).
  11. Remove bolts.
    GNSAWDIA0034Z-034Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

    SYMBOL

    : Bolt
  12. Remove the control valve bolts (A) and (B), and then remove the control valve from the transaxle case.
    GNSAWDIA1059Z-059Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
    CAUTION: Do not drop the control valve, ratio control valve and manual shaft.
    NOTE: Control valve bolt heads may be marked with a number "7". Bolts marked as "7" are the bolts that need to be removed in order to remove the control valve.
  13. Remove the lip seal (1) from the transaxle case.
    GNSJPDIA0661Z-661Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse lip seal.

    SYMBOL

    : Front
